LabeLase

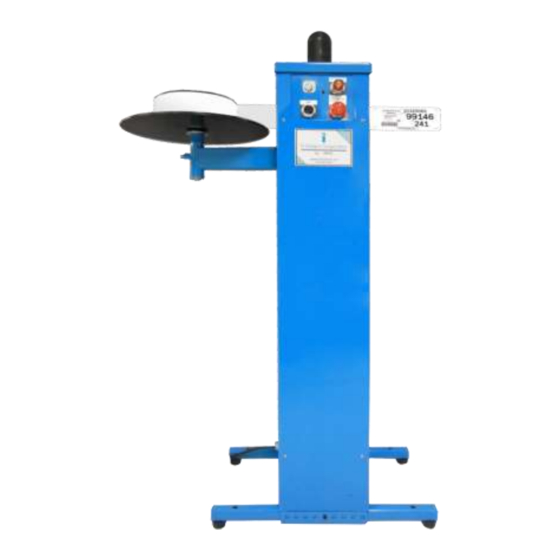

28XX Tag Printer
Basic Operations & Maintenance Manual
LL2860, LL2886, LL28100
Revision E
February 2021
INFOSIGHT CORPORATION
20700 U.S. Highway 23
P.O. Box 5000
Chillicothe, Ohio 45601 USA
+1.740.642.3600 Tel. (M-F 8am-5pm US Eastern Time Zone)
+1.800.401.0716 Emergency Service U.S. & Canada (outside normal business hours)
+1.740.642.4666 Emergency Service International (outside normal business hours)
+1.740.642.5001 Fax.
www.infosight.com
Advertisement
Table of Contents
Related Manuals for InfoSight LabeLase 28 Series
Summary of Contents for InfoSight LabeLase 28 Series

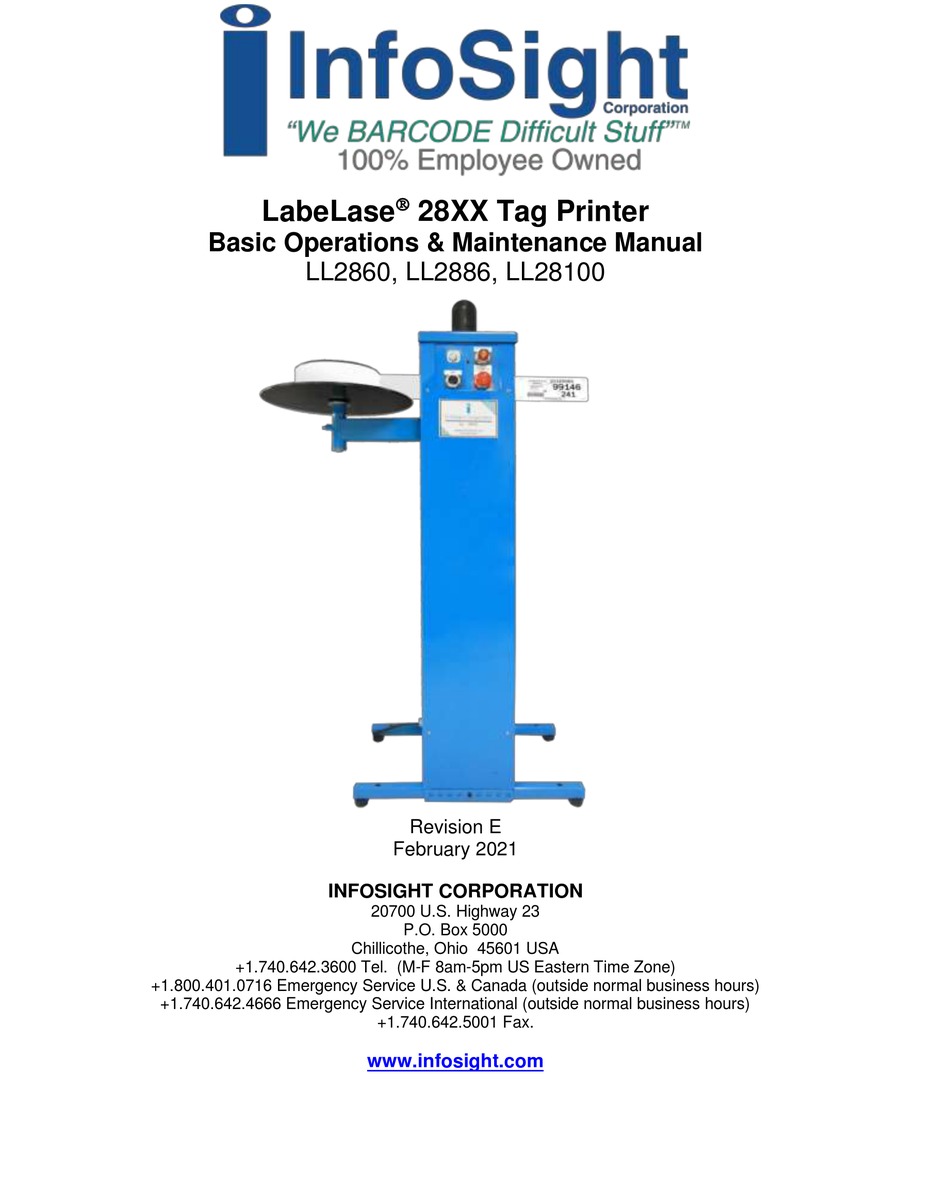

- Page 1 28XX Tag Printer Basic Operations & Maintenance Manual LL2860, LL2886, LL28100 Revision E February 2021 INFOSIGHT CORPORATION 20700 U.S. Highway 23 P.O. Box 5000 Chillicothe, Ohio 45601 USA +1.740.642.3600 Tel. (M-F 8am-5pm US Eastern Time Zone) +1.800.401.0716 Emergency Service U.S. & Canada (outside normal business hours) +1.740.642.4666 Emergency Service International (outside normal business hours)
- Page 2 This page intentionally left blank...
- Page 3 Corrections Laser Settings Table Added 60 Watt Laser Specifications Correct Block diagram 01/18/21 Revision E Remove old printer models no longer offered Update with currently offered printer models LL28XX Tag Printer Copyright © 2003-2021 InfoSight Corporation All Rights Reserved Page i...
- Page 4 (including but not limited to lost profits) arising out of, or relating to this manual or the information contained in it, even if INFOSIGHT CORPORATION has been advised, knew, or should have known of the possibility of such damages.
- Page 5 Never attempt to operate the Laser Tag Marker without the protective covers in place. Never attempt to override any of the safety interlocks on the tag printer. Never attempt to dismantle or repair the tag printer. In case of malfunction contact a Infosight service representative.
- Page 6 INFOSIGHT copyright notice. Additional copies may be made when authorized to do so in writing by INFOSIGHT. In addition to any other right of INFOSIGHT, INFOSIGHT has the right to terminate this license if the terms of this license are violated.
- Page 7 The LabeLase 28XX Tag Printer is fourth in the family of InfoSight laser tag markers. The LabeLase 28XX series contains many new features, including: a higher internal processor clock speed, a PC-driven interface and the ability to print multilingual fonts.
- Page 8 This page intentionally left blank. Page vi Copyright © 2003-2021 InfoSight Corporation All Rights Reserved LL28XX Tag Printer...
-
Page 9: Table Of Contents
Internal Laser Specifications (80 Watt) ............. 16 Internal Laser Specifications (100 Watt) ............17 LASER SPECIFICATIONS: .................. 17 DECLARATION OF CONFORMITY ..............18 ENGINEERING DRAWINGS ................20 LL28XX Tag Printer Copyright © 2003-2021 InfoSight Corporation All Rights Reserved Page vii... - Page 10 This page intentionally left blank. Page viii Copyright © 2003-2021 InfoSight Corporation All Rights Reserved LL28XX Tag Printer...
-
Page 11: System Startup
KB II 38-3 3/8" Kwik bolt Concrete Cast in place 3/8-16UNC 2" Concrete 3/8" x 2" Lag bolts Wood 3/8" x 4 " J bolts Steel Grating LL28XX Tag Printer Copyright © 2003-2021 InfoSight Corporation All Rights Reserved Page 1... -
Page 12: Connect Water Cooler To Printer
The cooler needs to be running when the printer is. It is the operator’s responsibility to ensure the cooler is running. Page 2 Copyright © 2003-2021 InfoSight Corporation All Rights Reserved LL28XX Tag Printer... -
Page 13: Startup Sequence
The default password for new installations is blank (no data, no spaces). A new password should be created before printer is commissioned for regular operator use. LL28XX Tag Printer Copyright © 2003-2021 InfoSight Corporation All Rights Reserved Page 3... -
Page 14: Loading New Tags
E-STOP button is returned to the OUT position by pulling red button. If necessary, tag stock can be manually fed into the printer by pressing the FEED button located above the large red E-STOP button. Page 4 Copyright © 2003-2021 InfoSight Corporation All Rights Reserved LL28XX Tag Printer... -
Page 15: Printing A Tag
For example, a single 3x3 (or 3x4, 3x6, etc) tag may be printed. If single printing of a 3x1 (76 x 25mm) tag is desired, a strip of at least 3 tags must be inserted in the side slot. LL28XX Tag Printer Copyright © 2003-2021 InfoSight Corporation All Rights Reserved Page 5... - Page 16 ❑ User-selectable download of message data from a host computer via RS-232, network TCP/IP, or network file transfer. A wide selection of communications protocols includes InfoSight Extended, emulation of Zebra and Intermec standard printers, and simple comma or tab-separated, flat-file formats.
-
Page 17: Printer Configuration & Laser Settings
Galvo End Marg Galvo Home Delay Galvo Offset Laser Speed Min Speed Max Speed Laser Off Tickle Laser Duty Cycle Num Lasers Tear Off Burn Loc 3.88 3.88 3.88 LL28XX Tag Printer Copyright © 2003-2021 InfoSight Corporation All Rights Reserved Page 7... -
Page 18: Cycle Time Considerations
1. If the graphic or logo must be re-sized to fit on the tag, use an external application such as MS PAINT to change the dimensions of the image and re-save the BMP file before importing into Producer™. Page 8 Copyright © 2003-2021 InfoSight Corporation All Rights Reserved LL28XX Tag Printer... -
Page 19: Basic Trouble Shooting
Reduce number of characters in barcode data. ❑ Use more efficient barcode symbology. ❑ Reduce barcode scale. Problem: Blank Tag ❑ No layout loaded ❑ Laser overheated LL28XX Tag Printer Copyright © 2003-2021 InfoSight Corporation All Rights Reserved Page 9... -
Page 20: Normal Maintenance & Servicing
Figure 1 Side of LL28XX Printer shown with filter and cover in place (Left); with the filter and cover removed (Middle); and the filter and cover set aside (Right) Page 10 Copyright © 2003-2021 InfoSight Corporation All Rights Reserved LL28XX Tag Printer... -
Page 21: Customer Service
After regular business hours, call: +1.800.401.0716 (USA or Canada) or +1.740.642.4666 (International). On-Site Service InfoSight Corporation can dispatch a Field Service Engineer to your facility to perform equipment start-up, repair, maintenance, and training. Service Contracts Periodic scheduled on-site maintenance, technical service and extended warranties can be arranged by contacting Customer Service at the number below. -
Page 22: Functional Block Diagram
XON / XOFF. Communications adapters such as USB to RS232 must support XON / XOFF. XON is DC1 CTL-Q or 11h or 17 decimal XOFF is DC3 CTL-S or 13h or 19 decimal Page 12 Copyright © 2003-2021 InfoSight Corporation All Rights Reserved LL28XX Tag Printer... -
Page 23: Recomended Spares For Ll28Xx
POWER-SUPPLY,LASER,30V,16A,CE MARKED, ROHS COMPLIANT ITM07243 SWITCH,KEYLOCK,SECURITY ITM01515 FUSE, TIME DELAY, 10Z, FNM10 Misc ITM10871 FILTER,REPLACEMENT,FOR ITM10870 GUARD,5/PK ITM01213 FAN,MUFFIN,120VAC,14W,2900RPM,112CFM ( Please Request quote for the entire spares list. ) LL28XX Tag Printer Copyright © 2003-2021 InfoSight Corporation All Rights Reserved Page 13... -
Page 24: Laser Safety
Qualified Laser Service/Safety Technician! Because of the Class 4 classification, InfoSight will provide such a person to be available to the end user of this marker. The nominal power output of the laser used is 60,80 or 100 watts, with a maximum peak power output of 110 watts. -
Page 25: Internal Laser Specifications (60 Watt)
Laser Safety The features above and precautions described above taken by InfoSight are in place with the safety of the user in mind. Should you have any questions or suggestions please do not hesitate to call. INTERNAL LASER SPECIFICATIONS (60 WATT) Laser Type.............. -
Page 26: Internal Laser Specifications (80 Watt)
Tickle pulse..............1.0 S (@ 5kHz) Thermal shutdown temperature ........140º F 2.7ºF, 60º C 1.5ºC Laser tube life expectancy ..........35,000 hrs. Laser shelf life (no use)........... 14 years Page 16 Copyright © 2003-2021 InfoSight Corporation All Rights Reserved LL28XX Tag Printer... -
Page 27: Internal Laser Specifications (100 Watt)
1.0 us @ 5 kHz Power Supply 30vdc @ 16/32 amps/10,25,50watt 48vdc @ 28 amps / 60/80/100 watt Laser Tube life expectancy >20,000 hours Thermal shutdown 50 degrees C LL28XX Tag Printer Copyright © 2003-2021 InfoSight Corporation All Rights Reserved Page 17... -
Page 28: Declaration Of Conformity
Standard(s) set forth in this document. InfoSight produces laser systems within one of two classes as identified and classified by the CDRH. These are Class I and Class IV. (see CDRH 21 CFR (J) 1040.1 - 1040 .5). End user of the equipment should be familiar with ANSI, CDRH and OSHA standards for radiation emitting devices as they apply to them also. - Page 29 Including Group and National differences as they apply for AU, CA, US, CH, JP, and KR • IEC 60825-1:2007 (2 Edition) Edward S. ONeal 2/15/2013 Chillicothe, Ohio LL28XX Tag Printer Copyright © 2003-2021 InfoSight Corporation All Rights Reserved Page 19...
-
Page 30: Engineering Drawings
ENGINEERING DRAWINGS Page 20 Copyright © 2003-2021 InfoSight Corporation All Rights Reserved LL28XX Tag Printer...
