Lightcloud LCCONTROL20/D10 Manual page 9

Setup & Installation
3
Labeling your Device
When installing devices, it's important to keep track of their Device IDs,
installation locations, panel/circuit #s, dimming function, and any additional
notes. To organize this information, use the Lightcloud Installer Application
(A) or Device Table (B).

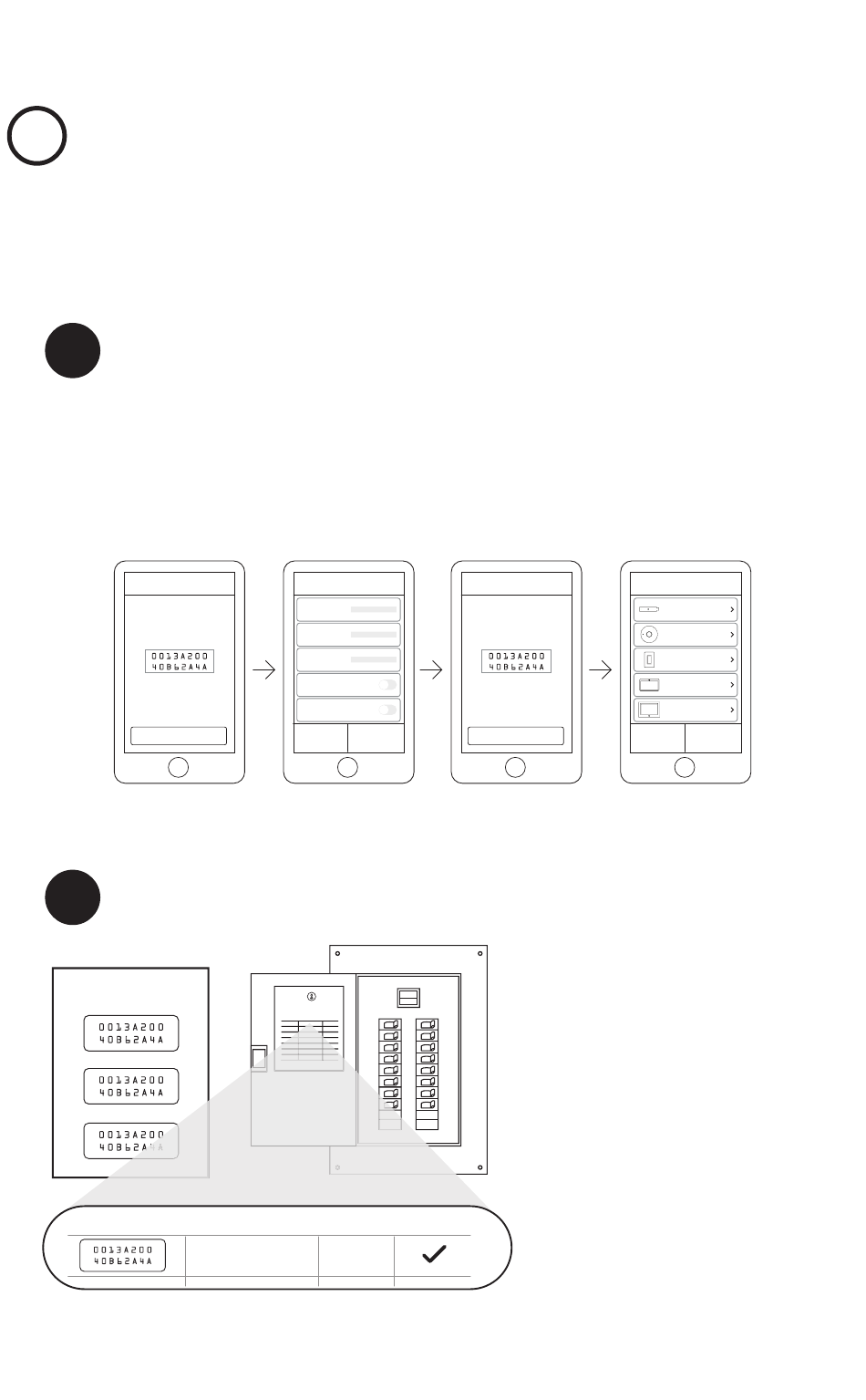

3a
Lightcloud Installer Application
Install the LC Installer Application: LC Installer is available for iOS & Android.
Scan & Install Lightcloud Devices: Scan each device and assign to a room.
It's recommended that each device is scanned just before or just after being
wired so no devices are missed. The more notes that are given, the easier it
is to commission the system.
Device Scanner
PLACE RECTANGLE TO FIT CODE ON LABEL
Enter Manually
Scan Device Code
Device Table
3b
C O N T R O L L E R D E V I C E I D s
1
2
3
DE V ICE ID
1
Send to RAB: Once all of the devices have been added and organized,
submit the information for commissioning.
Device Info
Device ID
0013A20040B62A4A
Location
Zone Name
Dimmable
Power Monitoring
Cancel
Enter Device
Information
Your Site Name
PA NE L /
ZO NE N A ME
CIRCUIT #
Front Desk 2
Device Scanner
Office
Office Lights
PLACE RECTANGLE TO FIT CODE ON LABEL
Save Enter Manually
Repeat for
Additional Devices
DIM MIN G
(cont'd)
Devices
Office Light - ID 0013A20040B62A4A
Controller
Office Light - ID 0013A20040B62A4B
Sensor
Office Light - ID 0013A20040B62A4C
Dimmer
Office Light - ID 0013A20040B62A4D
Daylight
Office Light - ID 0013A20040B62A4E
Touch
Send to RAB Add Device
Send to RAB
For setup and maintenance,
we provide two Lightcloud
Device Tables with the
Gateway: one that you can
attach to your panel and one
to hand off to a building
manager. Attach the Device
Identification stickers
included witheach device to
a row, then write in additional
information, such as Zone
name, Panel/Circuit Number,
and whether or not a zone
uses dimming.
