- Page 1 ® Luminaire Controller LCLC3/D10 WE ’R E HERE T O HELP : 1 (844) LIGHTCLOUD 1 (844) 54 4-4825 support@lightcloud.com...
-
Page 2: Product Features
Hello Lightcloud is a wireless lighting control system. The Lightcloud Luminaire Controller is a remotely controlled switching and dimming device that can be installed into luminaires. Product Features Wireless Control & Configuration Switching up to 3A 0-10V Dimming Power Monitoring... - Page 3 Contents Actuator Module, P/N 24586 1.5 in 3.7 in 1.3 in Radio Module, P/N 24572 2.0 in 2.0 in 1.0 in Wire Nuts Instruction Manual O-ring...
-
Page 4: Specifications & Ratings

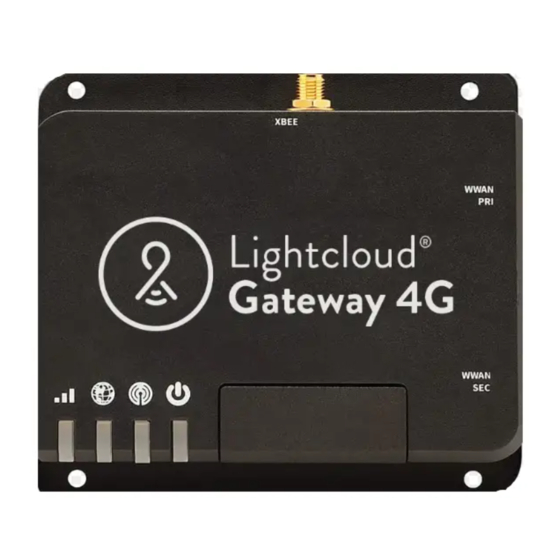

DAMP LOCATION OPERATING TEMPERATURE: -40ºC to +50ºC max temp What You Need Lightcloud Gateway A Lightcloud installation requires at least one Lightcloud Gateway to manage your devices. WE ’RE HERE TO HELP: 1 (844) LIGHTCLOUD or 1 (844) 544-4825 support@lightcloud.com... -
Page 5: Setup And Installation
Use these guidelines when installing devices: • If there is a clear line of sight between a Luminaire Controller and another Lightcloud device they can be placed up to 700 ft apart. • If a Luminaire Controller and another Lightcloud device are separated by ordinary drywall construction, try to keep them within 70 ft. - Page 6 Install the Luminaire Controller (For Luminaires Pre-Installed with the Luminaire Controller, Skip to Step 3) Fixture Installation with Actuator Module Inside If the interior of your luminaire can accommodate the dimen- sions of the actuator module, install the actuator module inside the housing, and attach the radio module to the outside of the housing via a knockout.
- Page 7 / RED LONG, BLACK ACTUATOR MODULAR CABLE INSIDE JUNCTION BOX INSIDE JUNCTION BOX RADIO 120-277 VAC Install Luminaire Install the luminaire with integrated Luminaire Controller as normal, allowing for any room to accommodate the external radio module of the LCLC3/D10.
- Page 8 When installing devices, it’s important to keep track of their De- vice IDs, installation locations, panel/circuit #s, dimming function, and any additional notes. To organize this information, use the Lightcloud Installer Application (A) or Device Table (B). Lightcloud Installer Application Install the LC Installer Application: LC Installer is available for iOS and Android.
-
Page 9: Device Table
Cancel Save Enter Manually Send Two Lightcloud Device Tables are provided with each Gateway: one that you can attach to your panel and one to hand off to a building Code Enter Device Information Repeat for Additional Devices manager. Attach the Device Identifi cation stickers included with... - Page 10 The device will automatically 2 - Acceptable signal continue trying to connect to a 1 - Unacceptable signal network in Setup Mode. Consult the “Finding a Location” section for more information Commission Your Devices Log on to www.lightcloud.com or call 1 (844) LIGHTCLOUD...
-
Page 11: Power Measurement
Functionality Configuration All configuration of Lightcloud products may be performed using the Lightcloud web Application, or by calling RAB. WE ’RE HERE TO HELP: 1 (844) LIGHTCLOUD or 1 (844) 544-4825 support@lightcloud.com Power Measurement he Lightcloud Luminaire Controller is capable of measuring the power usage of the attached luminaire. - Page 12 FCC Information: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This device has been tested and found to comply with the limits for Class B digital devices pursuant to Part 15 Subpart B, of the FCC rules.
- Page 13 It’s powerful and flexible, yet easy to use and install. Learn more at lightcloud.com 1 (844) LIGHTCLOUD 1 (844) 544-4825 support@lightcloud.com © 2022 RAB Lighting, Inc...
