Setup & Installation
Install your Lightcloud Controller
2

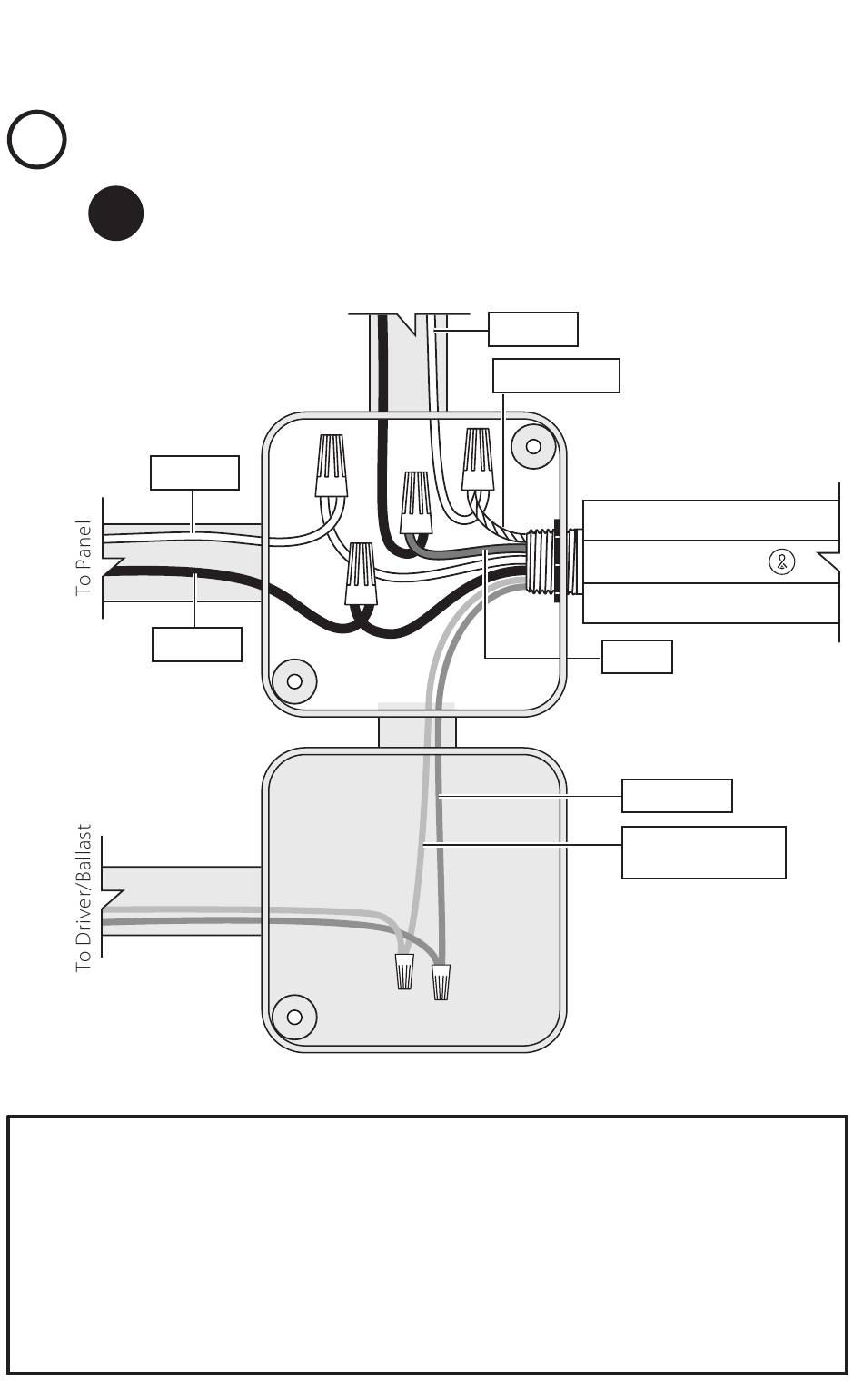

Install at a Junction Box (Indoor/Outdoor)
2a
WHITE
BLACK
0 - 10V DIMMING
0-10V is a common method of low-voltage control of dimmable drivers
and ballasts. Purple: 0-10V positive | Pink: 0-10V common
NOTE: The National Electrical Code requires that low-voltage wiring used in the same
enclosure as high-voltage wiring have an equal or better insulation rating. You may
need to complete your low-voltage wiring in another enclosure or use a partition.
To Load
WHITE
WHITE/RED
(cont'd)
™
Lightcloud
Controller
RED
PURPLE
PINK PINK
(0-10V DIMMING) (0-10V DIMMING)
