Summary of Contents for Lightcloud LCCONTROL/480/B
- Page 1 Welcome 347/480V Controller LCCONTROL/480 WE ’ RE HERE TO HELP: 1 (844) LIGHTCLOUD 1 (844) 544-4825 support@lightcloud.com...
-
Page 2: Product Features

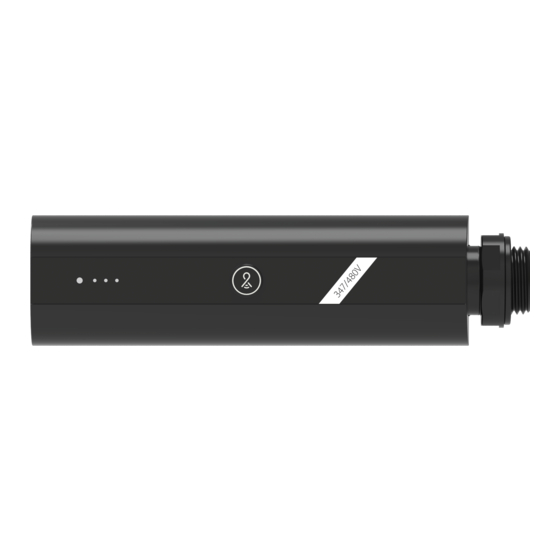

Hello The Lightcloud Controller is a remotely controlled switch and 0-10V dimming device. Product Features Wireless Control & Configuration Switching up to 2A 0-10V Dimming Power Monitoring... -
Page 3: Specifications
Contents Lightcloud Controller Lock Nut O-ring Instruction Manual Wire Nuts Specifications OPERATING TEMPERATURE PART NUMBER LCCONTROL/480 -40°C to +40°C INPUT OVERALL DIMENSIONS 347-480VAC, 50/60Hz 1.58" diameter, 5.90" length <2W(Standby) – 4W(Active) 1/2" NPT Mount, Male 16AWG pigtails MAXIMUM SWITCHED LOAD RATINGS... -
Page 4: What You Need
What You Need Lightcloud Gateway A Lightcloud installation requires at least one Lightcloud Gateway to manage your devices. WE ’ RE HERE TO HELP: 1 (844) LIGHTCLOUD or 1 (844) 544-4825 support@lightcloud.com... - Page 5 Wiring Load or Fixture PINK PINK (0-10V DIMMING) (0-10V DIMMING) PURPLE PURPLE BLACK/ BLACK/ WHITE WHITE TRIGGER TRIGGER STRIPED STRIPED SENSE SENSE (BROWN) (BROWN) BLACK BLACK 347/480 VAC...
-
Page 6: Setup And Installation
Find a Suitable Location Use these guidelines when installing devices: • If there is a clear line of sight between two Lightcloud devices, they can be placed up to 1000 feet apart. • If the two devices are separated by ordinary drywall construction, try to keep them within 100 ft. - Page 7 Setup & Installation (cont’d) Install your Lightcloud Controller Install at a Junction Box (Indoor/Outdoor) To Load TRIGGER SENSE (BROWN) NEUTRAL / PHASE B Lightcloud ™ Controller LINE / PHASE A PURPLE PINK PINK (0-10V DIMMING) (0-10V DIMMING) 0 - 10V DIMMING 0-10V is a common method of low-voltage control of dimmable drivers and ballasts.
- Page 8 PHASE B LINE / PHASE A Space and code allowing, you may install Lightcloud devices directly in your breaker box or lighting panel. Alternatively, break out lighting circuits and install Lightcloud devices in a separate trough. Controller requires constant, unswitched power.
- Page 9 Lightcloud Installer Application Install the LC Installer Application: LC Installer is available for iOS & Android. Scan & Install Lightcloud Devices: Scan each device and assign to a room. It’s recommended that each device is scanned just before or just after being wired so no devices are missed.
- Page 10 Power Up To add new devices to your Lightcloud network, call RAB at 1 (844) LIGHTCLOUD, or email us at support@lightcloud.com. Confirm Device Connectivity Confirm Status Indicator is Solid Green (see details below) DEVICE IDENTIFICATION BUTTON • Illuminated when device is powered •...
-
Page 11: Operating Modes
Operating Modes CONTROLLER: Provides switching and dimming for a single zone. REPEATER: Extends the Lightcloud mesh network without controlling a load. TRIGGER: Detect when an attached circuit is open or closed. For example, you could attach the Controller in Trigger mode to an existing occupancy sensor to allow your Lightcloud system to react to the sensor. - Page 12 POWER LOSS DETECTION: If mains power to the Controller is lost, the device will detect this and alert the Lightcloud application. EMERGENCY DEFAULT: If communication is lost, the Controller may optionally fall back to a specific state, such as turning the attached circuit on.
- Page 13 FCC Information: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This device has been tested and found to comply with the limits for Class A digital devices pursuant to Part 15A Subpart B, of the FCC rules.
- Page 14 Lightcloud is a commercial wireless lighting control system. It’s powerful and flexible, yet easy to use and install. Learn more at lightcloud.com 1 (844) LIGHTCLOUD 1 (844) 544-4825 support@lightcloud.com © 2022 RAB Lighting, Inc...
