We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES

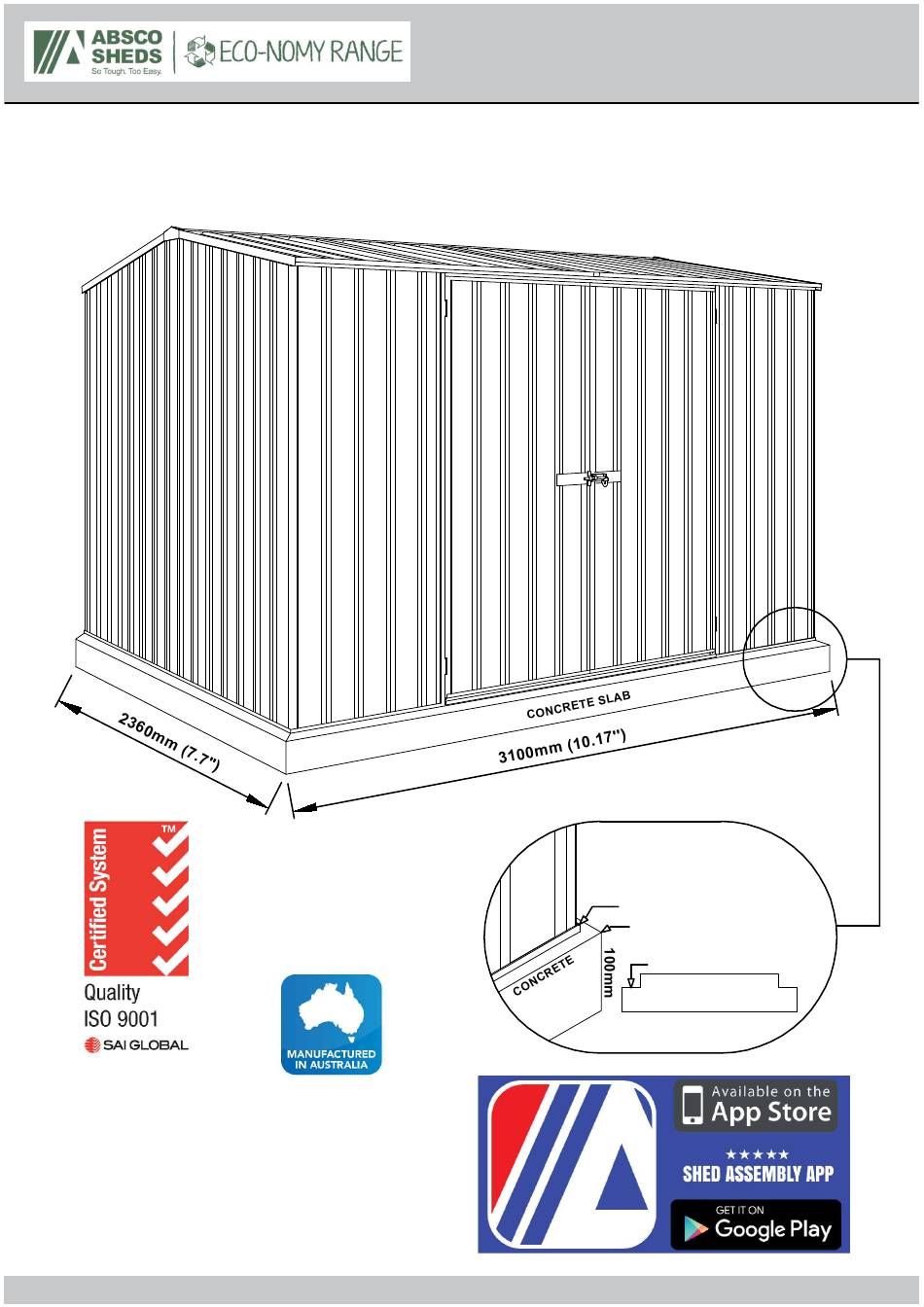

WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
ASSEMBLY INSTRUCTION MANUAL

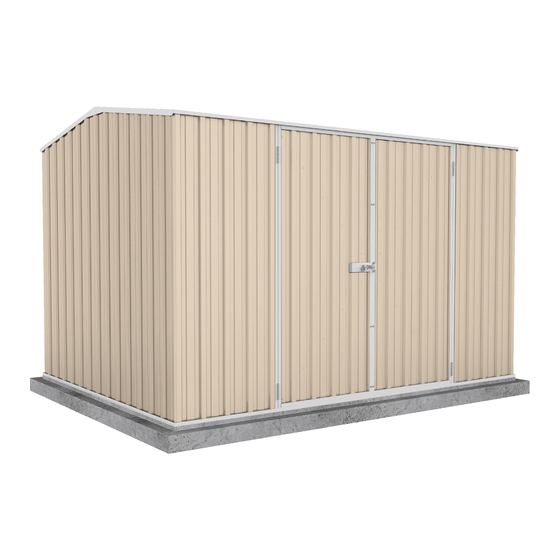

Absco Industries ECO
Shed Model: J30232GECOK
SHED MODEL: J30232GECOK
FRONT: 3.0m (9.84")
SIDE:
2.26m (7.41")
HEIGHT: 2.1m (6.88")
BOTTOM CHANNEL
REBATED EDGE
75mm WIDE REBATE
CONCRETE SLAB
23-11-2017
PAGE 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J30232GECOK and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS J30232GECOK

Summary of Contents for ABSCO SHEDS J30232GECOK

  • Page 1 Absco Industries ECO Shed Model: J30232GECOK FRONT: 3.0m (9.84") SIDE: 2.26m (7.41") HEIGHT: 2.1m (6.88") WHEN LAYING YOUR CONCRETE SLAB, ENSURE THERE IS A REBATED EDGE 25mm DEEP AROUND THE PERIMETER BOTTOM CHANNEL REBATED EDGE THIS WILL HELP WATER EGRESS...

  • Page 2: General Instructions

    Absco Industries ECO Shed Model: J30232GECOK GENERAL INSTRUCTIONS Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on pages three and four.
  • Page 3 Absco Industries ECO Shed Model: J30232GECOK COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION STEEL SHEET STEEL SHEET 1785mm X 773mm 1725mm X 773mm (70.3" X 30.4") (67.9" X 30.4") STEEL SHEET...

  • Page 4: Component Description

    Absco Industries ECO Shed Model: J30232GECOK COMPONENTS - SPLICED CHANNEL & RIDGE BEAM PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION 55AL 55AR CHANNEL CHANNEL L = 1496.5mm (58.9") L = 1496.5mm (58.9") 55CL 55CR CHANNEL CHANNEL L = 1496.5mm (58.9") L = 1496.5mm (58.9")
  • Page 5 Absco Industries ECO Shed Model: J30232GECOK FULL LENGTH CHANNELS & ACCESSORIES COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION JAMB L= 1785mm (70.3") JAMB L= 1120mm (44.1") LIP TRIM JAMB L= 1568mm (61.7") 1170mm (46.1") JAMB L= 1725mm (67.9") INSTRUCTIONS & FITTINGS PACKET...
  • Page 6 Absco Industries ECO Shed Model: J30232GECOK INSTRUCTIONS FOR JOINING SPLICED CHANNELS NOTE: THE TEXT MARKED ON ALL PARTS MUST BE SHOWN ON THE SAME SIDE AS EACH OTHER. JOIN>> JOIN>> JOIN>> <<JOIN STEP 1. STEP 2. Position the channels and the CSJ...
  • Page 7 Absco Industries ECO Shed Model: J30232GECOK STEP 1. PRE-ASSEMBLY OF SPLICED CHANNELS NOTE: JOIN TOGETHER 20 X CHANNEL SECTIONS USING 10 X CHANNEL JOINERS (PART CSJ) NOTE: SOME CHANNELS HAVE 2 x 81A HOLES IN THEM - YOU WILL NEED...
  • Page 8 Absco Industries ECO Shed Model: J30232GECOK INSTRUCTIONS FOR JOINING SPLICED RIDGE BEAM STAGE 1: PUSH RIDGE BEAMS TOGETHER, MAKE SURE THERE IS A 50mm OVERLAP OF THE RIDGE CAP STAGE 2: INSERT RIDGE CAP JOINER INTO CONNECTED RIDGE CAPS. MAKE SURE JOINER HAS 225mm IN EACH RIDGE CAP.
  • Page 9 Absco Industries ECO Shed Model: J30232GECOK STEP 2. PRE-ASSEMBLY OF SPLICED RIDGE BEAM QTY. = 1 HEX HD DRIVER BIT QTY. = 8 SELF DRILLING TEK SCREW WITH NEOPRENE WASHER RIDGE BEAM 1521mm QTY. = 2 PARTS 97AL & 97AR QTY.
  • Page 10 Absco Industries ECO Shed Model: J30232GECOK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J30232GECOK 23-11-2017 PAGE 10...
  • Page 11 Absco Industries ECO Shed Model: J30232GECOK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J30232GECOK 23-11-2017 PAGE 11...
  • Page 12 Absco Industries ECO Shed Model: J30232GECOK ABSCO ASSEMBLY INTRODUCTION The snaptite assembly system locks most perimeter channels to all roof and wall sheets without the need for tools and fasteners. To pre-assemble the four wall panels and two roof panels, the perimeter...

  • Page 13: Door Panel Assembly

    Absco Industries ECO Shed Model: J30232GECOK DOOR PANEL ASSEMBLY ALL VERTICAL DOOR CHANNELS ARE INSTALLED IN THE REVERSE DIRECTION IN COMPARISON TO HORIZONTAL DOOR CHANNELS 20mm FLANGE 15mm FLANGE FOUR HOLE SET FOR PADBOLT CONNECTION ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL...

  • Page 14: Rear Panel Assembly

    Absco Industries ECO Shed Model: J30232GECOK REAR PANEL ASSEMBLY SIDE PANEL ASSEMBLY (2 Required) ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J30232GECOK 23-11-2017 PAGE 14...
  • Page 15 Absco Industries ECO Shed Model: J30232GECOK ROOF PANEL ASSEMBLY (2 Required) 2 x PRE-PUNCHED HOLES TO THIS END OF EACH SHEET WITH PART NO. 81A FITTED ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J30232GECOK 23-11-2017 PAGE 15...

  • Page 16: Front Panel Assembly

    Absco Industries ECO Shed Model: J30232GECOK FRONT PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J30232GECOK 23-11-2017 PAGE 16...
  • Page 17 Absco Industries ECO Shed Model: J30232GECOK DOOR PANEL ASSEMBLY NOTE: Nuts and bolts (supplied) may be used instead of pop rivets (supplied) by simply enlarging the hinge hole sets in the jamb using a 4mm drill bit NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment.
  • Page 18 Absco Industries ECO Shed Model: J30232GECOK PANEL CONSTRUCTION NOTE: Take care to ensure that both front and rear wall panels are not positioned upside down. the top channel of each panel is pre-punched for attaching roof sheets to, the bottom channels are not.
  • Page 19 Absco Industries ECO Shed Model: J30232GECOK ROOF CONSTRUCTION Secure peak brace Move the other roof panel into position and secure to ridge beam and Slide the roof panel into position, and roof panel with one peak brace to ridge beam...
  • Page 20 Absco Industries ECO Shed Model: J30232GECOK FINAL CONSTRUCTION Bend the top and bottom flanges as shown, then hook the bottom flanges under the top channel and screw the top flanges for both as shown gable caps ANCHORING OF SHED LOCATION OF 12 CONCRETE ANCHORS BOLT &...
  • Page 21 AUSTRALIA PRODUCT WARRANTY AGAINST DEFECTS Congratulations on your purchase of an ABSCO SHED ABSCO SHEDS, including garden sheds, garden beds, aviaries, storage units, garages, awnings and carports are made using high quality Australian made steel. We are pleased to advise we warrant that the steel coating will not rust, crack, flake peel or blister for 15 years from date of purchase, when installed within Australia.
  • Page 22 ABSCO SHEDS include garden sheds, garden beds, storage units, aviaries, garages, awnings and carports. ABSCO SHEDS are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fixings etc., may exhibit minor deformations which may allow some water entry.
