ABSCO SHEDS 30292HK Manual

Highlander shed
Hide thumbs Also See for 30292HK:

Advertisement

Quick Links

Download this manual
AU: 1800 029 70 1
NZ: 0800 466 444
For construction in non-cyclonic areas
Wind rating: N2 as per AS4055-2012.
If you require a higher wind rating please contact
us: admin@absco.com.au or 1800 029 701
MANUFACTURED
IN AUSTRALIA
SNAPTiTE
Assembly
Absco Industries
Assembly Instruction Manual

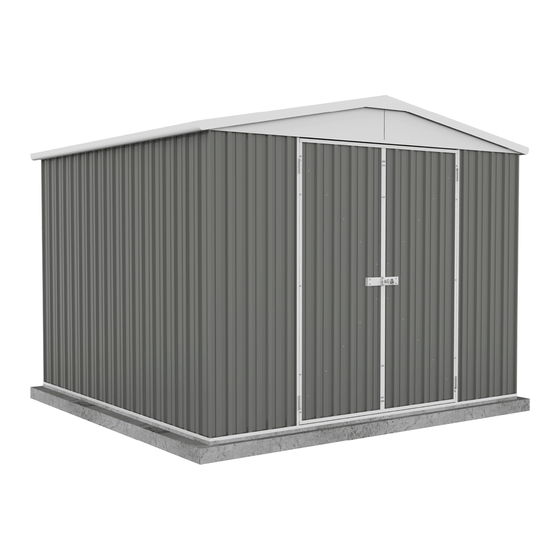

ABSCO HIGHLANDER SHED
MODEL: 30292HK
3.00mW x 2.92mD x 2.30mH
admin@absco.com.au
www.abscosheds.com.au

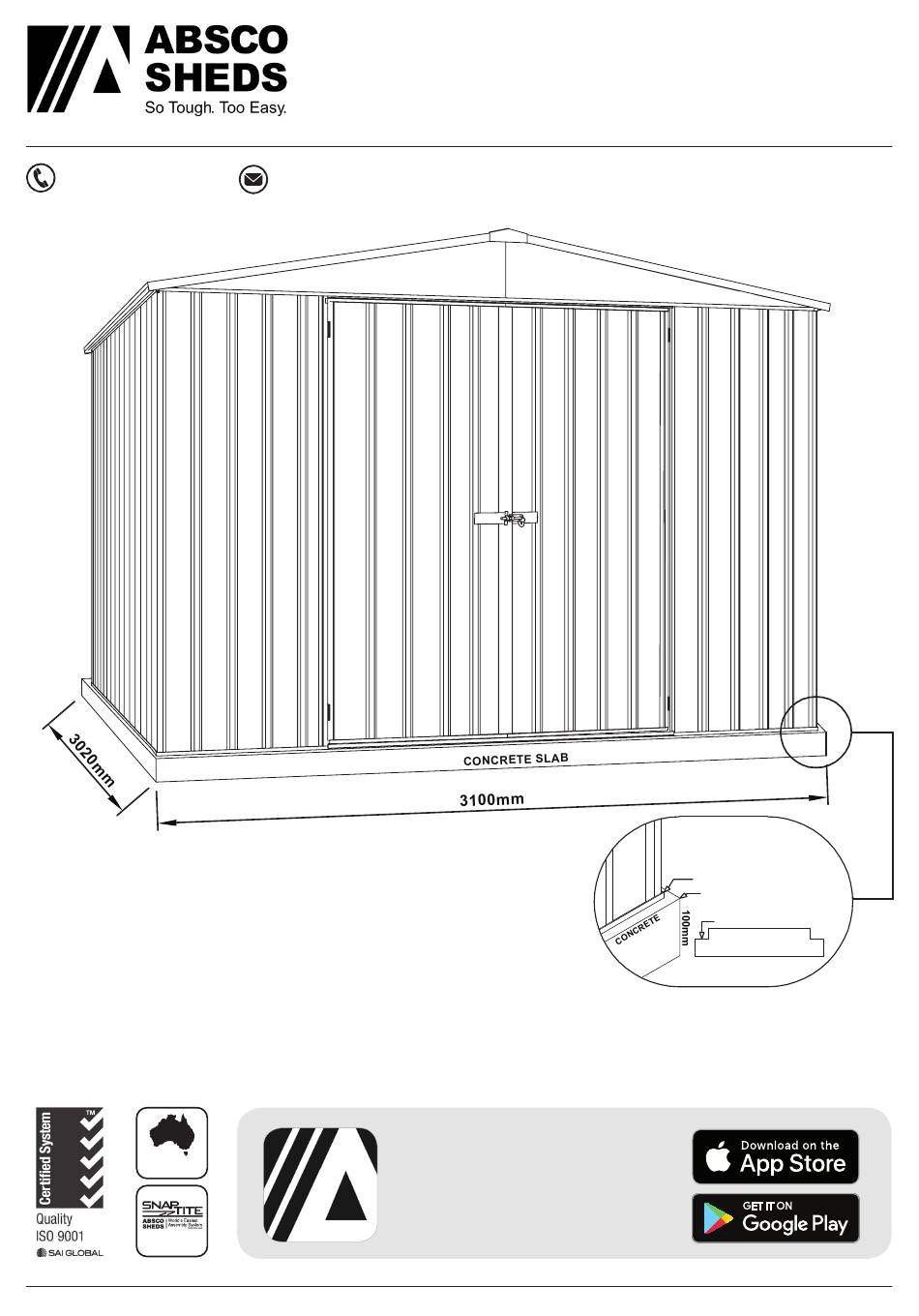

WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
feedback@absco.com.au
Download the Absco
ABSCO INDUSTRIES
ASSEMBLY INSTRUCTION MANUAL
Sheds Assembly App
for instructional videos
Absco Industries
Premier Shed Model: 23151GK
When laying concrete slab, ensure there
is a rebated edge 25mm deep around
the perimeter. This will help water egress
from the base of the shed.
SHED MODEL: 23151GK
Model: 30292HK
04/09/2018
FRONT: 2.26m
SIDE:
1.52m
HEIGHT: 1.95m
BOTTOM CHANNEL
REBATED EDGE
75mm WIDE REBATE
CONCRETE SLAB
21-11-2017
1.2
PAGE 01
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 30292HK and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS 30292HK

Summary of Contents for ABSCO SHEDS 30292HK

  • Page 1 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH AU: 1800 029 70 1 admin@absco.com.au NZ: 0800 466 444 www.abscosheds.com.au Absco Industries Premier Shed Model: 23151GK FRONT: 2.26m SIDE: 1.52m HEIGHT: 1.95m WHEN LAYING YOUR CONCRETE SLAB, ENSURE THERE IS A...
  • Page 2 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH GENERAL INSTRUCTIONS • Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. • Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on "COMPONENTS PACKING LIST"...
  • Page 3 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH COMPONENT PACKING LIST Check off all components. MAIN PACK CARTON (PACK 1 OF 2) COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION STEEL SHEET STEEL SHEET 2034mm X 773mm 1974mm X 773mm...

  • Page 4: Channel Set

    ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH COMPONENT PACKING LIST CHANNEL SET COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION 77AL 77AR CHANNEL CHANNEL L = 1496.5mm L = 1496.5mm 55CL 55CR CHANNEL CHANNEL L = 1496.5mm L = 1496.5mm...
  • Page 5 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH COMPONENT PACKING LIST CHANNEL SET (CONTINUED) PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION Part No. Here Part No. Here JAMB L= 1568mm JAMB L= 1974mm Part No. Here LIP TRIM L= 1546mm JAMB L= 1120mm Part No.
  • Page 6 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH COMPONENT PACKING LIST HIGH FRONT FRAME PACK (PACK 2 OF 2) PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION C2300 K0285 CHANNEL L = 2300mm CHANNEL L = 285mm N2070...
  • Page 7 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
  • Page 8 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH Guide on Joining Spliced Channels The text marked on all parts must be shown on the same side as each other JOIN>> JOIN>> <<JOIN JOIN>> Step 1. Step 2. Position the channels and the...
  • Page 9 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH PRE-ASSEMBLY OF SPLICED CHANNELS STEP 1 Join together 20 x channel sections using 10 x channel joiners (Part CSJ) NOTE: Some channels may have holes in them - You will need to redrill holes where CSJ joining channel covers them.
  • Page 10 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH Guide on Joining a Spliced Ridge Beam Follow these three steps to assemble a ridge beam. ZARSP 225mm 50mm Step 1. NOTE. Step 2. Place two ridge beams as There is a 50mm overlap of the Use the ZARSP to connect at shown and push them together.
  • Page 11 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH PRE-ASSEMBLY OF SPLICED RIDGE BEAM STEP 2 ZARSP = 1x 97A 1x 97AL 1x 97AR Absco Industries Assembly Instruction Manual Model: 30292HK 04/09/2018...
  • Page 12 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH OVERVIEW OF ROOF COMPONENTS Absco Industries Assembly Instruction Manual Model: 30292HK 04/09/2018...
  • Page 13 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH OVERVIEW OF WALL COMPONENTS Absco Industries Assembly Instruction Manual Model: 30292HK 04/09/2018...
  • Page 14 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH ROOF PANEL ASSEMBLY STEP 3 2 required. Fit 81A to edge of sheet with pre- punched holes. Absco Industries Assembly Instruction Manual Model: 30292HK 04/09/2018...

  • Page 15: Side Panel Assembly

    ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH SIDE PANEL ASSEMBLY STEP 4 2 required. Small pan Small pan Absco Industries Assembly Instruction Manual Model: 30292HK 04/09/2018...

  • Page 16: Front Panel Assembly

    ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH FRONT PANEL ASSEMBLY STEP 5 1 required. Absco Industries Assembly Instruction Manual Model: 30292HK 04/09/2018...
  • Page 17 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH FRONT PANEL ASSEMBLY STEP 6 DOUBLE DOOR 1 required. Vertical door channels are installed in the opposite orientation compared to the horizontal door channels. Long Short fl ange fl ange of...

  • Page 18: Door Panel Assembly

    ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH DOOR PANEL ASSEMBLY STEP 7 Nuts and bolts may be used instead of pop rivets by drilling out hinge holes using a 4mm drill bit. Both are supplied. The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment, position each hasp centrally over the padbolt shaft and drill 3mm holes and secure with screws.

  • Page 19: End Panel Assembly

    ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH END PANEL ASSEMBLY STEP 8 1 required. Outside of shed. Inside of shed. Turn the panel over. Fit the two large gables (16L & 16R) to the inside face of...
  • Page 20 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH HIGH FRONT FRAME ASSEMBLY STEP 9 STEP 1 of 2 16mm SELF DRILLING TEK SCREWS USE FIT THE CHANNELS WHICH FORM THE BOXED SECTIONS JOIN PART NUMBERS TOGETHER WITH THE SMALLER...
  • Page 21 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH HIGH FRONT FRAME ASSEMBLY STEP 2 of 2. FIT ONE 100mm CHANNEL SECTION (C0100) TO BOX THE BASE OF EACH OUTSIDE LEG AS SHOWN. THESE WILL LATER BE USED FOR SECURING THE FRAME TO THE CONCRETE SLAB.
  • Page 22 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 1. Draw pattern on the concrete in accordance with the dimensions detailed in the assembly instructions. Absco Industries Assembly Instruction Manual Model: 30292HK...
  • Page 23 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 2. Understand where components are to be positioned. Absco Industries Assembly Instruction Manual Model: 30292HK 04/09/2018...
  • Page 24 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 3. Join C0100 to C2034 Absco Industries Assembly Instruction Manual Model: 30292HK 04/09/2018...
  • Page 25 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 4. Join C2034 to M1484 Absco Industries Assembly Instruction Manual Model: 30292HK 04/09/2018...
  • Page 26 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 5. Join K0285 to C2034 & N2070. Absco Industries Assembly Instruction Manual Model: 30292HK 04/09/2018...
  • Page 27 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 6. Fit mulitpurpose brackets. Absco Industries Assembly Instruction Manual Model: 30292HK 04/09/2018...
  • Page 28 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 7. Assemble the C0240 & C2300 sections. Absco Industries Assembly Instruction Manual Model: 30292HK 04/09/2018...
  • Page 29 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 8. Join all sections together. Absco Industries Assembly Instruction Manual Model: 30292HK 04/09/2018...
  • Page 30 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 9. Turn over frame and repeat steps 4 to 8. Absco Industries Assembly Instruction Manual Model: 30292HK 04/09/2018...
  • Page 31 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH HIGH FRONT FRAME ASSEMBLY SUPPORT PHOTOS STEP 10. Fully assembled front frame. Absco Industries Assembly Instruction Manual Model: 30292HK 04/09/2018...
  • Page 32 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH HIGH FRONT FRAME DETAILS Recommended slab dimensions - 3100mm x 3020mm External wall dimensions - 3000mm x 2920mm Internal wall dimensions - 2960mm x 2880mm 70mm 2870mm 80mm FIG 8A...
  • Page 33 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH PANEL CONSTRUCTION STEP 10 NOTE: Take care to ensure that all wall panels are not upside down. The top channels of each panel are pre-punched for attaching roof sheeting. The base channels are not.
  • Page 34 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH INSIDE VIEW ROOF CONSTRUCTION STEP 11 STEP 1. STEP 2. Slide the roof panels into position and Secure ridge beam to secure with only one screw in each gable sections with two corner at this stage.
  • Page 35 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH FINAL CONSTRUCTION STEP 12 Bend the top and bottom flanges as shown, then hook the bottom flanges under the top channel and screw top to the ridge beam with two screws.
  • Page 36 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH Absco Large Gable Roof Shed Notes General • 1.G This instruction manual shall be read in conjunction with other consultants drawings, specifi cations and written instructions provided by Absco and/or their representatives.
  • Page 37 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH Absco Large Gable Roof Shed Notes Steelwork • 1.S All structural steelwork shall have a corrosion protection system applied consistent with AS/NZS 2312- 2002. • 2.S All structural steelwork detailed within this installation manual shall be minimum Grade 550 for roll formed sections (including roof and wall sheeting and portal frame members) and Grade 250 for angle sections.
  • Page 38 ABSCO HIGHLANDER SHED MODEL: 30292HK 3.00mW x 2.92mD x 2.30mH Absco Large Gable Roof Shed Notes Supporting Slab and Foundations • 1.F The supporting slab foundation for the garden shed shall be of a minimum size indicated on the installation manual.
  • Page 39 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
  • Page 40 Lifetime Warranty Statement This warranty against defects is given by: Absco Industries (ABN: 77 869 708 678) Address: PO Box 119 Acacia Ridge QLD 4110 Ph: 1800 029 701 Fax: 07 3344 1191 Email: admin@absco.com.au Date of issue: 19 December 2018 Details of Manufacturer’s Warranty This product comes with a Lifetime structural warranty from the date of purchase.
  • Page 41 IMPORTANT 1. Manufacturer’s Disclosure This warranty against defects shall not apply in the following situations: A) Where the product is not assembled in accordance with the instructions provided in the product kit; B) Where the product is used to store corrosive materials such as fertilizer, chlorine etc; C) The warranty does NOT cover damage caused by storms, wind, rain, snow or poor foundations;...
