Summary of Contents for ABSCO SHEDS Premier J30232GK
Page 1

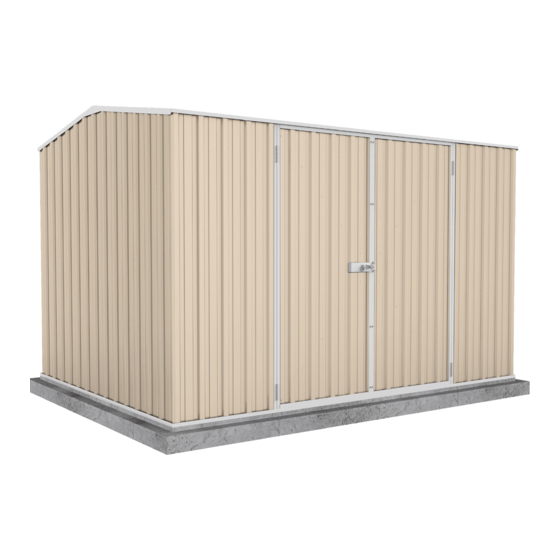

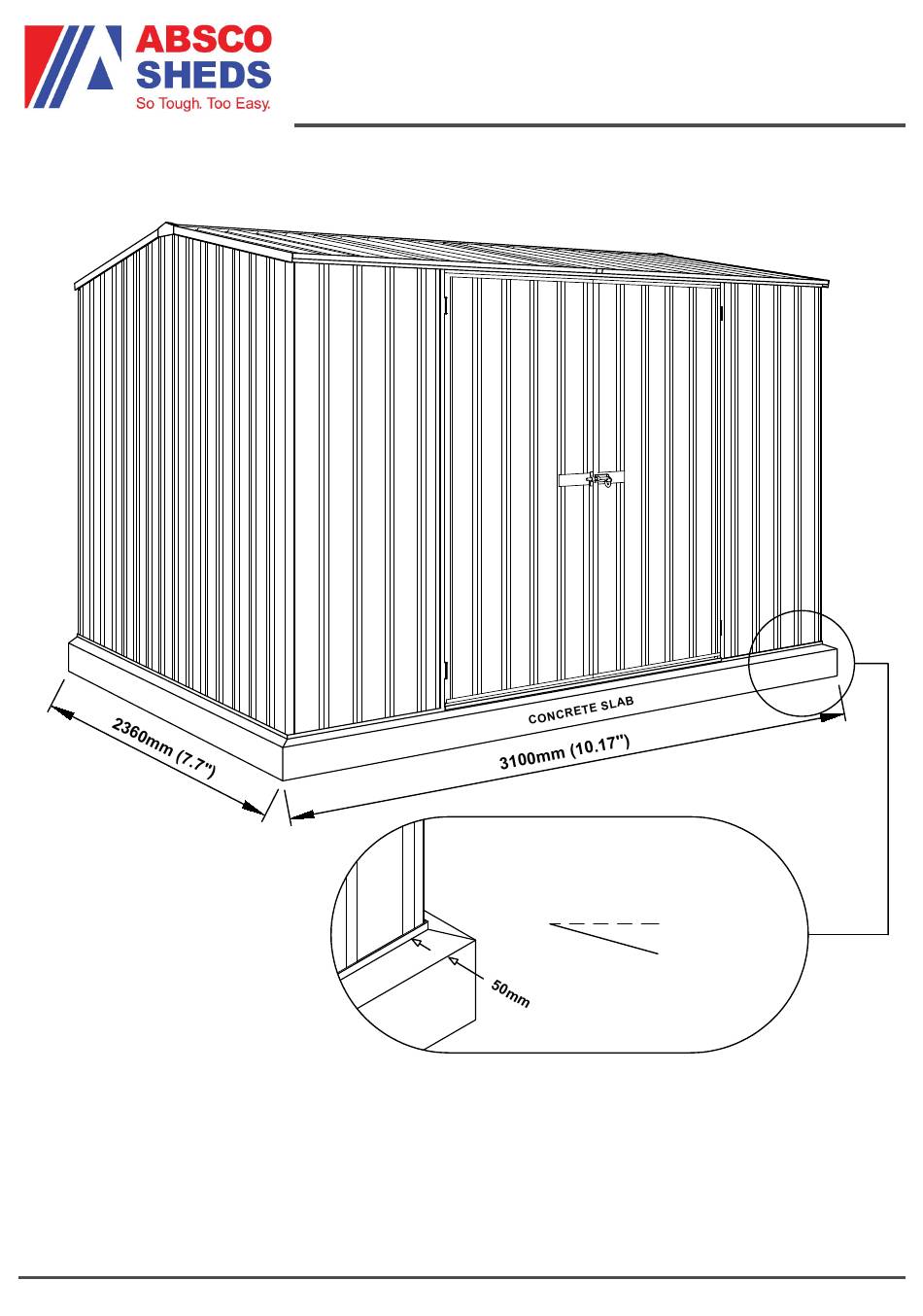

Premier Garden Shed Assembly Instructions Model: J30232GK WHEN LAYING YOUR CONCRETE FRONT: 3.0m (9.84") SLAB, CHAMFER THE 50mm EDGES DOWNWARDS BY 10mm (0.39") SIDE: 2.26m (7.41") 50mm (1.96") HEIGHT: 2.1m (6.88") 10mm (0.39") THIS WILL ENSURE THAT WATER RUN OFF IS KEPT CLEAR FROM YOUR SHED We thank you for choosing an Australian made shed.
Premier Garden Shed - Model: J30232GK GENERAL INSTRUCTIONS · Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. · Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on pages three and four.
Page 3
Premier Garden Shed - Model: J30232GK COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION STEEL SHEET 1785mm X 773mm (70.3" X 30.4") JAMB L= 1785mm (70.3") STEEL SHEET 1785mm X 773mm (70.3" X 30.4") JAMB L= 1568mm (61.7") STEEL SHEET 1725mm X 773mm...
Page 4
Premier Garden Shed - Model: J30232GK COMPONENTS - SPLICED CHANNEL & RIDGE BEAM PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION ZARSP CHANNEL JOINER RIDGE BEAM JOINER L= 200mm (7.9") L: 450mm (17.7") ARE TO BE THESE COMPONENTS TO THESE COMPONENTS JOINED 55AL 55AR...
Page 5
Premier Garden Shed - Model: J30232GK FULL LENGTH CHANNELS & ACCESSORIES COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION CHANNEL CHANNEL L = 1568mm (61.7") L = 1143mm (45.0") CHANNEL WITH HINGES CHANNEL L = 1725mm (67.9") L = 1143mm (45.0") CHANNEL CHANNEL L = 1725mm (67.9")
Page 6
Premier Garden Shed - Model: J30232GK INSTRUCTIONS FOR JOINING SPLICED CHANNELS NOTE: THE TEXT MARKED ON ALL PARTS MUST BE SHOWN ON THE SAME SIDE AS EACH OTHER. JOIN>> JOIN>> JOIN>> <<JOIN STEP 1. STEP 2. Position the channels and the CSJ Join the first channel to the CSJ by inserting the center joiner channel so the center of the of the CSJ (on an angle) to the end of the channel...
Page 7
Premier Garden Shed - Model: J30232GK STEP 1. PRE-ASSEMBLY OF SPLICED CHANNELS NOTE: JOIN TOGETHER 20 X CHANNEL SECTIONS USING 10 X CHANNEL JOINERS (PART CSJ) NOTE: SOME CHANNELS HAVE 2 x 81A HOLES IN THEM - YOU WILL NEED TO RE-DRILL HOLES ON ANY CHANNEL WHERE THE CSJ JOINING CHANNEL COVERS...
Page 8
Premier Garden Shed - Model: J30232GK INSTRUCTIONS FOR JOINING SPLICED RIDGE BEAM STAGE 1: PUSH RIDGE BEAMS TOGETHER, MAKE SURE THERE IS A 50mm OVERLAP OF THE RIDGE CAP STAGE 2: INSERT RIDGE CAP JOINER INTO CONNECTED RIDGE CAPS. MAKE SURE JOINER HAS 225mm IN EACH RIDGE CAP. STAGE 3: TURN RIDGE CAP OVER AND MEASURE 250mm FROM THE END OF EACH RIDGE CAP.
Page 9
Premier Garden Shed - Model: J30232GK STEP 2. PRE-ASSEMBLY OF SPLICED RIDGE BEAM QTY. = 1 TEK SCREW DRIVER BIT QTY. = 8 SELF DRILLING TEK SCREW RIDGE BEAM 1521mm (59.9") QTY. = 2 PARTS 97AL & 97AR QTY. = 1 PART ZARSP - 450mm (17.7") LONG ZARSP THE TOP SECTIONS OF...
Page 12
Premier Garden Shed - Model: J30232GK ABSCO ASSEMBLY INTRODUCTION The snap-tite assembly system locks most perimeter channels to all roof and wall sheets without the need for tools and fasteners . To pre-assemble the four wall panels and two roof panels, the perimeter channels are secured to the top and bottom of each panel using the snaptite system, as detailed on the...
Page 15
Premier Garden Shed - Model: J30232GK ROOF PANEL ASSEMBLY (2 Required) 2 x PRE-PUNCHED HOLES TO THIS END OF EACH SHEET WITH PART NO. 81A FITTED ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232GK 27/04/16 PAGE 15...
Premier Garden Shed - Model: J30232GK FRONT PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232GK 27/04/16 PAGE 16...
Page 17
Premier Garden Shed - Model: J30232GK DOOR PANEL ASSEMBLY NOTE: Nuts and bolts (supplied) may be used instead of pop rivets (supplied) by simply enlarging the hinge hole sets in the jamb using a 4mm drill bit NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment.
Page 18
Premier Garden Shed - Model: J30232GK PANEL CONSTRUCTION NOTE: Take care to ensure that both front and rear wall panels are not positioned upside down. the top channel of each panel is pre-punched for attaching roof sheets to, the bottom channels are not. Side wall panel channels fit into the notched front and rear Channel type 60a this end...
Page 19
Premier Garden Shed - Model: J30232GK ROOF CONSTRUCTION Secure peak brace Move the other roof panel to ridge beam and into position and secure peak brace to ridge beam Slide the roof panel into position, and roof panel with one screw at each end and roof panel with one secure with one screw at each corner...
Page 20
Premier Garden Shed - Model: J30232GK FINAL CONSTRUCTION Bend the top and bottom flanges as shown, then hook the bottom flanges under the top channel and screw the top flanges for both as shown gable caps ANCHORING OF SHED LOCATION OF 12 CONCRETE ANCHORS BOLT &...
Page 21
DEFECTS Congratulations on your purchase of an ABSCO SHED ABSCO SHEDS, including garden sheds, garden beds, aviaries, storage units, garages, awnings and carports are made using high quality Australian made steel. We are pleased to advise we warrant that the steel coating will not rust, crack, flake peel or blister for 20 years from date of purchase, when installed within Australia.
Page 22
ABSCO SHEDS and storage units are primarily used for storage of garden equipment such as lawnmowers, wheelbarrows, garden tools etc. Storage...
