We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES

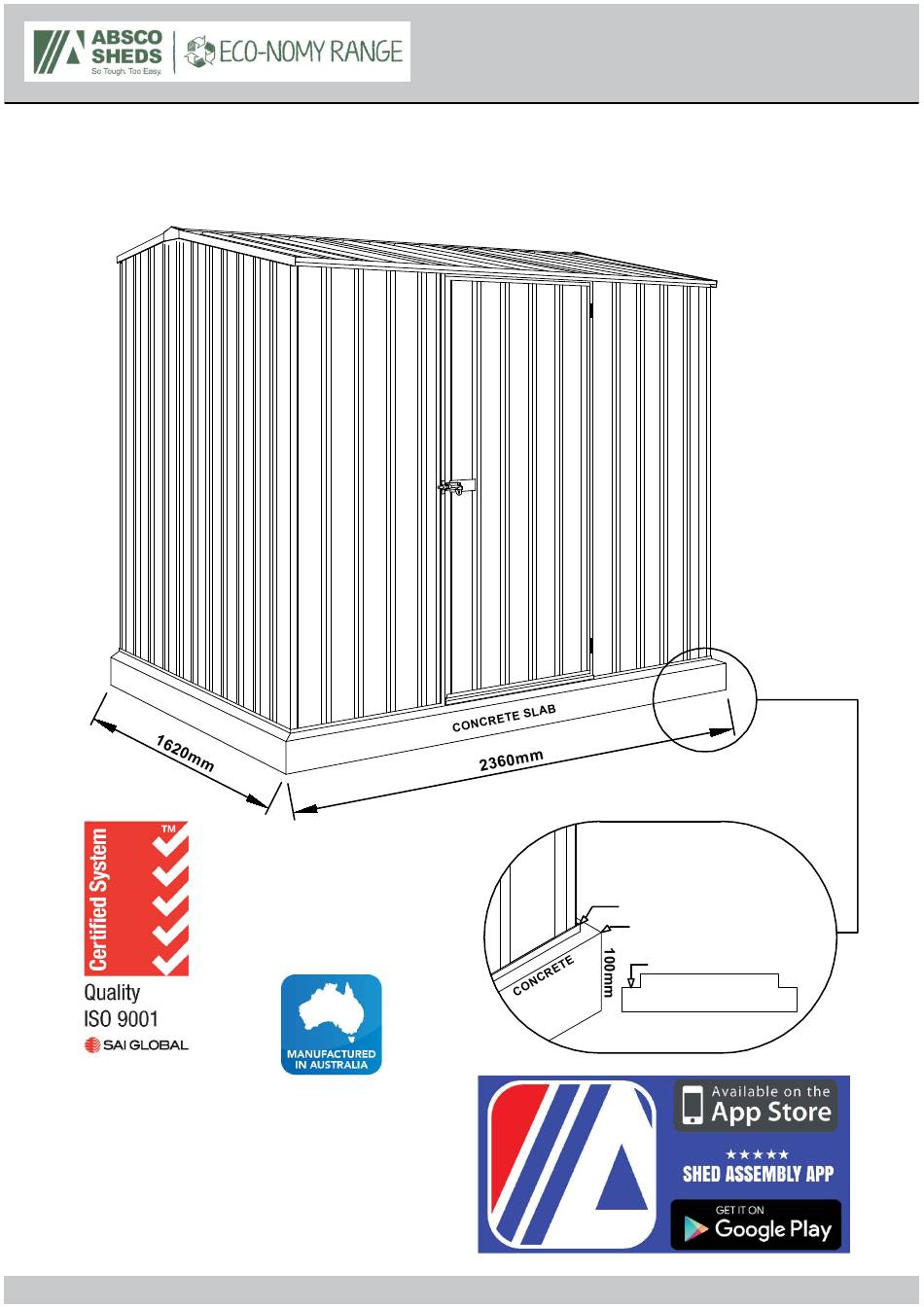

WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
ASSEMBLY INSTRUCTION MANUAL
Absco Industries ECO
Shed Model: J23151GECOK
SHED MODEL: J23151GECOK
FRONT: 2.26m
SIDE:
HEIGHT: 1.95m
BOTTOM CHANNEL
REBATED EDGE
75mm WIDE REBATE
CONCRETE SLAB
21-11-2017
1.52m
PAGE 01
Advertisement
Related Manuals for ABSCO SHEDS ECO J23151GECOK
Summary of Contents for ABSCO SHEDS ECO J23151GECOK
- Page 1 Absco Industries ECO Shed Model: J23151GECOK FRONT: 2.26m SIDE: 1.52m HEIGHT: 1.95m WHEN LAYING YOUR CONCRETE SLAB, ENSURE THERE IS A REBATED EDGE 25mm DEEP AROUND THE PERIMETER BOTTOM CHANNEL REBATED EDGE THIS WILL HELP WATER EGRESS FROM THE BASE OF THE SHED 75mm WIDE REBATE CONCRETE SLAB We thank you for choosing an Australian made...
- Page 2 Absco Industries ECO Shed Model: J23151GECOK GENERAL INSTRUCTIONS · Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. · Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on pages three and four.
-
Page 3: Component Description
Absco Industries ECO Shed Model: J23151GECOK COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION RIDGE STEEL SHEET 97BR BEAM 1785mm X 773mm L = 1152mm (47.3") RIDGE STEEL SHEET 97BL BEAM 1785mm X 773mm L = 1152mm (47.3") STEEL SHEET 1915mm X 773mm... - Page 4 Absco Industries ECO Shed Model: J23151GECOK COMPONENTS - SPLICED CHANNEL & RIDGE BEAM COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION 54AL 54AR CHANNEL CHANNEL L = 1126.5 (44.3") L = 1126.5 (44.3") 54CL 54CR CHANNEL CHANNEL L = 1126.5 (44.3") L = 1126.5 (44.3") 54BL 54BR...
- Page 5 Absco Industries ECO Shed Model: J23151GECOK COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION CHANNEL JAMB L= 788mm L = 788mm JAMB L= 1785mm JAMB L= 1120mm LIP TRIM L= 795mm JAMB L= 1785mm INSTRUCTIONS &...
- Page 6 Absco Industries ECO Shed Model: J23151GECOK INSTRUCTIONS FOR JOINING SPLICED CHANNELS NOTE: THE TEXT MARKED ON ALL PARTS MUST BE SHOWN ON THE SAME SIDE AS EACH OTHER. JOIN>> JOIN>> JOIN>> <<JOIN STEP 1. STEP 2. Position the channels and the CSJ Join the first channel to the CSJ by inserting the center joiner channel so the center of the of the CSJ (on an angle) to the end of the channel...
- Page 7 Absco Industries ECO Shed Model: J23151GECOK STEP 1. PRE-ASSEMBLY OF SPLICED CHANNELS NOTE: JOIN TOGETHER 16 X CHANNEL SECTIONS USING 8 X CHANNEL JOINERS (PART CSJ) NOTE: SOME CHANNELS HAVE 2 x 81C HOLES IN THEM - YOU WILL NEED TO RE-DRILL HOLES ON ANY CHANNEL WHERE THE CSJ JOINING CHANNEL COVERS...
- Page 8 Absco Industries ECO Shed Model: J23151GECOK INSTRUCTIONS FOR JOINING SPLICED RIDGE BEAM STAGE 1: PUSH RIDGE BEAMS TOGETHER, MAKE SURE THERE IS A 50mm OVERLAP OF THE RIDGE CAP STAGE 2: INSERT RIDGE CAP JOINER INTO CONNECTED RIDGE CAPS. MAKE SURE JOINER HAS 225mm IN EACH RIDGE CAP. STAGE 3: TURN RIDGE CAP OVER AND MEASURE 250mm FROM THE END OF EACH RIDGE CAP.
- Page 9 Absco Industries ECO Shed Model: J23151GECOK STEP 2. PRE-ASSEMBLY OF SPLICED RIDGE BEAM QTY. = 1 PHILLIPS DRIVER BIT QTY. = 8 SELF DRILLING TEK SCREW RIDGE BEAM 1126.5mm QTY. = 2 PARTS 97BL & 97BR QTY. = 1 PART ZARSP - 450mm LONG ZARSP THE TOP SECTIONS OF CAPPING WILL OVERLAP...
- Page 10 Absco Industries ECO Shed Model: J23151GECOK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017 PAGE 10...
- Page 11 Absco Industries ECO Shed Model: J23151GECOK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017 PAGE 11...
- Page 12 Absco Industries ECO Shed Model: J23151GECOK ABSCO ASSEMBLY INTRODUCTION The snaptite assembly system locks most perimeter channels to all roof and wall sheets without the need for tools and fasteners. To pre-assemble the four wall panels and two roof panels, the perimeter channels are secured to the top and bottom of each panel using the snaptite system, as detailed on the...
-
Page 13: Door Panel Assembly
Absco Industries ECO Shed Model: J23151GECOK DOOR PANEL ASSEMBLY ALL VERTICAL DOOR CHANNELS ARE INSTALLED IN THE REVERSE DIRECTION IN COMPARISON TO HORIZONTAL DOOR CHANNELS 20mm FLANGE 15mm FLANGE ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017 PAGE 13... -
Page 14: Rear Panel Assembly
Absco Industries ECO Shed Model: J23151GECOK REAR PANEL ASSEMBLY SIDE PANEL ASSEMBLY (2 Required) TRIM THE TIP OF EACH SHEET OR BEND OUT OF THE WAY TO ALLOW CHANNELS TO FIT HARD UP TO THE EDGE OF THE SHEET ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017... - Page 15 Absco Industries ECO Shed Model: J23151GECOK ROOF PANEL ASSEMBLY (2 Required) 2 x PRE-PUNCHED HOLES TO THIS END OF EACH SHEET WITH PART NO. 81C FITTED ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017 PAGE 15...
-
Page 16: Front Panel Assembly
Absco Industries ECO Shed Model: J23151GECOK FRONT PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017 PAGE 16... - Page 17 Absco Industries ECO Shed Model: J23151GECOK DOOR PANEL ASSEMBLY NOTE: Nuts and bolts (supplied) may be used instead of pop rivets (supplied) by simply enlarging the hinge hole sets in the jamb using a 4mm drill bit NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment.
- Page 18 Absco Industries ECO Shed Model: J23151GECOK PANEL CONSTRUCTION NOTE: Take care to ensure that both front and rear wall panels are not positioned upside down. the top channel of each panel is pre-punched for attaching roof sheets to, the bottom channels are not. SIDE WALL PANEL CHANNELS FIT INTO THE NOTCHED FRONT AND REAR WALL...
- Page 19 Absco Industries ECO Shed Model: J23151GECOK INSIDE VIEW OF FIXING ROOF CONSTRUCTION SECURE PEAK MOVE THE OTHER BRACE TO RIDGE ROOF PANEL INTO BEAM AND ROOF POSITION AND SECURE PANEL WITH ONE PEAK BRACE TO RIDGE SCREW AT EACH BEAM AND ROOF PANEL WITH ONE SCREW AT EACH END SLIDE THE ROOF PANEL INTO...
- Page 20 Absco Industries ECO Shed Model: J23151GECOK FINAL CONSTRUCTION BEND THE TOP AND BOTTOM FLANGES AS SHOWN, THEN HOOK THE BOTTOM FLANGES UNDER THE TOP CHANNEL AND SCREW THE TOP FLANGES FOR BOTH AS SHOWN GABLE CAPS ANCHORING OF SHED LOCATION OF 12 CONCRETE ANCHORS BOLT &...
- Page 21 AUSTRALIA PRODUCT WARRANTY AGAINST DEFECTS Congratulations on your purchase of an ABSCO SHED ABSCO SHEDS, including garden sheds, garden beds, aviaries, storage units, garages, awnings and carports are made using high quality Australian made steel. We are pleased to advise we warrant that the steel coating will not rust, crack, flake peel or blister for 10 years from date of purchase, when installed within Australia.
- Page 22 ABSCO SHEDS include garden sheds, garden beds, storage units, aviaries, garages, awnings and carports. ABSCO SHEDS are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fixings etc., may exhibit minor deformations which may allow some water entry.
