Cornwell Tools CAT650AS Operating Instructions

Operating Instructions • Warning Information
• Parts Breakdown
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do
this type of work. To reduce your exposure to these chemicals: work
in a well ventilated area, and work with approved safety equipment,
such as those dust masks that are specially designed to filter out
microscopic particles.
SPECIFICATIONS
Strokes per Minute . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7,000 SPM
Ave . Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 .0 CFM
Max . Rec . Air Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 psig
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPT
Net Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 .2 Lbs
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 .5"
Sound Pressure Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 .5 dBA
Cutting Capacity . . . . . . . . . . . . . . . . 6 gauge (5 .0mm) steel sheet
Stroke Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10mm
Includes: . . . . . . . . . . . . . 18TPI, 24TPI and 32TPI Bi-Metal Blades
Vibration Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 .3m/s²
Recommended Hose Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8"
CAT650AS
WARNING
1
WARNING
• MAXIMUM SPM OF 7000
• MAX AIR PRESSURE:
90 PSIG, 6.2 BAR
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
ALWAYS WEAR
BREATHING
APPARATUS
(USERS &
BYSTANDERS)

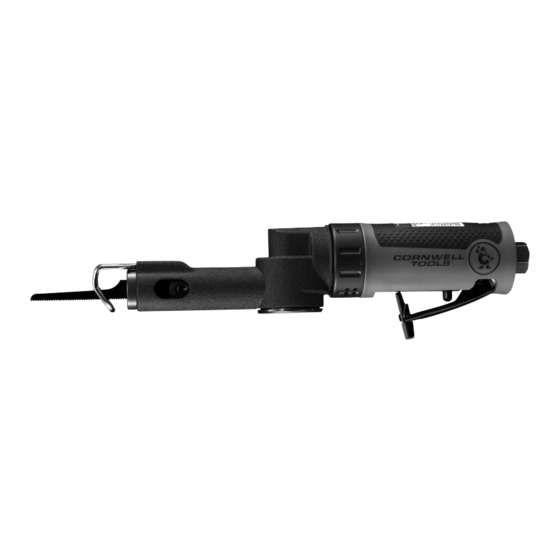

CAT650AS
bluePOWER
®
Geared Air Saw
rev 10/10/17
