Quark-Elec QK-AS07-0183 Setup Manual

QK-AS07-0183
USB CONNECTION:
The AS07-0183 is designed to be used out of the box. Alternatively, AS07-0183
can be connected via USB adaptor (optional) to a Windows PC for:
1. Accessing GPS /heading data on a PC .
2. Configuring additional settings (using Windows configuration tool)
a. Filtering of NMEA 0183 output sentences, to eliminate unwanted data
b. Adjusting the baud rate
c. Adjusting output frequency. The frequency of data transfer can be set to 1/2/5/10 per
second. 1Hz is the default setting and is generally recommended. Please note: changing
the setting to 10Hz may cause data overflow in some devices.
d. Programming to compensate for installations where the sensor heading marker is posi-
tioned off of the direct course heading. Sensor must still be located but could be rotated
up to +90° degrees or -90° degrees if necessary. In this case this adjustment should be
configured into the device.

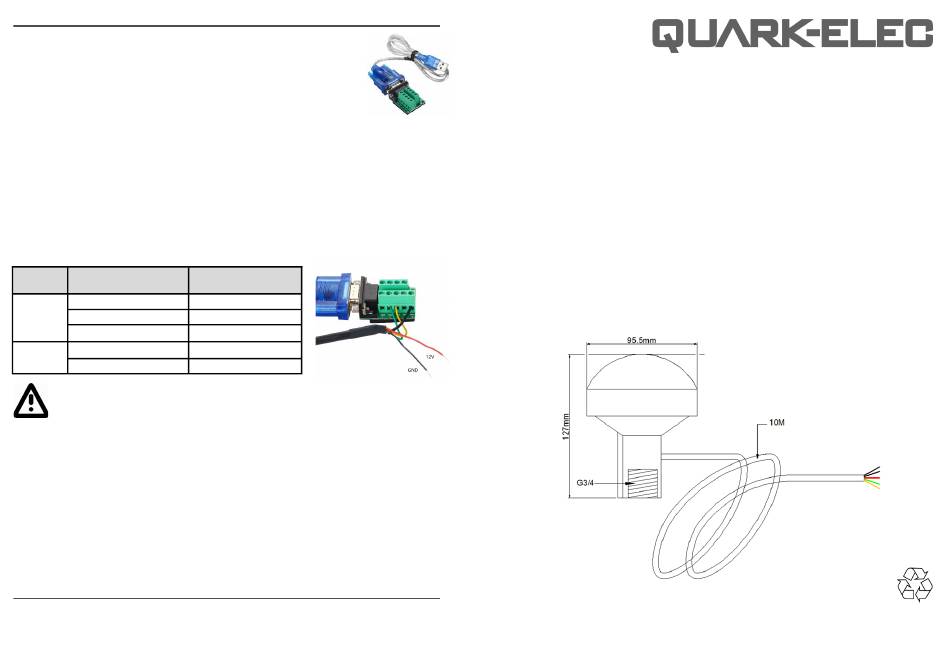

QK-AS07-0183 wire
NMEA Green: TX (NMEA OUT) USB adaptor—RX
0183
Yellow: RX (NMEA IN) USB adaptor—TX
Black (thick): GND shield USB adaptor—GND
POWER Black (thin): GND GND (for Power)
Red: Power 12v—14.4v Power
TAKE CARE: There are two GND connections.
One is GND for the NMEA Connection, and one is GND for Power. Ensure you
check the above table and your device's documentation carefully before connec-
BEFORE LEAVING HOME:
We recommend pre-installing any needed configuration software or drivers if needed, as you
might not have a CD reader/internet access on site. Driver and configuration software are for
use with the RS232 to USB adaptor, they are only needed for the above USB features.
Configuration software (Windows) required.
Driver required for Windows. If using Windows 10, the driver should install automatically, if
not, it is included on the Free CD and at Quark-elec.com. Driver not required for Mac.
Configuration software and instructions are on the included CD and on www.quark-elec.com
Disclaimer: This product is designed to aid navigation and should be used to augment normal navigational
procedures and practices. It is the user's responsibility to use this product prudently. Neither Quark-elec, nor
their distributors or dealers accept responsibility or liability either to the product user or their estate for any
V1.1(0821)
Connection on RS422
to USB adaptor

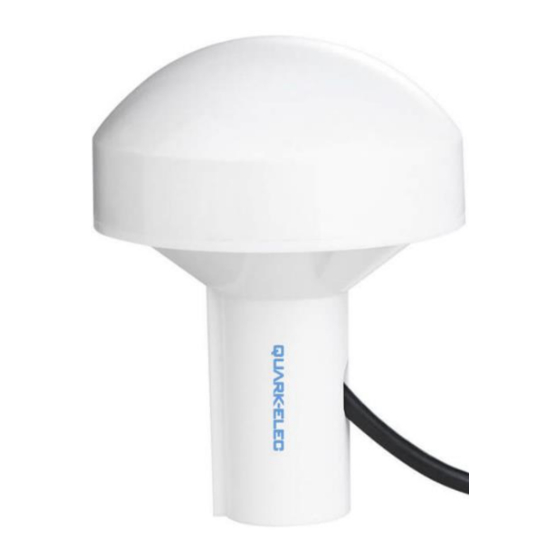

QK-AS07-0183
GPS & HEADING SENSOR
NMEA 0183
GPS, GLONASS & GALILEO POSITIONING
3-AXIS COMPASS HEADING
PLEASE NOTE: AS07-0183 supplied from Jan 2021
onwards, include the Heading function
SET-UP GUIDE
Please recycle your packaging
CE, RoHS certified
