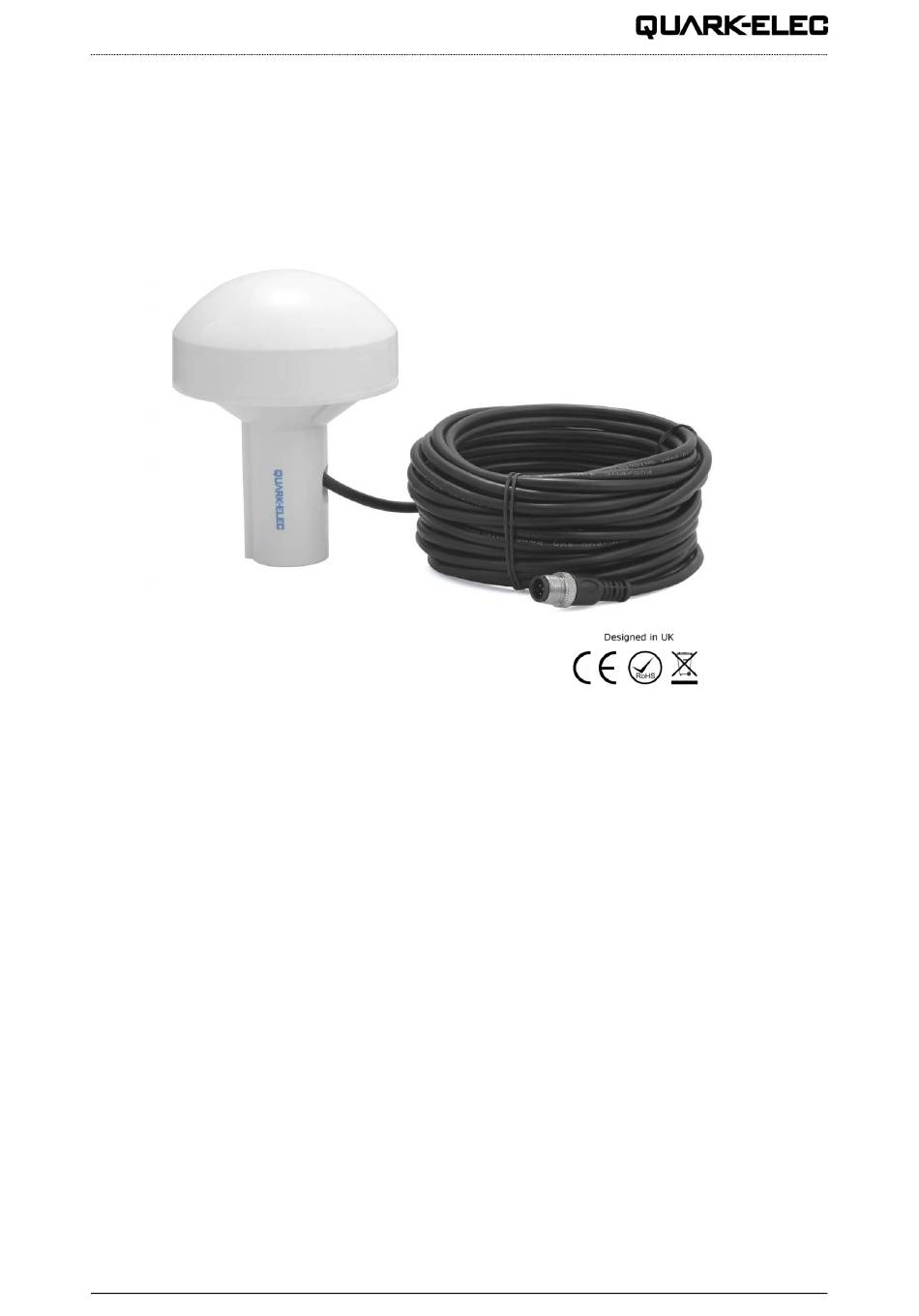

QK-AS07 Manual
AS07 Features
• NMEA 2000 'plug and play' instant network connection (no configuration required)
• Support GPS, Glonass and Galileo GNSS
• 1 Hz position update rate as default setting
• Low (<100mA) power consumption at 12V DC
• IPX6 waterproof enclosure
Additional Features with Optional Output Switch - AS07-C (add-on
purchase)
• Configurable 1-10 Hz rapid position update rate, through the Windows Configuration tool.
• Configurable filtering of data output protocols, through the Windows Configuration tool.
• NMEA 0183 compatible (NMEA 0183 RS-422)
• Default NMEA 0183 baud rate set to 4800bps.
• Configurable baud rates (4800 / 9600 / 38400 / 115200 bps) through the Windows Configuration tool.
V 1.0
QK-AS07 Manual
NMEA 2000/0183 GPS sensor
1 of 11
2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QK-AS07 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quark-Elec QK-AS07

Summary of Contents for Quark-Elec QK-AS07

  • Page 1 QK-AS07 Manual QK-AS07 Manual NMEA 2000/0183 GPS sensor AS07 Features • NMEA 2000 ‘plug and play’ instant network connection (no configuration required) • Support GPS, Glonass and Galileo GNSS • 1 Hz position update rate as default setting • Low (<100mA) power consumption at 12V DC •...

  • Page 2: Table Of Contents

    QK-AS07 Manual Contents Introduction ............................3 1.1. The AS07 ..........................3 1.2. The AS07-C (optional purchase) ..................3 1.3. GPS, Glonass and Galileo GNSS ..................3 Installation and Operation ........................ 4 2.1. Dimensions, Mounting and Location ................... 4 Connections ............................. 5 3.1.

  • Page 3: Introduction

    1. Introduction 1.1. The AS07 The QK-AS07 is a high-accuracy, GPS, Glonass and Galileo GNSS positioning receiver. AS07 features superior sensitivity for consistent signal acquisition, reliable position accuracy, and accurate speed and course-over-ground readings. The AS07 is designed for marine environments and suitable for other outdoor and vehicular use, with an IPX6 waterproof housing.

  • Page 4: Installation And Operation

    QK-AS07 Manual 2. Installation and Operation 2.1. Dimensions, Mounting and Location Figure 1: AS07 Dimensions AS07 is designed to be securely positioned in an outdoor environment. The AS07 should be mounted to a strong and sturdy location. The AS07 has a standard G 3/4 screw thread.

  • Page 5: Connections

    QK-AS07 Manual 3. Connections The AS07 sensor has the following connections. • NMEA 2000 port. The AS07 is powered by the NMEA 2000 bus and sends positional data (PGN messages) through the NMEA 2000 bus, to be available to all connected devices.

  • Page 6: As07-C: Using The Optional Output Switch (As07-C)

    QK-AS07 Manual 4. AS07-C: Using the Optional Output Switch (AS07-C) The AS07 is designed to be used out of the box, for instant positional data to your NMEA 2000 bus. Alternatively, the AS07 can be used with the AS07-C (optional purchase) for, 1.

  • Page 7: Connecting As07-C Via Usb For Windows Configuration

    QK-AS07 Manual 4.2. Connecting AS07-C via USB for Windows Configuration AS07-C is supplied with a USB connector. The USB cable can be linked directly to a USB port on a PC. Will you need a driver to connect via USB? To enable the USB data connection of AS07, related hardware drivers may be needed dependent on your system requirements.

  • Page 8: The Configuration Tool (Windows Pc)

    QK-AS07 Manual 4.3. The Configuration tool (Windows PC) The free Configuration software is on the CD provided and is downloadable from www.quark-elec.com. Optional NMEA 2000 configuration The configuration tool must be used when plugged into a windows PC via USB cable.

  • Page 9: Configuring The As07 For Backward Compatibility With Nmea 0183 Devices

    QK-AS07 Manual Configuring the AS07 for backward compatibility with NMEA 0183 devices The configuration tool must be used when plugged into a windows PC via USB cable. The configuration tool must not be opened while other programs are using the AS07.

  • Page 10: Nmea 0183 Wiring - Rs422 Or Rs232

    QK-AS07 Manual 4.4. NMEA 0183 wiring - RS422 or RS232? AS07 uses the NMEA 0183-RS422 protocol (differential signal), however some chart plotters or devices may use the older NMEA 0183-RS232 protocol (single-ended signal). Check which protocol your connecting NMEA devices (e.g. Chart plotter) uses. If you are unsure whether your connecting NMEA 0183 device uses NMEA 0183 RS422 or RS232, the input/output connections on the device will give you some indication.

  • Page 11: Limited Warranty And Notices

    Quark-elec warrants this product to be free from defects in materials and manufacture for two years from the date of purchase. Quark-elec will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour.
