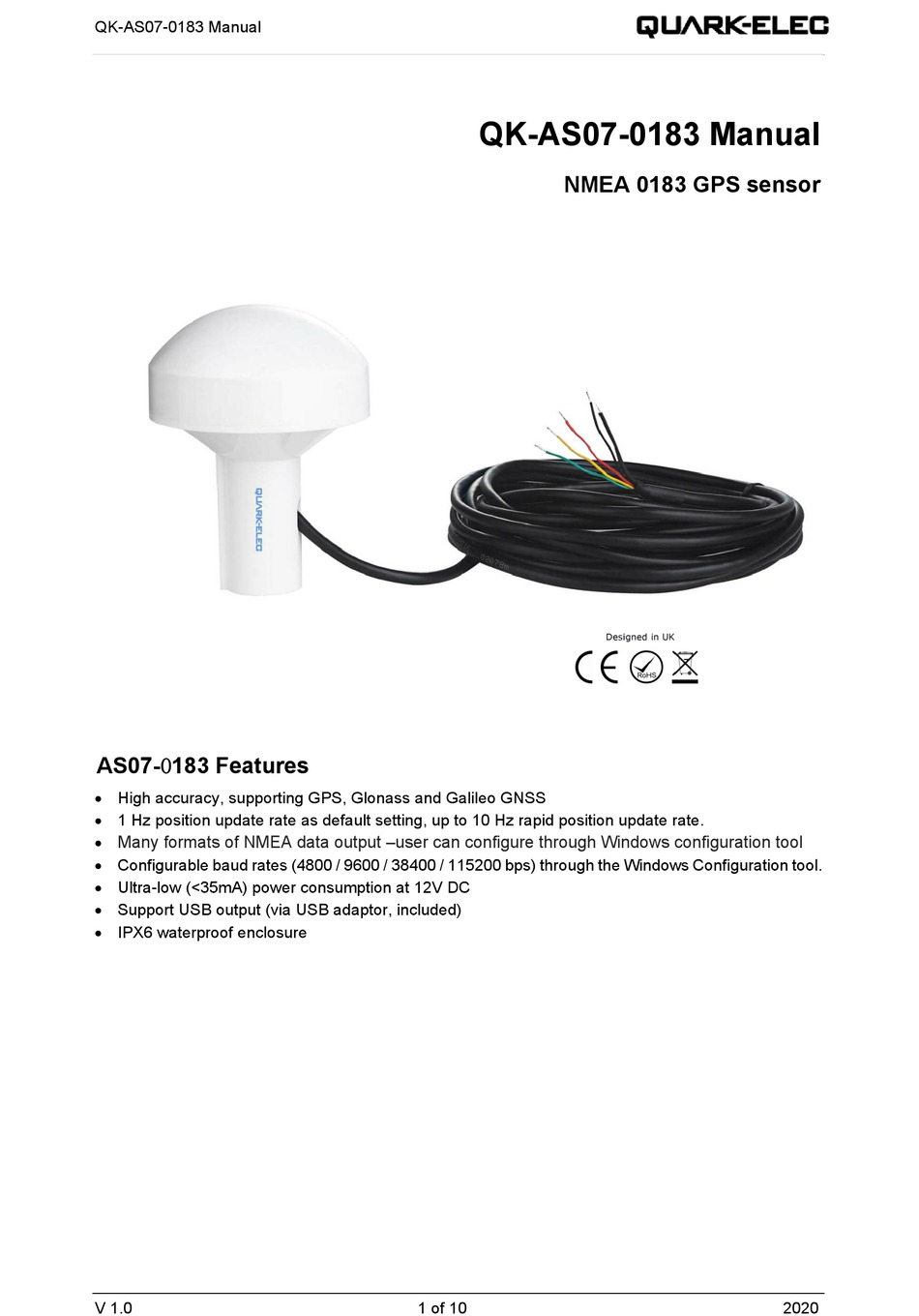

QK-AS07-0183 Manual
QK-AS07-0183 Manual
NMEA 0183 GPS sensor
AS07-0183 Features
 High accuracy, supporting GPS, Glonass and Galileo GNSS
 1 Hz position update rate as default setting, up to 10 Hz rapid position update rate.
Many formats of NMEA data output –user can configure through Windows configuration tool
 Configurable baud rates (4800 / 9600 / 38400 / 115200 bps) through the Windows Configuration tool.
 Ultra-low (<35mA) power consumption at 12V DC
 Support USB output (via USB adaptor, included)
 IPX6 waterproof enclosure
V 1.0
1 of 10
2020

Advertisement

Table of Contents
loading

Related Manuals for Quark-Elec QK-AS07-0183

Summary of Contents for Quark-Elec QK-AS07-0183

  • Page 1 QK-AS07-0183 Manual QK-AS07-0183 Manual NMEA 0183 GPS sensor AS07-0183 Features  High accuracy, supporting GPS, Glonass and Galileo GNSS  1 Hz position update rate as default setting, up to 10 Hz rapid position update rate.  Many formats of NMEA data output –user can configure through Windows configuration tool ...

  • Page 2: Table Of Contents

    QK-AS07-0183 Manual Contents Introduction ............................3 1.1. The AS07-0183 ........................3 1.2. GPS, Glonass and Galileo GNSS ..................3 Installation and Operation ........................ 4 2.1. Dimensions, Mounting and Location ................... 4 2.2. Operation ..........................4 Connections ............................. 4 3.1. Connect two NMEA 0183 devices (RS232) ................ 5 3.2.

  • Page 3: Introduction

    QK-AS07-0183 Manual 1. Introduction 1.1. The AS07-0183 The QK-AS07 is a high-accuracy, GPS, Glonass and Galileo GNSS positioning sensor for use in vessels, automotive, fleet vehicle, and others where that require a small, highly accurate positioning receiver. AS07-0183 features superior sensitivity for consistent signal acquisition, reliable position accuracy, and accurate speed and course-over-ground readings.

  • Page 4: Installation And Operation

    QK-AS07-0183 Manual 2. Installation and Operation 2.1. Dimensions, Mounting and Location Figure 1: AS07-0183 Dimensions AS07-0183 is designed to be securely positioned in an outdoor environment. The AS07-0183 should be mounted to a strong and sturdy location. The AS07-0183 has a standard G 3/4 screw thread.

  • Page 5: Connect Two Nmea 0183 Devices (Rs232)

    QK-AS07-0183 Manual Figure 2 Connection wires 3.1. Connect two NMEA 0183 devices (RS232) The AS07-0183 sends positional sentences, via RS232 interface, to be available to all connected devices. For most of RS 232 interface devices. Only two wires need to be connected as below:...

  • Page 6: Connect Via Usb To Windows Computer

    QK-AS07-0183 Manual 3.3. Connect Via USB to Windows Computer The AS07-0183 is designed to be used out of the box, for using. Alternatively, AS07-0183 can be connected via USB adaptor(optional) to a Windows PC for: 1, Outputting GPS sentence to PC via USB port.

  • Page 7: Checking The Usb Com Port (Windows)

    QK-AS07-0183 Manual Type: Is /dev/*sub* The Mac system will return a list of USB devices. AS07 will display as - “/dev/tty.usbmodemXYZ” where XYZ is a number. Nothing further needs to be done if it is listed. Linux: No driver is required for Linux. When plugged into the computer, A07-0813 will show up as a USB CDC device on /dev/ttyACM0.

  • Page 8: The Configuration Tool (Windows Pc)

    QK-AS07-0183 Manual 4. The Configuration tool (Windows PC) The free Configuration software is on the CD provided and is downloadable from www.quark-elec.com. 4.1. Optional NMEA 0183 configuration The configuration software can be used to: 1, Filtering of NMEA 0183 output sentences, to eliminate unwanted data.

  • Page 9: Data Output Protocols

    Quark-elec warrants this product to be free from defects in materials and manufacture for two years from the date of purchase. Quark-elec will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour.

  • Page 10: Document History

    Changes / Comments 12-06-2020 Initial release 10. For more info… For more technical information and other enquiries, please go to the Quark-elec forum at: https://www.quark-elec.com/forum/ For sales and purchasing information, please email us: info@quark-elec.com Quark-elec (UK) Unit 7, the Quadrant, Newark close Royston, UK, SG8 5HL info@quark-elec.com...
