Quark-Elec QK-AS08 Setup Manual

QK-AS08
3. The configuration tool can also be used to view the real time status of the boat. Please
note, some computers without dedicated GPU ( Graphics Processing Unit) can't sup-
port this function.
The AS08 is suitable not just for the marine market but for anyone wanting real-time infor-
mation regarding heading, rate of turn, pitch and roll of an aircraft, vessel or vehicle. With the
configuration tool you can choose the module as vessel, aircraft or vehicle.
3. DATA OUTPUT PROTOCOLS
NMEA 0183 output
Wire connection 4 wires: 12V, GND, NMEA Out+, NMEA Out-
Signal type RS-422
Supported messages $IIHDG - Heading with deviation & variation.
$IIHDM - Heading magnetic.
$IIROT – Rate of turn(°/minute), '-' indicates bow turns to port.
$IIXDR – Transducer measurements: Vessel attitude (pitch and roll).
*XDR message example:
$IIXDR,A,15.5,D,AS08_ROLL,A,11.3,D,AS08_PITCH,*3B
where 'A' indicates transducer type, 'A' is for angle transducer.
'15.5' is the roll value, '-' indicates roll to port.
'D' indicates the unit of measurement, degree.
AS08_ROLL is the name of transducer and the data type.
'A' indicates transducer type, 'A' is for angle transducer.
'11.3' is the pitch value, '-' indicates bow is below level horizon.
'D' indicates the unit of measurement, degree.
AS08_PITCH is the name of transducer and the data type.
*3B is the check sum.
BEFORE LEAVING HOME:
We recommend pre-installing the configuration software or drivers if needed, as you might not
have a CD reader/internet access on site.
Disclaimer: This product is designed to aid navigation and should be used to augment normal navigational
procedures and practices. It is the user's responsibility to use this product prudently. Neither Quark-elec, nor
their distributors or dealers accept responsibility or liability either to the product user or their estate for any
accident, loss, injury or damage whatsoever arising out of the use or of liability to use this product.
Email: info@quark-elec.com
V1.0(1021)

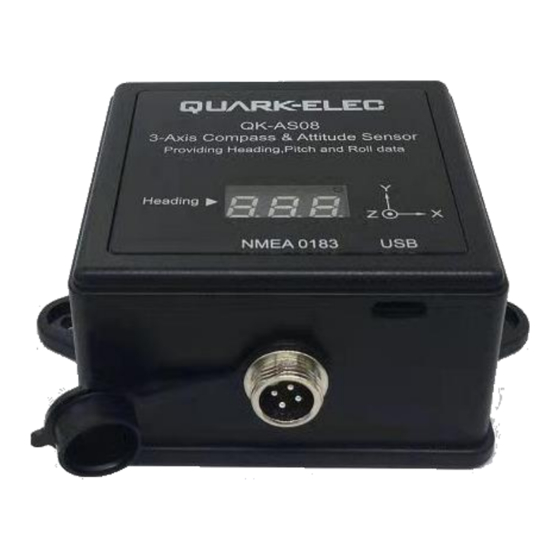

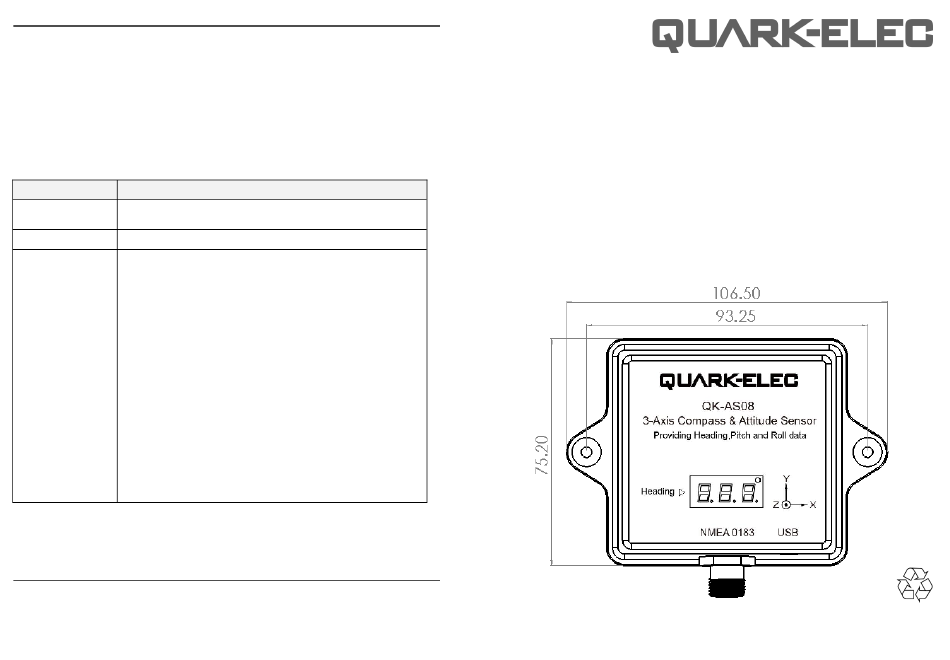

QK-AS08
3-AXIS COMPASS & ATTITUDE SENSOR
PROVIDING HEADING, PITCH & ROLL DATA
NMEA 0183 & USB OUTPUT
SUPER ELECTRONMAGNETIC COMPATIBILITY
RELIABLE AND PRECISE ATTITUDE INFORMATION
SET-UP GUIDE
Please recycle your packaging
CE, RoHS certified
