QK-AS07-0183 Manual
QK-AS07-0183 Manual
NMEA 0183 GPS sensor

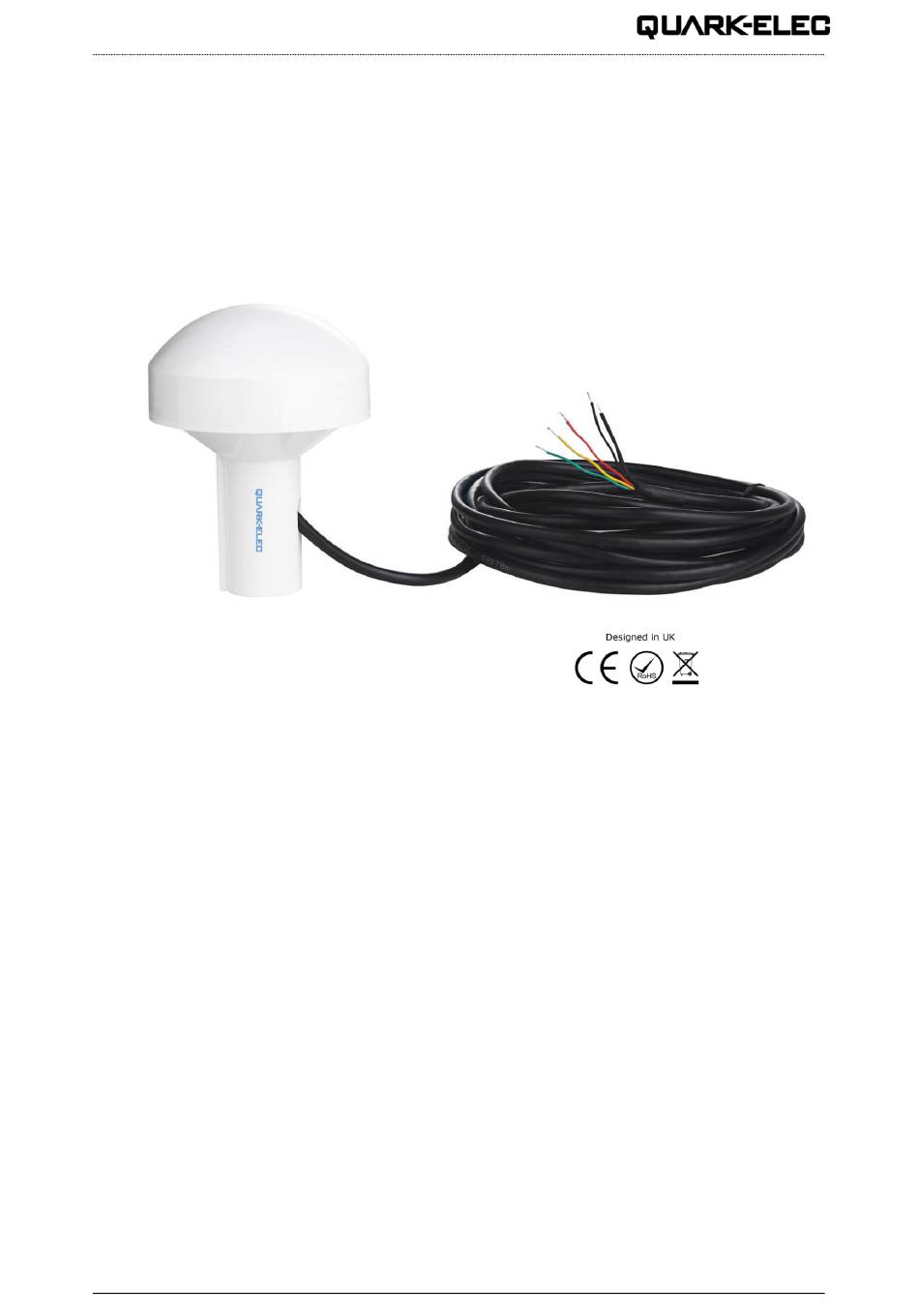

AS07-0183 Features
• High accuracy GPS sensor, supporting GPS, Glonass and Galileo
• 1 Hz position update rate as default setting, up to 10 Hz rapid position update rate
•
Many formats of NMEA data output –user can configure through Windows configuration tool
• Configurable baud rates (4800 / 9600 / 38400 / 115200 bps) through the Windows Configuration tool
• Ultra-low (<35mA) power consumption at 12V DC
• Supports USB output (via included USB adaptor)
• IPX6 waterproof enclosure
V 1.0
1 of 10
2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QK-AS07-0183 and is the answer not in the manual?

Questions and answers

Related Manuals for Quark-Elec QK-AS07-0183

Summary of Contents for Quark-Elec QK-AS07-0183

  • Page 1 QK-AS07-0183 Manual QK-AS07-0183 Manual NMEA 0183 GPS sensor AS07-0183 Features • High accuracy GPS sensor, supporting GPS, Glonass and Galileo • 1 Hz position update rate as default setting, up to 10 Hz rapid position update rate • Many formats of NMEA data output –user can configure through Windows configuration tool •...

  • Page 2: Table Of Contents

    QK-AS07-0183 Manual Contents Introduction ............................3 The AS07-0183 ........................3 GPS, Glonass and Galileo GNSS ..................3 Dimensions, Mounting and Location ....................4 Installation ............................4 Connections ......................... 4 Connecting to NMEA 0183 (RS232) devices ..............5 Connecting to NMEA 0183 (RS422) devices ..............5 Connect Via USB to Windows Computer ................

  • Page 3: Introduction

    QK-AS07-0183 Manual 1. Introduction The AS07-0183 The QK-AS07 is a high-accuracy, GPS, Glonass and Galileo GNSS positioning sensor for use in vessels, automotive, fleet vehicle, and others where that require a small, highly accurate positioning receiver. AS07-0183 features superior sensitivity for consistent signal acquisition, reliable position accuracy, and accurate speed and course-over-ground readings.

  • Page 4: Dimensions, Mounting And Location

    QK-AS07-0183 Manual 2. Dimensions, Mounting and Location Figure 1: AS07-0183 Dimensions AS07-0183 is designed to be securely positioned in an outdoor environment. The AS07-0183 should be mounted to a strong and sturdy location. The AS07-0183 has a standard G 3/4 screw thread. It is provided with a corresponding antenna base (included), or can be installed with a G ¾...

  • Page 5: Connecting To Nmea 0183 (Rs232) Devices

    QK-AS07-0183 Manual Connecting to NMEA 0183 (RS232) devices The AS07-0183 sends positional sentences, in the NMEA 0183-RS232 (single-ended) protocol. For RS232 interface devices, these wires need to be connected. QK-AS07-0183 wire Connection needed on RS232 device NMEA 0183 Green: TX (NMEA OUT)

  • Page 6: Connect Via Usb To Windows Computer

    QK-AS07-0183 Manual Connect Via USB to Windows Computer The AS07-0183 is designed to be used out of the box. Alternatively, AS07-0183 can be connected via USB adaptor(optional) to a Windows PC for: 1. Accessing GPS data on a PC via the USB port.

  • Page 7: Will You Need A Driver To Connect Via Usb

    QK-AS07-0183 Manual Will you need a driver to connect via USB? To enable the USB data connection of AS07-0183, related hardware drivers may be needed dependent on your system requirements. Please be noted, although AS07-0183 can be used on Mac and Linux system to output NMEA 0183 data via USB, the configuration tool can only be run on Windows based system.

  • Page 8: The Configuration Tool (Windows Pc)

    QK-AS07-0183 Manual 4. The Configuration tool (Windows PC) The free Configuration software is on the CD provided and is downloadable from www.quark-elec.com, for optional configuration. 1. Open the Configuration tool. 2. Select your COM port number. 3. Click ‘Open’. Now, ‘Connected’ will show on the bottom left side of the configuration tool and the Configuration tool is read to be used.

  • Page 9: Data Output Sentences

    Quark-elec warrants this product to be free from defects in materials and manufacture for two years from the date of purchase. Quark-elec will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour.

  • Page 10: Document History

    Changes / Comments 23-06-2020 Initial release 10. For more info… For more technical information and other enquiries, please go to the Quark-elec forum at: https://www.quark-elec.com/forum/ For sales and purchasing information, please email us: info@quark-elec.com Quark-elec (UK) Unit 7, the Quadrant, Newark close Royston, UK, SG8 5HL info@quark-elec.com...
