Quark-Elec QK-AS08-N2K Setup Manual

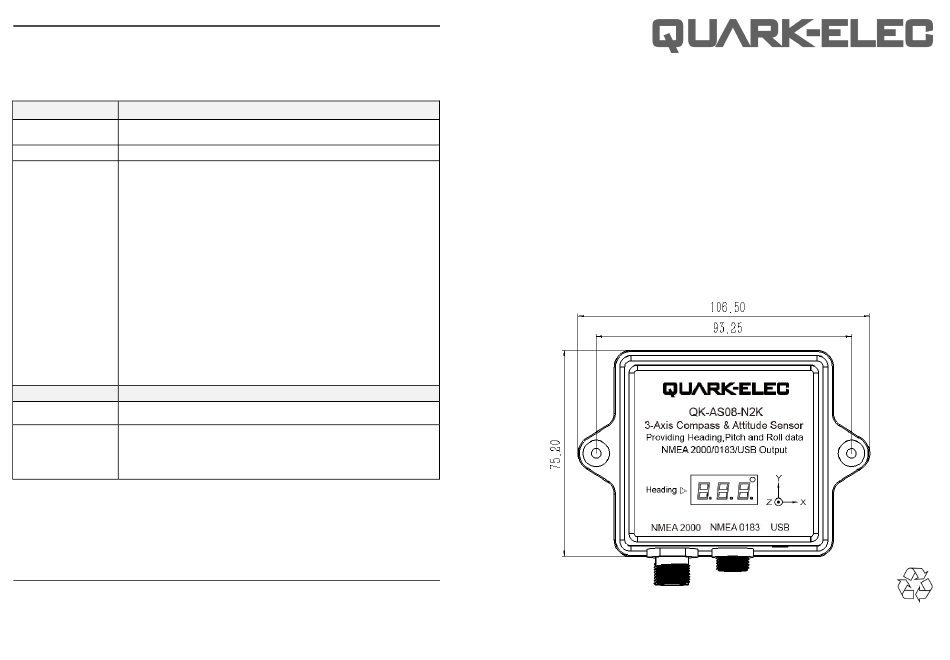

QK-AS08-N2K
The AS08-N2K is suitable not just for the marine market but for anyone wanting real-time in-
formation regarding heading, rate of turn, pitch and roll of an aircraft, vessel or vehicle. With
the configuration tool you can choose the module as vessel, aircraft or vehicle.
3. DATA OUTPUT PROTOCOLS
NMEA 0183 output
Wire connection 4 wires: 12V, GND, NMEA Out+, NMEA Out-
Signal type RS-422
Supported messages $IIHDG - Heading with deviation & variation.
$IIHDM - Heading magnetic.
$IIROT – Rate of turn(°/minute), '-' indicates bow turns to port.
$IIXDR – Transducer measurements: Vessel attitude (pitch and roll).
*XDR message example:
$IIXDR,A,15.5,D,AS08_ROLL,A,11.3,D,AS08_PITCH,*3B
where 'A' indicates transducer type, 'A' is for angle transducer.
'15.5' is the roll value, '-' indicates roll to port.
'D' indicates the unit of measurement, degree.
AS08_ROLL is the name of transducer and the data type.
'A' indicates transducer type, 'A' is for angle transducer.
'11.3' is the pitch value, '-' indicates bow is below level horizon.
'D' indicates the unit of measurement, degree.
AS08_PITCH is the name of transducer and the data type.
*3B is the check sum.
NMEA 2000 output
Wire connection 5 wires: Data+, Data-, shield, 12V, GND.
Supported messages PGN 127250 – Vessel Heading, converted from HDG sentences
PGN 127251 – Rate of Turn, converted from ROT sentences
PGN 127257 – Attitude (pitch and roll), converted from XDR sentences.
BEFORE LEAVING HOME:
We recommend pre-installing the configuration software or drivers if needed, as you might not have a CD
reader/internet access on site.
Driver and configuration software are only needed for specific features. The AS08-N2K can be used out of
the box. Simply connect it with a 12VDC power and it will immediately start working.
Configuration software and instructions are on the included CD and on www.quark-elec.com
Disclaimer: This product is designed to aid navigation and should be used to augment normal navigational
procedures and practices. It is the user's responsibility to use this product prudently. Neither Quark-elec, nor
their distributors or dealers accept responsibility or liability either to the product user or their estate for any
accident, loss, injury or damage whatsoever arising out of the use or of liability to use this product.
Email: info@quark-elec.com
V1.0(1121)
