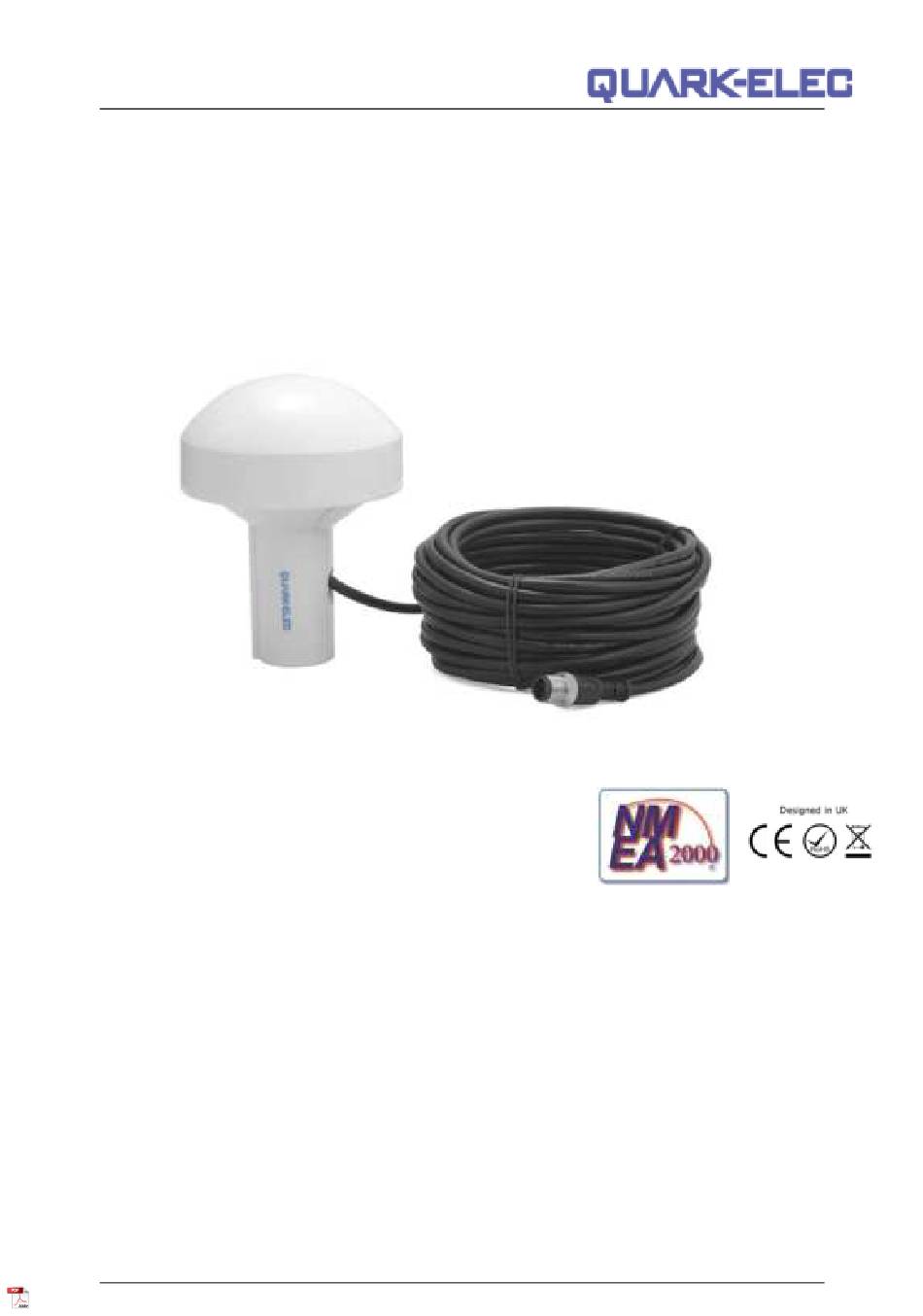

QK-AS07-N2K Manual
QK-AS07-N2K Manual
NMEA 2000 GPS and Heading sensor
With optional NMEA 0183 output
AS07-N2K Features
• NMEA 2000 'plug and play' instant network connection (no configuration required)
• Support GPS, Glonass and Galileo GNSS
• 3-Axis Magneto resistive Sensor
• 1Hz position and heading update rate as default setting
• Enables 3° Compass Heading Accuracy
• Calibratable to compensate for magnetic deviation caused by ferrous metals and other electro-
magnetic fields (very rarely required, only provide this function to the authorized distributors)
• Low (<100mA) power consumption at 12V DC
• IPX6 waterproof enclosure
PLEASE NOTE:
th
AS07-N2K models from 15
May 2021 onwards, include the heading functionality.
Previous models include positioning data only.
V 1.0
1 of 12
2021

Advertisement

Table of Contents
loading

Related Manuals for Quark-Elec AS07-N2K

Summary of Contents for Quark-Elec AS07-N2K

  • Page 1 (very rarely required, only provide this function to the authorized distributors) • Low (<100mA) power consumption at 12V DC • IPX6 waterproof enclosure PLEASE NOTE: AS07-N2K models from 15 May 2021 onwards, include the heading functionality. Previous models include positioning data only. V 1.0...
  • Page 2 QK-AS07-N2K Manual Additional Features with Optional Output Switch - AS07-C (add-on purchase) • Configurable 1-10 Hz rapid position update rate, through the Windows Configuration tool • Configurable filtering of data output protocols, through the Windows Configuration tool • NMEA 0183 compatible (NMEA 0183 RS-422) •...

  • Page 3: Table Of Contents

    4.3. The Configuration tool (Windows PC) ................. 8 Optional NMEA 2000 configuration ................. 9 Configuring the AS07-N2K for backward compatibility with NMEA 0183 devices .. 9 4.4. NMEA 0183 wiring - RS422 or RS232? ................10 Data Output Protocols........................11 Specification ...........................

  • Page 4: Introduction

    1.2. The AS07-C (optional purchase) The AS07-N2K can be used out of the box, to provide instant positional and heading data to your NMEA 2000 bus. Alternatively, the AS07-N2K can be used with the AS07-C Optional Output Switch. The AS07-C provides additional Configuration/Conversion, specifically: 1.

  • Page 5: Installation

    AS07-N2K is designed to be securely positioned in an outdoor environment. The AS07-N2K should be mounted to a strong and sturdy location. The AS07-N2K has a standard G 3/4 screw thread and can be installed using the corresponding antenna base (included) or a G ¾ Base of your choice.

  • Page 6: Connections

    50 to 100 NMEA 0183 data streams. 4. AS07-C: Using the Optional Output Switch The AS07-N2K is designed to be used out of the box, for instant positional data to your NMEA 2000 bus. Alternatively, the AS07-N2K can be used with the AS07-C (optional purchase) for, 1.

  • Page 7: As07-C Connections

    Figure 4 AS07-C Dimensions 4.1. AS07-C Connections Figure 5: AS07-C Connections When used with the AS07-C, instead of a NMEA 2000 connection, the AS07-N2K with the AS07-C can have the following connections: • Power: 12V and GND terminals need to be connected.

  • Page 8: Connecting As07-C Via Usb For Windows Configuration

    Mac: No driver required. For Mac OS X, the AS07-N2K will be recognized and shown as a USB modem. The ID can be checked with the following steps: Plug the AS07-N2K into a USB port and launch Terminal.app Type: Is /dev/*sub* The Mac system will return a list of USB devices.

  • Page 9: Optional Nmea 2000 Configuration

    NMEA 2000 system • Output messages are set to transmit all data types as a default setting. However, the AS07-N2K has an internal filter, so the user can remove unwanted PGN message types 10. Click ‘Config’. After a few seconds your settings will now be saved and you can close the Configuration tool 11.

  • Page 10: Nmea 0183 Wiring - Rs422 Or Rs232

    QK-AS07-N2K Manual 2. Connect AS07-N2K to AS07-C (through NMEA 2000 connector), switch AS07-C to ‘Config’ 3. AS07-C must to be powered through 12V power. Connect 12V and GND 4. Connect to a Windows computer via USB. (Once any necessary drivers have been installed, AS07-N2K will be shown as a virtual com in device manager.)

  • Page 11: Data Output Protocols

    $xxHDM - Heading Magnetic 6. Specification Item Specification Operating temperature -5°C to +80°C Storage temperature -25°C to +85°C AS07-N2K Power supply 12 VDC (via NMEA 2000 backbone) ≤100mA AS07-N2K supply current AS07-C Power supply 12-24VDC ≤165mA (configuration mode); AS07-C supply current ≤105mA (NMEA 0183 output mode);...

  • Page 12: Limited Warranty And Notices

    Quark-elec warrants this product to be free from defects in materials and manufacture for two years from the date of purchase. Quark-elec will, at its sole discretion, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour.
