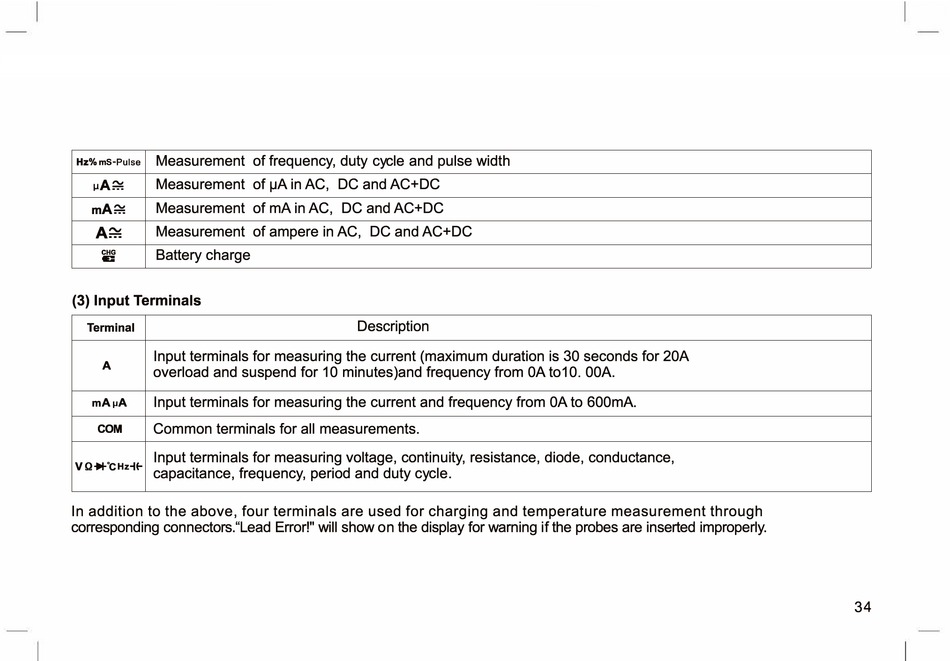

Measurement of frequency, duty cycle and pulse width
Hz% ms-Pulse
Measurement of µA in AC, DC and AC+DC
µA�
Measurement of mA in AC, DC and AC+DC
mA�
A'::".
Measurement of ampere in AC, DC and AC+DC
Battery charge
CHG
E
(3) Input Terminals
Terminal
Input terminals for measuring the current (maximum duration is 30 seconds for 20A
A
overload and suspend for 10 minutes)and frequency from 0A to10. 00A.
Input terminals for measuring the current and frequency from 0A to 600mA.
mAµA
Common terminals for all measurements.
COM
Input terminals for measuring voltage, continuity, resistance, diode, conductance,
°
VO+l-
CHz·IE·
capacitance, frequency, period and duty cycle.
In addition to the above, four terminals are used for charging and temperature measurement through
corresponding connectors."Lead Error!" will show on the display for warning if the probes are inserted improperly.
Description
34
