Signtex Lighting CAEBB Series Installation Instructions & User Manual page 4

Crystal Accessible Exit Edge- Lit LED Sign System
Battery Backup Models

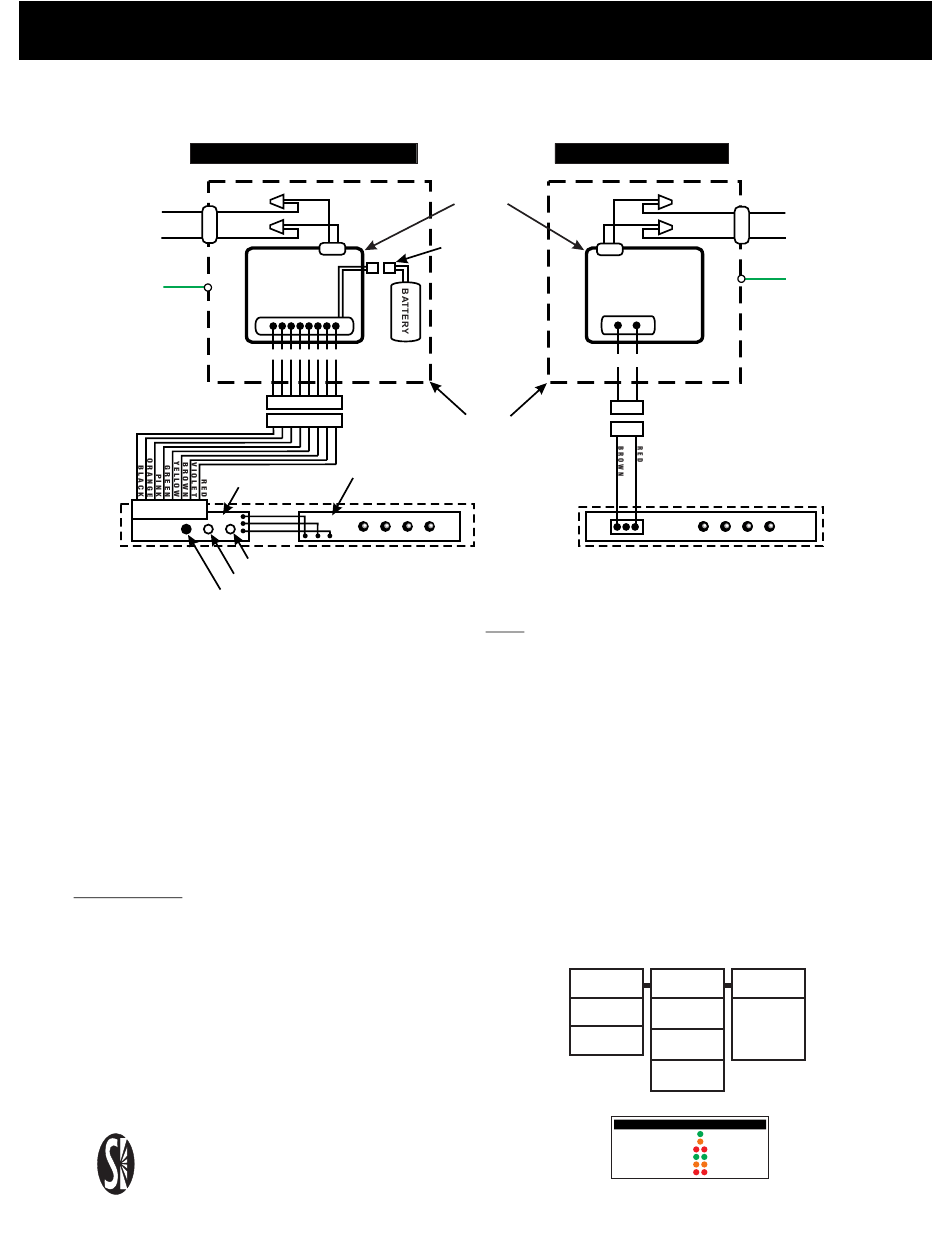

Wiring Diagrams & Instructions
E M E R G E N C Y S I G N S
NEUTRAL
LINE
120-277 VAC
G R E E N
GROUND
Wiring
1. This equipment to be connected to an un- switched
circuit only.
2. For exits with Master- Remote or Self-Diagnostics,
refer to supplementary data sheet for wiring diagrams
and additional instructions.
3. CAUTION: Damage to battery will occur if battery
connector is connected to charger board for
prolonged period of time without continuous AC
power provided.
Inspection and Maintenance
Important Note: Emergency lighting systems
should be tested as often as local codes require,
or at least monthly, to a certain that all
components are operational. Allow battery to
charge 8 hours before initial testing, and 24 hours
to fully charge battery.
1. Normal Operation: When unit is functioning
properly, with AC power supplied, the Status light and
exit lamp will be on.
2. To Test: Press manual test switch. Status light will
turn off and exit lamp will remain on in DC mode.
Signtex Inc
LIGHTING
220 VFW Avenue, Grasonville, MD 21638
TEL: (410) 827-8300 Fax:(410)827- 8866
sales@signtexinc.com www.signtexinc.com
W H I T E
B L A C K
RED
BLK
OUTPUT 2.4-5 VDC
8-PIN POLARIZED
CONNECTOR
LAMP CIRCUIT BOARD
TEST PANEL
FIXTURE HOUSING
R E D
V I O L E T
B R O W N
DIAGNOSTICS INDICATOR
CHARGE LIGHT
TEST SWITCH
A C F I X T U R E S
POWER
B L U E
MODULE
B R O W N
POLARIZED
CONNECTOR
OUTPUT 2.4-5 VDC
HOUSING
Note: Turn off AC power and disconnect battery before
servicing unit.
Battery Replacement
Remove fixture from J-Box. Locate battery wiring and
disconnect 2- pin polarized battery plug. Pry battery
out of cavity to release hook and loop fastener. Replace
battery, reconnect battery plug and replace fixture.
Power Module Replacement
Remove fixture from J-Box. Remove two #8-32 screws
to J-Box and remove Power Module Assembly from J-
Box.Disconnect wire nuts or push nut connectors to AC line
inputs. To replace with new Power Module, reverse this
sequence.
BATTERY DIAGNOSTIC FUNCTIONS:
Microprocessor programmed to perform tests as follows:
Continuous
Monitoring w/ 1
Second Sampling
Lamp
Connections
Battery
Connections
SELF- TEST DIAGNOSTIC FUNCTIONS
NORMAL FULL CHARGE
NORMAL FAST CHARGE
FAILED BATTERY
FAILED LAMP
FAILED TRANSFER
FAILED CHARGER
-4-
Series CAEBB
NEUTRAL
LINE
120-277 VAC
G R E E N
GROUND
2-PIN POLARIZED
CONNECTOR
LAMP CIRCUIT BOARD
FIXTURE
Every
Every
28 Days
12 Months
Full 90 minute
Transfer switch
emergency
function
operation test
with test/ fail
Battery discharge
and manual
rate under
report signal
full load
Test switch
indicator
function
STATUS LED DISPLAY
GREEN ON
ORANGE ON
RED FLASH FAST
GREEN FLASH
ORANGE FLASH
RED FLASH SLOW
06.16.00
