INSTRUCTION MANUAL
Nijverheidsstraat 11
1840 Londerzeel/Belgium
Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351
Fax: +32 (0)52 303 739
E-mail: info@betontrowel.com
BE 0821.249.312
www.betontrowel.com
Beton Trowel nv

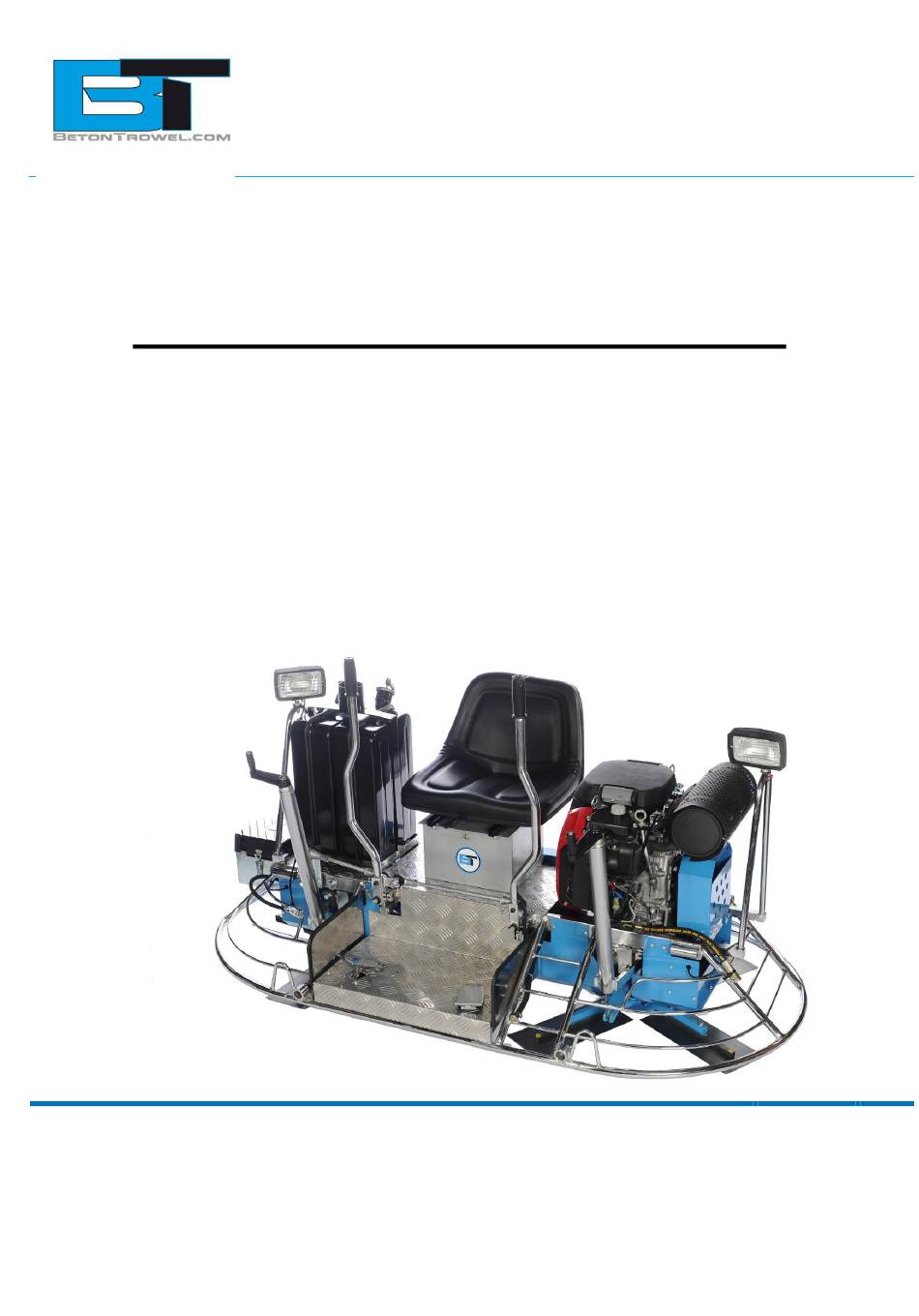

RIDE ON POWER TROWEL
BT900 2PFH Low rider
BT900H 2PFH Low rider
–
BNP FORTIS:
BE81 0015 9813 5624
ING:
-
GEBABEBB
BE
BBRUBEBB
Pag.
1/35

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RIDE ON BT900 2PFH and is the answer not in the manual?

Questions and answers

Related Manuals for Beton Trowel RIDE ON BT900 2PFH

Summary of Contents for Beton Trowel RIDE ON BT900 2PFH

  • Page 1 Beton Trowel nv INSTRUCTION MANUAL RIDE ON POWER TROWEL – BT900 2PFH Low rider BT900H 2PFH Low rider Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com...
  • Page 2 Use this guide along with the parts lists attached to locate and identify components of your trowel. When ordering replacement parts, be sure to provide the model number and serial number from the trowel. Copyright © Copyright 2011 by Beton Trowel. Contact BETON TROWEL Nijverheidsstraat 11...

  • Page 3: Foreword

    Foreword Quality assurance / machine break in The Beton Trowel Ride-on Trowel is the product of extensive engineering development designed to give long life and unmatched performance. Once machines are fully assembled, a run-in test is performed to ensure quality standards of the highest level.

  • Page 4: Table Of Contents

    Beton Trowel nv Table of contents Foreword Safety precautions Assembly instructions Battery – Shipped dry – No acid Steering handle assembly Pitch control Assembly Seat Assembly Transporter Assembly Operating Instructions Starting procedures – warm temperatures Starting procedures – cold temperatures...

  • Page 5: Safety Precautions

    Beton Trowel nv Safety Precautions  Always keep unauthorized, inexperienced, untrained people away from this machine.  Rotating and moving parts will cause injury if contacted. Make sure guards are in place. Keep hands and feet away from moving parts.

  • Page 6: Assembly Instructions

    Beton Trowel nv Assembly Instructions Battery – Shipped dry – No acid Connect and secure the battery cables before attempting starting procedures. Steering handle assembly The steering handles are shipped ready to connect. Position the handles over the handle sleeves so that the set-screws (2 per handle) are lined up with the tapped holes on the sleeves.

  • Page 7: Seat Assembly

    Beton Trowel nv Seat Assembly Remove protective wrapping from seat. The seat is now ready to secure to the frame using included washers and hex nuts. If the seat adjuster is ordered, the slider bars must be positioned between the seat and the frame using included screws to secure the seat to the sliders, and then securing the sliders to the frame as indicated above.

  • Page 8: Operating Instructions

    Beton Trowel nv Operating Instructions Starting procedures – warm temperatures  Prior to starting the trowel, check the engine and gearbox oil levels. Be sure the fuel tank is full. Fuel is not shipped with the unit. Before attempting to start, fill the fuel tank.

  • Page 9: Steering

    Beton Trowel nv Steering Guiding the machine on the slab is quite simple but does require some familiarity before actually working with the machine. The controls respond as shown in figure 2a below. Test the machine on a finished section of the floor, with the...

  • Page 10: Float/Trowel Pitch Setting

    Once you are familiar with the steering functions on a flat floor, you are ready to combine the steering with float/trowel pitch settings to produce the finish you require. The pitch adjustment feature of the Beton Trowel RIDE-ON TROWEL permits quick and accurate pitch changes of the finishing/float blades, without having to stop the machine.

  • Page 11: Transporter Use

    Beton Trowel nv Transporter Use The transporter is designed to be used on the job site only. Do not use it to tow the machine offsite. The transporter has pick-up brackets located on the inside of the wheels which should be positioned under the pick-up points on the frame. Before connection, the handle will be pointing upwards at approximately a 45 degree angle.

  • Page 12: Trowel Arm Adjustment Fixture

    Beton Trowel nv Trowel arm adjustment fixture 1) 10411 – Trowel arm 6) 10507 – Bolt 2) 10817 – Lift lever 7) 10816 – Jam nut 3) 10808 – Jam nut 8) 10815 – Carriage bolt 4) 10809 – Set screw 9) 10832 –...

  • Page 13: Adjustment Procedure

    Beton Trowel nv Adjustment Procedure  Remove all trowel arm assemblies (1 & 2 arm and attached lift lever) from suspected maladjusted spider plate.  Remove lift lever (2) from trowel arm (1) by first loosening jam nut (3) then square head screw (4).

  • Page 14: Trowel Arm Adjustment Screw

    Beton Trowel nv Trowel arm adjustment screw When assembling trowel blades to trowel arms, the adjustment screw should NEVER protrude below the under-side surface to a trowel arm except when using for emergency on-site adjustment to level trowel blades. If the adjustment screw is not flush with the underside of the trowel arm, then this will cause the power trowel to bounce and vibrate especially at high speed.

  • Page 15: Maintenance

    After reading through this manual thoroughly, you will find that you can do some of the regular maintenance yourself. However, when in need of parts or major service, be sure to see Beton Trowel.  GENERAL •...

  • Page 16: Lubrication

    Beton Trowel nv  BELT TENSIONING SPECIFICATIONS NOTE: Belts may become slightly loose after the first few hours of operation. It is important to retension the belts with the tool provided and use the table given as reference. Lubrication  ENGINE OIL The long life and successful operation of any piece of machinery is dependent on frequent and thorough lubrication.

  • Page 17: Maintenance Plan

    Beton Trowel nv Maintenance plan Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag.
  • Page 18 Beton Trowel nv Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag. 18/35...

  • Page 19: Service

    Beton Trowel nv Service Due to the nature and environment of use, power trowels are exposed to severe operating conditions. Some general maintenance guidelines will extend the useful life of your trowel.  The initial service for your power trowel should be performed after 25 hours of use, at which time your mechanic (or authorized repair shop) should complete all of the recommended checks in the schedule above.

  • Page 20: Labels

    Beton Trowel nv Labels Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag. 20/35...

  • Page 21: Specifications

    Beton Trowel nv Parts Framework and guard ring Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com...
  • Page 22 Beton Trowel nv FRAMEWORK & GUARD RING PARTS LIST Item No. Part No. Description Qty. 836H0453 SEAT 836H0879 SEAT FRAME 836H0538 COVER PLATE, BOTTOM 836H1436 FOOT PLATE 836H0539L COVER PLATE, LEFT 836H0539R COVER PLATE, RIGHT 8360459 BELT GUARD 8360463 BATTERY COVER...
  • Page 23 Beton Trowel nv FRAMEWORK & GUARD RING PARTS LIST cont. Item No. Part No. Description Qty. 9330 WASHER 9097 BOLT 9380 BOLT 9236 9040 BOLT Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com...
  • Page 24 Beton Trowel nv Power system Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag.
  • Page 25 Beton Trowel nv POWER SYSTEM PARTS LIST Item No. Part No. Description Qty. 8360314 PULLEY 8361458 MOUNGTING PLATE, PULLEY 8361125 ADJUST PLATE, PULLEY 8361461a TENSIONER 8361610 BOLT 8361423 ENGINE MOUNTING BAR 8361424 ENGINE MOUNTING BAR 836H1423 ENGINE MOUNTING BAR 836H1424...
  • Page 26 Beton Trowel nv Steering system Item No. Part No. Description Qty. 8360484a BRACKET, LEFT 8360491a BRACKET, RIGHT 8360494a BRACKET 8360485a BOLT 836H0492a BOLT B8360470 PITCH HANDLE 4465502 BUSHING 4365503 ADJUST SHAFT 4365504 WASHER 4465505 ADJUST SHAFT BUSHING 8360973 PITCH CONTROL CABLE...
  • Page 27 Beton Trowel nv Gearbox assembly left Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag.
  • Page 28 Beton Trowel nv GEARBOX ASSEMBLY (LEFT) PARTS LIST Item No. Part No. Description Qty. 8364003L GEARBOX CASING, LEFT 8364005 GEARBOX COVER 4364006 PRESSURE WASHER 4364007 BOLT 4364100 RELEASE VALVE 4464008 SHIMMING 8364010L BRONZE GEAR, LEFT 4465509 SHAFT, YOKE ARM 4465510...
  • Page 29 Beton Trowel nv Gearbox assembly right Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag.
  • Page 30 Beton Trowel nv GEARBOX ASSEMBLY (RIGHT) PARTS LIST Item No. Part No. Description Qty. 8364003R GEARBOX CASING, RIGHT 8364005 GEARBOX COVER 4364006 PRESSURE WASHER 4364100 RELEASE VALVE 4464008 SHIMMING 8364010R BRONZE GEAR, RIGHT 4465509 SHAFT, YOKE ARM 4465510 YOKE ARM...
  • Page 31 Beton Trowel nv Fuel en water system Item No. Part No. Description Qty. 8361144 MOUNTING PLATE, WATER PUMP 8361067 WATER PUMP 8361476 VALVE 8361142 SOLENOID PILOT ACTUATED VALVE 8361071 JOINT 8360589 OIL PIPE 8360754 WATER PIPE Nijverheidsstraat 11 BNP FORTIS:...
  • Page 32 Beton Trowel nv Hydraulic system Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag.
  • Page 33 Beton Trowel nv HYDRAULIC SYSTEM PARTS LIST Item No. Part No. Description Qty. 9791 OIL FILTER 9791-DP SHIMMING 9793 AIR FILTER 9793-DP SHIMMING 9795 VAVLE 9796 HYDRALIC PUMP 9798 HYDROCYLINDER 9801-Z HYDRAULIC CONTROL LEVER 9801-Y HYDRAULIC CONTROL LEVER 9803 SPILL VAVLE...
  • Page 34 Beton Trowel nv Oil house Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag.
  • Page 35 Beton Trowel nv Item No. Part No. Description Qty. 836RG-1 HOSE 836RG-2 HOSE 836RG-3 HOSE 836RG-4 HOSE 836RG-5 HOSE 836RG-6 HOSE 836RG-7 HOSE 836RG-8 HOSE 836RG-9 HOSE 836RG-10 HOSE 836RG-11 HOSE 836RG-12 HOSE 836RG-13 HOSE 836RG-14 HOSE 836RG-15 HOSE Nijverheidsstraat 11...
