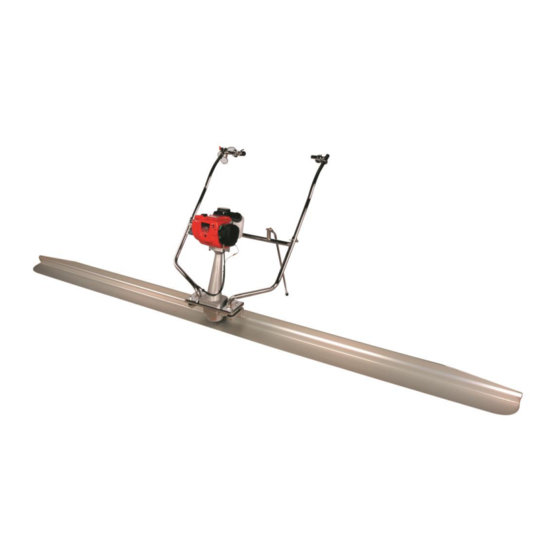

  • Page 1 Beton Trowel nv INSTRUCTION MANUEL BETON SCREED BTS-35H Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com...
  • Page 2 Use this guide along with the parts lists attached to locate and identify components of your screed. When ordering replacement parts, be sure to provide the model number and serial number. Copyright © Copyright 2011 by Beton Trowel. Contact BETON TROWEL Nijverheidsstraat 11...
  • Page 3 This will serve to further break in the machine on your specific application, as well as provide you with additional practice using the machine. We thank you for the confidence you have placed in us by purchasing a Beton Trowel machine and wish you many years of satisfied use.

  • Page 4: Table Of Contents

    Beton Trowel nv Table of contents Foreword Safety precautions Setup of the screed Operation Operation principal Starting procedure: warm climate Starting procedure: cold climate Stopping procedure Operation Lubrication Maintenance Maintenance plan Service Labels Specifications Technical data sheet Parts Nijverheidsstraat 11...

  • Page 5: Safety Precautions

    Beton Trowel nv Safety precautions  Do not use the screed, fitted with a gasoline engine, indoors or in poorly ventilated areas. Ensure there is sufficient ventilation to avoid inhaling exhaust gasses, as they may be harmful.  Avoid touching the electrical cables or spark plug cap while the engine is running to avoid electric shock.
  • Page 6 Beton Trowel nv Initial setup Upon removing the screed from its box for the first time, you will find the base unit with the handles removed for shipping. The left handle is sitting freely in the box, while the right handle is attached to the base unit by its electrical cable and throttle control cable.

  • Page 7: Operation

    Beton Trowel nv Operation Operating principal An eccentric weight mounted on the exciter shaft contained within the vibration housing is driven at high speed by a clutch drive system. This high speed shaft revolution causes the rapid vibratory motion of the blade as well as imparting a forward motion.

  • Page 8: Lubrication

    Beton Trowel nv Operation  On level surfaces the screed moves forward or backward rapidly, depending on the tilt of the handle. On uneven surfaces or inclines, light forward pressure on handle may be required to assist the screed in moving. Lean the handle up or away from you to make the screed travel toward you (i.e.

  • Page 9: Maintenance

    Beton Trowel nv Maintenance Maintenance plan Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag.

  • Page 10: Service

    Beton Trowel nv Service Due to the nature and environment of use, the machines could be exposed to severe operating conditions. Some general maintenance guidelines will extend the useful life of your Screed.  It is highly recommended that all maintenance and repairs are carried out by approved dealers.

  • Page 11: Labels

    Beton Trowel nv Labels Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag. 11/14...

  • Page 12: Specifications

    Beton Trowel nv Specifications Technical data sheet MODEL BTS35H ENGINE HONDA GX35 1.3 HP 4-STROKE WEIGHT (WITHOUT BLADE) 12.7 KG SOUND POWER 50 dBA VIBRATION (HANDLE) < 9 M/S SQ BLADE SIZE WEIGHT 1.2 M 2.9 KG 1.8 M 4.4 KG 2.4 M...

  • Page 13: Parts

    Beton Trowel nv Parts Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag. 13/14...
  • Page 14 Beton Trowel nv Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag. 14/14...
