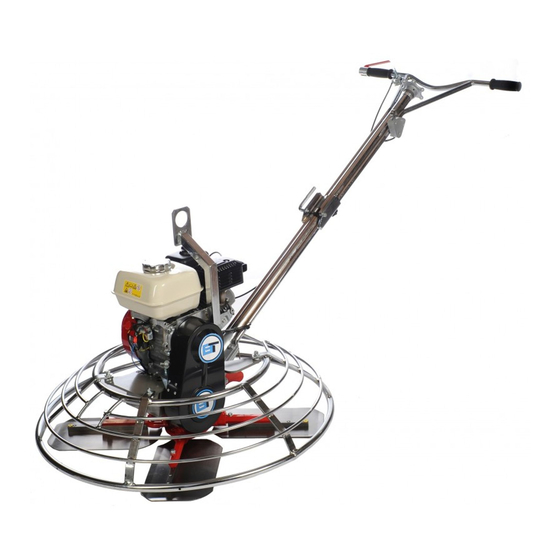

Beton Trowel BT90HF160 Instruction Manual

Power trowel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
BT90H160 – BT90H270 – BT90E
BT90HF160 – BT90HF270 – BT90YDK
Nijverheidsstraat 11
1840 Londerzeel/Belgium
Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351
Fax: +32 (0)52 303 739
E-mail: info@betontrowel.com
BE 0821.249.312
www.betontrowel.com
Beton Trowel nv
POWER TROWEL
BNP FORTIS:
BE81 0015 9813 5624
ING:
-
GEBABEBB
BE
BBRUBEBB
Pag.
1/32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT90HF160 and is the answer not in the manual?

Questions and answers

Related Manuals for Beton Trowel BT90HF160

Summary of Contents for Beton Trowel BT90HF160

  • Page 1 Beton Trowel nv INSTRUCTION MANUAL POWER TROWEL BT90H160 – BT90H270 – BT90E BT90HF160 – BT90HF270 – BT90YDK Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com...
  • Page 2 Use this guide along with the parts lists attached to locate and identify components of your trowel. When ordering replacement parts, be sure to provide the model number and serial number from the trowel. Copyright © Copyright 2011 by Beton Trowel. Contact BETON TROWEL Nijverheidsstraat 11...

  • Page 3: Foreword

    We thank you for the confidence you have placed in us by purchasing a Beton Trowel machine and wish you many years of satisfied use. Nijverheidsstraat 11 BNP FORTIS:...

  • Page 4: Table Of Contents

    Beton Trowel nv Table of contents Foreword Operation Safety precautions BT90E OPERATION (Floating) OPERATION (Finishing) STARTING PROCEDURE: *WARM CLIMATE STARTING PROCEDURE: *COLD CLIMATE STOPPING PROCEDURE TRANSPORTING Lubrication Storage Maintenance Preventative maintenance and routine service plan Maintenance plan Service Labels Specifications...

  • Page 5: Operation

    Beton Trowel nv Operation The trowel has been developed to float and finish the edges of concrete floors, up to perimeter walls, around columns and small areas, eliminating tiring hand troweling and increasing overall productivity and quality. Safety precautions ❖ Always keep unauthorized, inexperienced, untrained people away from this machine.

  • Page 6: Bt90E

    Beton Trowel nv BT90E Electric Power Trowel Operating Instructions. The BT90 Electric 230v Power Trowel is driven by a 2.2 Kw Motor. As such it requires a correct power source to operate the machine. Note that the machine can draw as much as 24 Amperes on initial start up if the machine has been standing stationary on wet concrete.

  • Page 7: Operation (Floating)

    Beton Trowel nv OPERATION (Floating) When the slab has set sufficiently firm that the operator’s footprint leaves a very slight depression on the surface of the slab, it is ready for the floating operation. Guiding the machine on the slab is very simple, a slight upward lift of the handle causes the machine to travel to the left.

  • Page 8: Starting Procedure: *Cold Climate

    Beton Trowel nv STARTING PROCEDURE: *COLD CLIMATE Follow same procedure as above but allow longer warm-up period – 3 to 5 minutes. In cold weather, oil is much heavier to move and requires more time to work its way into the moving parts.

  • Page 9: Storage

    Beton Trowel nv STORAGE The following steps should be taken to prepare your trowel for extended storage. ❖ Close fuel shut off valve. ❖ Siphon excess gasoline from tank. ❖ Start engine until it stops from lack of fuel. This will use up all the fuel in the carburetor and prevent formation of deposits due to evaporation of fuel.

  • Page 10: Maintenance

    Beton Trowel nv Maintenance Preventative maintenance and routine service plan. This trowel has been assembled with care and will provide years of service. Preventative maintenance and routine service are essential to the long life of your trowel. Your dealer is interested in your new machine and has the desire to help you get the most value from it.

  • Page 11: Maintenance Plan

    Beton Trowel nv Maintenance plan Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag.

  • Page 12: Service

    Beton Trowel nv Service Due to the nature and environment of use, the machines could be exposed to severe operating conditions. Some general maintenance guidelines will extend the useful life of your trowel. ❖ The initial service for your trowel should be performed after 25 hours of use, at which time your mechanic (or authorized repair shop) should complete all of the recommended checks in the schedule above.

  • Page 13: Labels

    Beton Trowel nv Labels Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag. 13/32...

  • Page 14: Specifications

    Beton Trowel nv Specifications Technical data sheet MODEL BT90H(F)160 BT90H(F)270 BT90E OPERATING 90 CM (36”) 90 CM (36”) 90 CM (36”) DIAMETER ELECTRIC 3 PHASE HONDA GX160 HONDA GX270 ENGINE OPTIONS 2.2 KW 5.5 HP 9 HP VARIABLE SPEED WEIGHT...

  • Page 15: Parts

    Beton Trowel nv Parts Standard Handle Assembly. Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com...
  • Page 16 Beton Trowel nv Item No. Part No. Description Qty. 4365501 KNOB 9024 4365503 Threaded Rod 9025 BEARING 4365502 BUSHING 9026 BOLT 9022 SPRING WASHER 9033 SPRING WASHER 4365504 WASHER 9027 WASHER 4365505 ALUMINIUM BUSHING 9028 BOLT 9030 4405512 PITCH CONTROL CABLE...
  • Page 17 Beton Trowel nv 9017 BOLT 9018 BOLT 9016 9044 BOLT 9045 9046 SPRING WASHER 9047 WASHER Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com...
  • Page 18 Beton Trowel nv Folding handle assembly Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag.
  • Page 19 Beton Trowel nv Item No. Part No. Description Qty. 4365501 KNOB 9024 4365503 THREADED ROD 9025 BEARING 4365502 BUSHING 9026 BOLT 9022 SPRING WASHER 9033 SPRING WASHER 4365504 WASHER 9027 WASHER 4365505 ALUMINIUM BUSHING 9028 BOLT 9030 4405512 PITCH CONTROL CABLE...
  • Page 20 Beton Trowel nv 9784 PLASTIC TUBE 9800 PLASTIC TUBE 4365110 LOCKING GRIP 9098 BOLT 9038 WASHER 4405100X LOWER HANDLE ASSY 4405300 BRACKET 9017 BOLT 9018 BOLT 9016 9044 BOLT 9045 9046 SPRING WASHER 9047 WASHER Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624...
  • Page 21 Beton Trowel nv Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag. 21/32...
  • Page 22 Beton Trowel nv Item No. Part No. Description Qty. 9050 SEAL 9048 BEARING 9051 4364011 MAIN SHAFT 9052 4364003 GEARBOX CASING 4364010 WORM GEAR 9049 BEARING 4364006 WASHER 4364007 BOLT 4364008 PLASTIC SHIMMING 4364005 GEARBOX COVER 9043 BOLT 4364100 OIL RELIEF VALVE...
  • Page 23 Beton Trowel nv 9061 BELT 9161 BELT(9HP) 4363002 DRUM 4463002 DRUM(9HP) 4363004 WEIGHT 4463004 WEIGHT(9HP) 4363003 FACE PLATE 4463003 FACE PLATE(9HP) 9078 BOLT 9478 BOLT(9HP) 4363005 WASHER 9079A BOLT 9146 BOLT(9HP) 4362100 BELT GUARD 4362100A BELT GUARD(9HP) 4368000 HOOK LIFT...
  • Page 24 Beton Trowel nv Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag. 24/32...
  • Page 25 Beton Trowel nv Item No. Part No. Description Qty. FP9404P/NP 4366005 SPIDER PLATE F90416 FINISH BLADE 4366007a ADJUSTING NUT 4366911 PLASTIC THREAD PROTECTOR 4366001A TROWEL ARM 9215 BOLT 9037 SPRING WASHER 9038 WASHER 9540 BOLT 9059 9073 SEAL 4366006 LIFTING LEVER...
  • Page 26 Beton Trowel nv 4364002 BUSHING CAP 9041 BOLT 9044 BOLT(9HP) 9037 SPRING WASHER 9046 SPRING WASHER(9HP) 9038 WASHER 9047 WASHER(9HP) 9036 9045 NUT(9HP) 4364004 WASHER 9159 WASHER(9HP) 9042 BOLT 4367000 GUARD RING Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624...
  • Page 27 Beton Trowel nv SPECIAL STOP SYSTEM BT90. (REPLACES CLUTCH WITH JOCKY PULLEY DRIVE SYSTEM) Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com...
  • Page 28 Beton Trowel nv Item No. Part No. Description Qty. 9220 BOLT 9330 WASHER 9022 SPRING WASHER 9448 363422 BELT GUARD 9321 BOLT 9047 WASHER 9059 363491 TENSIONER 9474 BEARING 9412 RETAINER RING 363490 BUSHING 9746 BOLT 9448 9747 BOLT 9038...
  • Page 29 Beton Trowel nv ELECTRIC WIRING DIAGRAM Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com BE 0821.249.312 www.betontrowel.com Pag.
  • Page 30 Beton Trowel nv PARTS SPECIAL TO MODEL BT90YDK YANMAR LD48 DIESEL ENGINE Nijverheidsstraat 11 BNP FORTIS: BE81 0015 9813 5624 GEBABEBB 1840 Londerzeel/Belgium ING: BBRUBEBB Tel: +32 (0)52 315 350 - Tel: +32 (0)52 315 351 Fax: +32 (0)52 303 739 E-mail: info@betontrowel.com...
  • Page 31 Beton Trowel nv Item No. Part No. Description Qty. 48N2100 Belt guard B4363000 Clutch 48N8000 Lift hook 48N5200 Shut off assy 48N9000 Engine deck 9522A Throttle cable 48NA Bolt kits 9047 Washer 9091 9037 Spring washer 9375 Bolt 9079 Bolt...

  • Page 32: Declaration Of Conformity

    Gelijkvormighheidscertificaat / Declaracion de Conformidad / Declaracao de Concormidade / Dichiarazione Di Conformita Model : BT90 We Beton Trowel NV Declare under our sole responsibility that the product to which this declaration relates is in conformity with the following standards or other normative documents.
