Gigabit Desktop Switch
Gigabit Desktop Switch

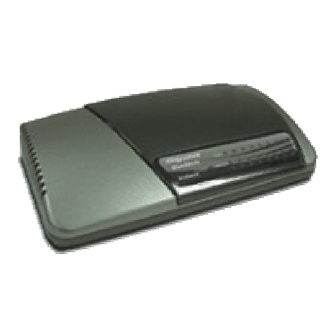

5 / 8 port Gigabit Desktop Switch
5 / 8 port Gigabit Desktop Switch
1000/100/10Mbps
Supports Auto-MDI/MDI-X
Each of the switch's ports is able to auto sense whether your cable is
the normal or cross over type, so you don't need to worry about having
the wrong cables.
Supports Full-Wire Speed and Flow Control
The switch's non-blocking architecture provides your network with full-
wire speed connections, also the switch's flow control (back
pressure/IEEE802.3x) ensures reliable packet transfer and prevents
packet lost, thus increasing reliability and performance.
Non-Blocking architecture
The switch performs at full duplex on all ports. This feature provides
full wire speed to the connected devices and greatly increases the
network performance.
Compact size designed
The switch's compact designed allow you to save precious space in
your crowded office
Advertisement
Table of Contents
Related Manuals for Edimax ES-5500P
Summary of Contents for Edimax ES-5500P
- Page 1 5 / 8 port Gigabit Desktop Switch 1000/100/10Mbps Supports Auto-MDI/MDI-X Each of the switch's ports is able to auto sense whether your cable is the normal or cross over type, so you don't need to worry about having the wrong cables.
- Page 2 10/100/1000M Port MAC Chip MAC address Buffer Memory Power Dimension Temperature Humidity ： IEEE802.3 IEEE802.3u IEEE803.ab 5 / 8 Port Gigabit Switch 1000/100/10 M (RJ-45) Auto-MDI/MDI-X Broadcom BCM5388 437.5KBytes External power adapter 30(H) × 187(W) × 100(D) mm 10-55 0-90% (Non-Condensing)
