Page 1: Physical Description

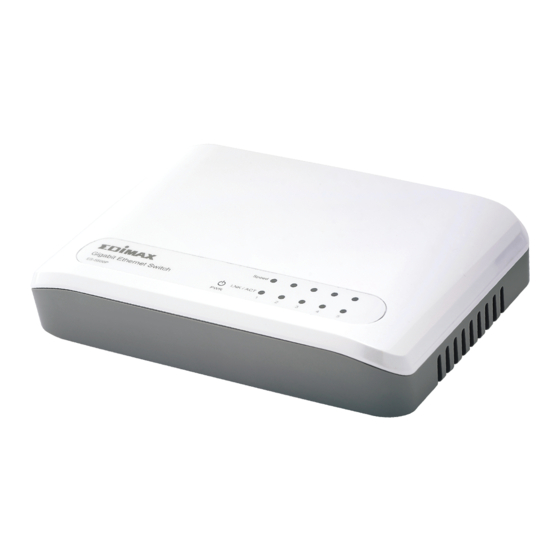

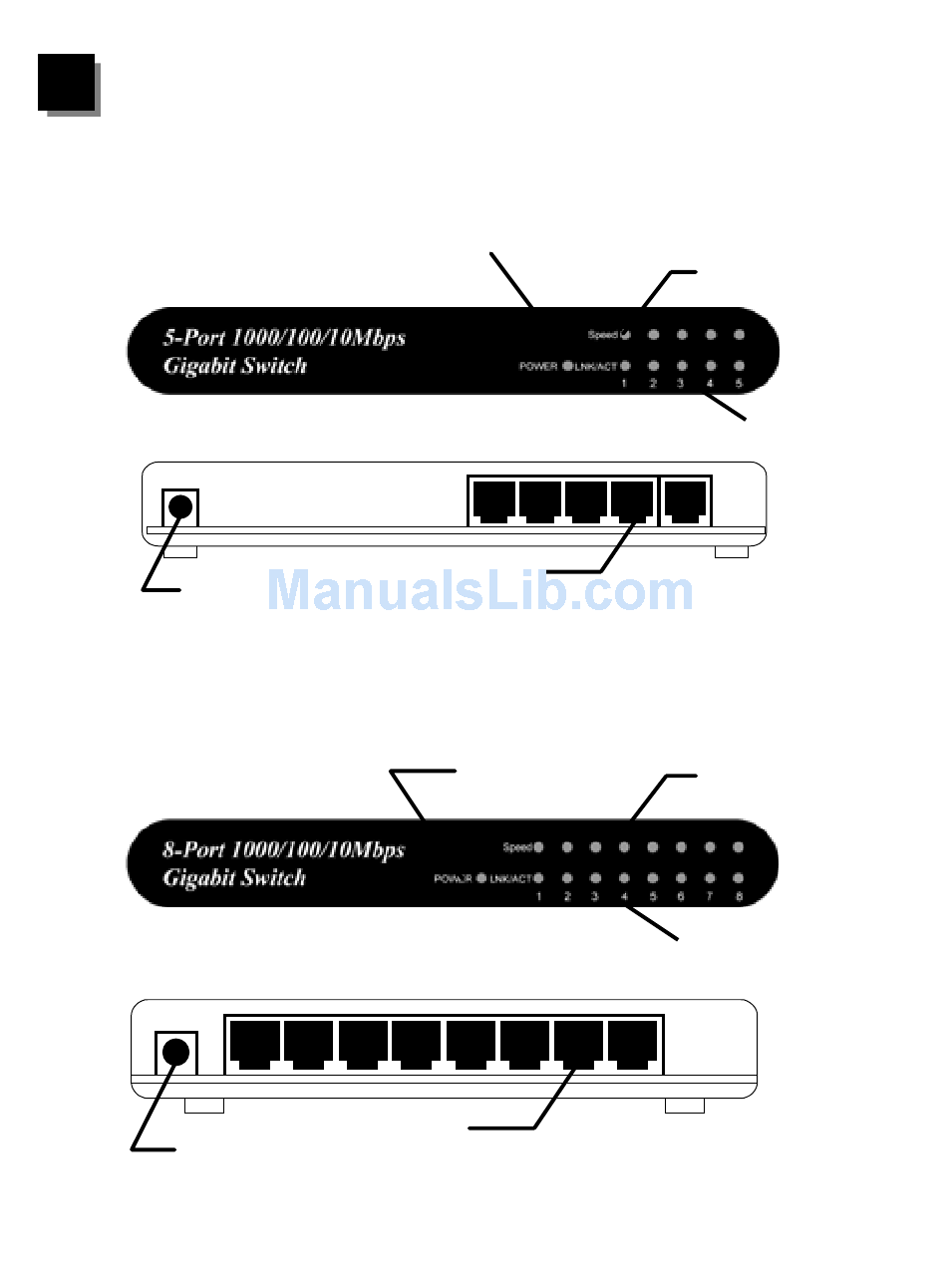

Physical Description (1) Panel Power LED 1000/100/10Mbps LED 5-Port Link/Activity LED RJ45 Connectors Power Connector Power LED 1000/100/10Mbps LED 8-Port Link/Activity LED RJ45 Connectors Power Connector Figure 1-1 Panel description... - Page 2 (2) LED 5/8 Port Gigabit Switch Color Green (Power) LNK/ACT Green (Link/Activity) SPEED (10/100/1000M) Status Flash Green Yellow Table 1-1 LED description Description Power is supplied No power A valid link is established Data packets received No link is established...
- Page 3 2. Connecting to network devices The RJ-45 ports on the switch support Auto-MDI/MDI-X function which allows using straight-through or cross-over type cables to connect this switch to workstation or hub. Connect one end of the network cable to the RJ-45 port on the rear panel, and connect the other end of the network cable to the RJ-45 port on the network device.
- Page 4 2. Link/Activity is not lit when connect to 1000/100Mbps device Check the power switch of the network device attached to the switch; make sure it is turned ON. Check the network cable; make sure it is properly connected to the switch and the network device.
