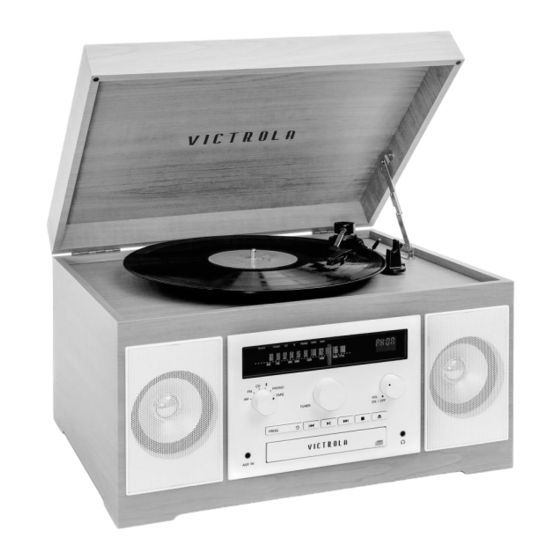

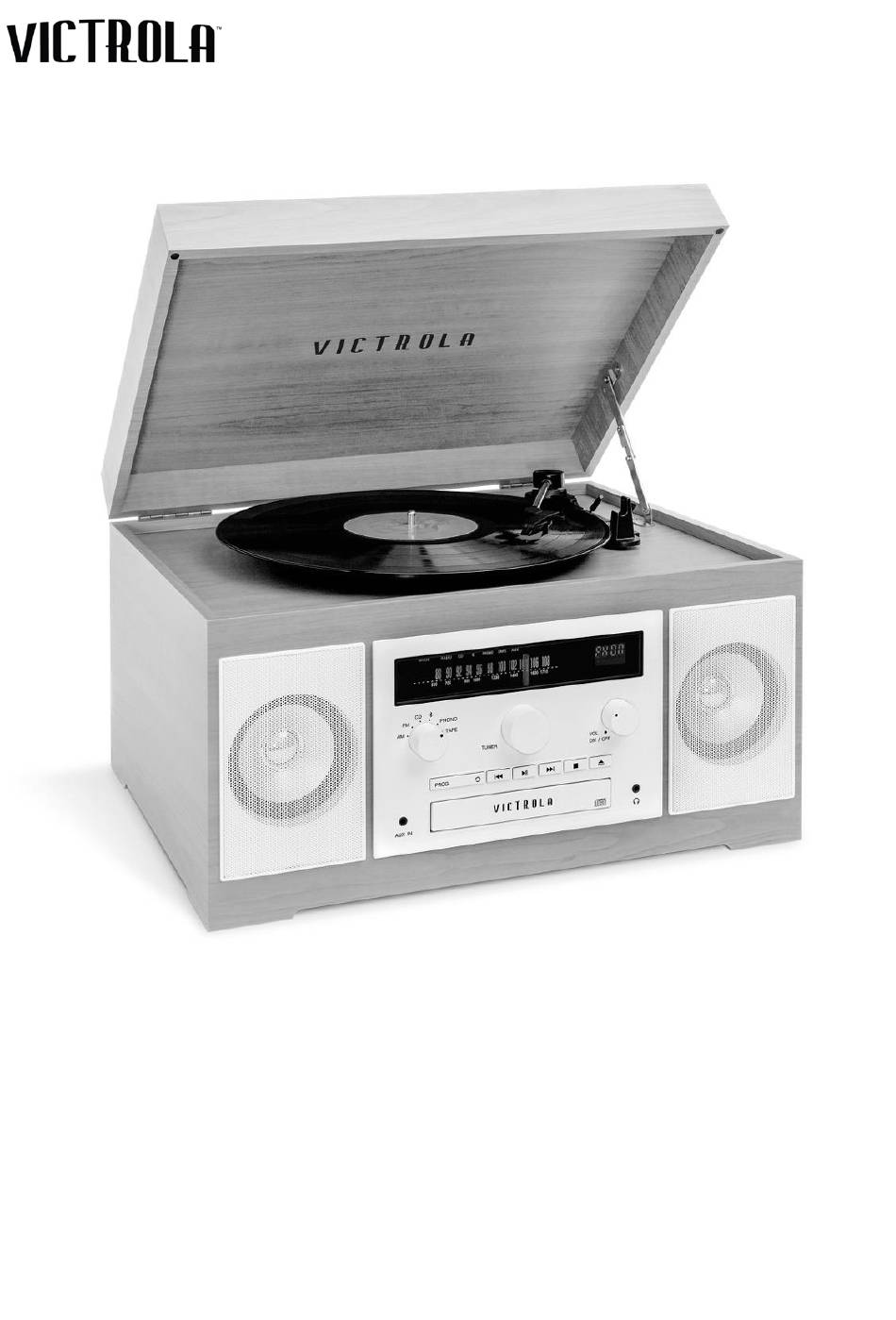

- Page 1 T H E S O N O M A MODEL: VTA-570B INSTRUCTION MANUAL PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE AND KEEP IT FOR FUTURE REFERENCE.
-
Page 2: Important Safety Instructions
CAUTION: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. WARNING: To prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. WARNING: Invisible laser radiation when open and interlock failed or defeated. - Page 3 -This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. -Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside.
-
Page 4: Product Overview
Product Overview Front View “DISPLAY” Function knob: Rotate to selection your desired function (AM / FM / CD / Bluetooth / PHONO / TAPE) AUX IN JACK PROG: In CD mode, while the CD is stopped, press to program tracks. Repeat: In CD mode, press to select a repeat mode. - Page 5 Right Side View CASSETTE FF & EJECT: Press halfway to fast forward, press all the way to end and eject the tape. Rear View FM ANTENNA Extend to receive better radio reception. AC Power Cord Connect the AC plugs into a wall outlet. You’re strongly recommended that this product should be operated only from the type of power source indicated on the marking label.
- Page 6 Parts of the Turntable Turntable Platter Spindle 45 RPM adaptor Cue-lever. Use this lever to lift the tone arm. Speed Selector Switch Tone Arm: Before use, completely loosen the twist tie on the tone arm and uplift tone arm. Tone Arm Rest Stylus.
-
Page 7: Setup / Basic Operation
Setup / Basic Operation Setup 1. Remove white protective needle cover by gently pulling towards front of unit. 2. Remove any packaging materials from the unit. 3. Connect the AC power cord to a wall outlet. Note: -You’re strongly recommended that this product should be operated only from the type of power source indicated on the marking label. -
Page 8: Listening To The Radio
Listening to the Radio 1. Rotate the Function Knob to select “AM” or “FM”. The radio indicator will light up. 2. Tune to the desired station using the Tuner Knob. Listening to a CD Rotate the Function Knob to select CD. The LED Display will display “Cd--”. (Note: When no disc is set, “nodc”... -
Page 9: Listening To An External Audio Device (Bluetooth Mode)
NOTE: The effective distance between your external device and this apparatus is 10 meters (33ft). 4. Wait a moment for “Victrola Sonoma” to appear on the devices list. Press “Victrola Sonoma” to connect to the unit. Sometimes a window will ask you for a password. Fill in “0000” or “1234” then press “OK”... -
Page 10: Listening To A Cassette Tape
Listening to a Cassette Tape 1. Rotate to select “TAPE” function. The Tape Indicator will light up. 2. Load an audio cassette tape into the unit (located on the right side of the unit). Playback will automatically begin. 3. Press the button halfway to Fast Forward the tape. Press the button lightly and playback will resume. - Page 11 How to Replace the Turntable Stylus (Replacement Needle # ITNP-LC1) The stylus should last about 50 hours under normal use. However, it is recommended that the stylus be replaced as soon as you notice a change in sound quality. Prolonged use of a worn-out stylus may damage the record.
-
Page 12: Specifications
Specifications GENERAL Power Requirements AC 120V~60Hz Power Consumption x 13.77 in x 10 in Dimensions (W x H x D) 17.5 in (approx.) x 350 mm x 254 mm 445 mm (approx.) Weight 15.54 lbs (approx.) 7.05 (approx.) AMPLIFIER Output Power 5 W + 5 W Frequency Response 60 to 20,000 Hz... -
Page 13: Troubleshooting Guide
Troubleshooting Guide Symptom Possible Cause Solution Unit will not power Unit is unplugged. Connect the unit to • • • the AC power supply. No sound output The volume level is set too low. Adjust the volume. • • • from speakers. - Page 14 Please note: As a result of continual improvements, the design and specifications of this product are subject to change without notice. Victrola is a registered trademark of Innovative Technology Electronics, LLC. Bluetooth is a registered trademark of Bluetooth SIG, Inc.
-
Page 15: Fcc Statement
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 16: Warranty
Except as limited below, if the product proves defective in either material or workmanship within one (1) year from the date of purchase, Victrola will replace the product at no charge. If the product model is no longer available and cannot be replaced with an identical model, Victrola will issue a merchandise credit for the purchase price to be redeemed at victrola.com.
