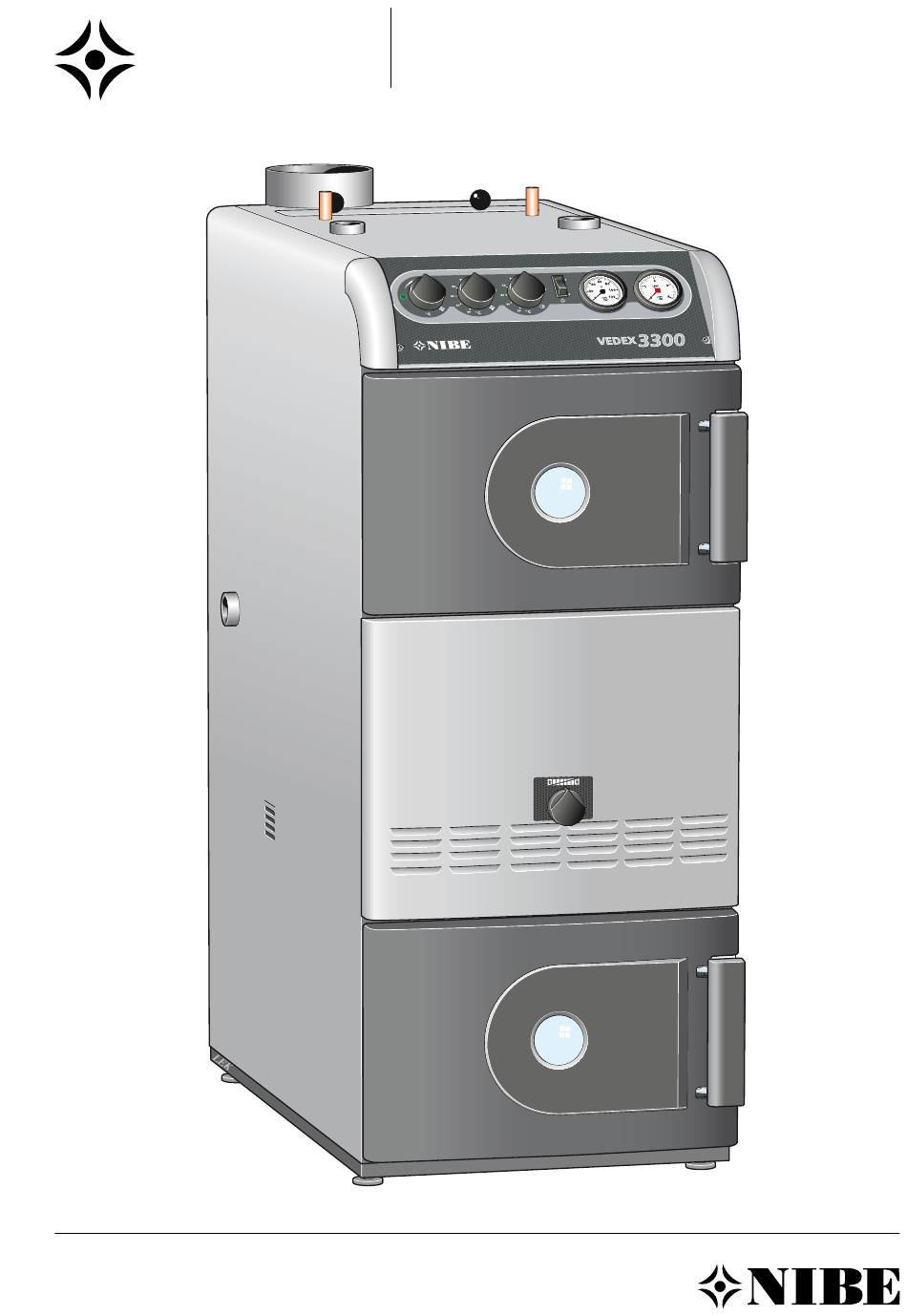

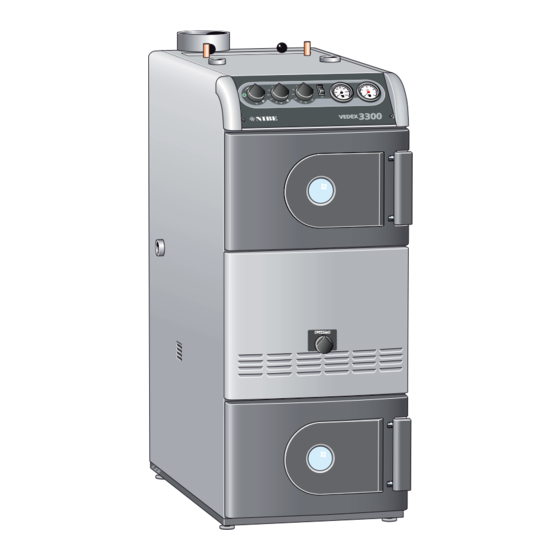

- Page 1 MOS GB 0733-1 INSTALLATION AND MAINTENANCE INSTRUCTIONS VEDEX 3300 VEDEX 3300 M10528...
-
Page 3: Table Of Contents
Component location, front panel ___________________ 14 List of components _______________________________ 15 Enclosed kit _____________________________________ 16 Accessories ______________________________________ 16 Technical specifications ____________________________ 17 For the chimney sweep Sweeping Sweeping description _____________________________ 18 Fan ____________________________________________ 18 Cover plate ______________________________________ 19 VEDEX 3300... -
Page 4: For Home Owners
General Thank you for relying on NIBE to supply your boiler and congratulations on choos- ing VEDEX 3300, a high quality firewood boiler with a long service life, developed and manufactured in Sweden for Swedish conditions. In order to get the ultimate benefit from VEDEX 3300 you should read through these Installation and Maintenance Instructions. -
Page 5: System Diagram
Hot water SÄV and other buildings. Cold water The boiler is environmentally approved for wood firing to SÄV Safety valve the accumulator tank. VEDEX 3300 can be set for pellet Shut-off valve firing. Water heater Expansion vessel Product description Shunt valve VEDEX 3300 is a wood-fired boiler with induction flue gas fan. - Page 6 Boiler pressure gauge stops the flue gas fan. To prevent stationary losses via VEDEX 3300, reconnection to charge control without The boiler’s pressure is displayed here. The gauge is gradu- thermal valve is recommended. The flue gas thermostat, ated 0 - 4 bar with a red mark at 1.5 bar.
-
Page 7: Settings, Instructions And Maintenance
Take care to remove any burnt on ash remains in the trough. Also see ”For the chimney sweep”, under ”Sweeping” . Note! Ash can still contain glowing embers after a long time. Therefore, always use a non- inflammable container when emptying ash and soot. VEDEX 3300... -
Page 8: General Instructions
375,0 and efficiency of the boiler. Adjust the size of the wood to fit the hearth. Suitable 11,0 48,0 length of chopped wood for VEDEX 3300 is 0.5m. 115,0 164,0 The wood is placed on the ceramic grate. 208,0 The combustion process works by reverse combustion... -
Page 9: Lighting Instructions
Add approximately 4 kg of finely chopped kindling The following points should be observed for VEDEX 3300 ■ wood and then tightly screwed up newspapers on top. -
Page 10: For The Installer
VEDEX 3300 has a vertical flue pipe connection with an external diameter of 133 mm. Angled flue pipe supplied as VEDEX 3300 has inlets for primary air at the front and standard. secondary air on the sides of the boiler. Therefore, always... -
Page 11: Installing Ceramics
(C) and (D) followed by stones (E) and (F). Flame trough Open the combustion chamber door. Slide in the flame trough (A) on its guides under the ceramic grate. Note! The trough must be slid all the way into the cham- ber. VEDEX 3300... -
Page 12: Pipe Installation
The drain valve is installed next to connection (84). Drain by connecting a hose to the drain valve. Cooling coil VEDEX 3300 is supplied with cooling coil (22) for connec- tion to a temperature limiting valve. Refer to the manufac- turer’s instructions when installing. -
Page 13: Docking To The Accumulator
Motor valve Shut-off valve Control box Check valve SV1 Shunt valve CP1 Charge pump SV2 Mixer valve CP2 Circulation pump SÄV Safety valve ACCU ACCU Electrical cassette/immersion heater Temperature sensor EXP Expansion tank VVB Hot water heater Venting valve VEDEX 3300... -
Page 14: Electrical Installation
Electrical function To prevent stationary losses via VEDEX 3300, reconnection to charge control without thermal valve is recommended. Switch (45) set to position ”0” means that the boiler is off. -
Page 15: Technical Specifications
Technical specifications Dimensions Ø125 – 159 inv. min 250 R25 inv. R25 inv. Minimum distance Minsta avstånd till vägg: 250 mm to the wall: 300 mm R32 inv. Ø133 utv. Ø15 utv. Ø15 utv. R25 inv. R32 inv. VEDEX 3300... -
Page 16: Component Location, Boiler Section
3 st hål ø36 Hål Hål ål ø6 R25 inv. 11,0 R25 inv. 48,0 115,0 164,0 Ø133 utv. 208,0 267,6 327,0 345,3 Ø15 utv. Ø133 utv. 369,5 R25 inv. 375,0 Ø15 utv. R25 inv. Component location, front panel VEDEX 3300... -
Page 17: List Of Components
Return connection, or drain connection R32 int. Angled flue pipe, (standard) Vertical flue pipe, (accessory) Flue pipe connection Ø 133 ext. Door handle Fan transformer Fan capacitor 100 Secondary air inlet (Min 0.5m from combustible material on both sides) VEDEX 3300... -
Page 18: Enclosed Kit
1 x 6 kW immersion heater with control 1 x cold and hot water armature assembly Pellet combustion door Designed to replace the combustion chamber. Enclosed: 1 x cover for fan outlet 2 x cover discs for secondary air inlet Part no. 089 878 VEDEX 3300... -
Page 19: Technical Specifications
550 mm Filler door width 300 mm Filler door height 250 mm Max. permitted total current for connected 10 A units Max. operating pressure/design pressure boiler 150/1,5 kPa/bar Wood length 0,5 m 115 W RSK number 620 13 94 VEDEX 3300... -
Page 20: For The Chimney Sweep
Sweeping Sweeping Sweeping description Remove the cover from the mounting points in the The fan is a central part of VEDEX 3300 and should be ■ boiler. treated with care. The fan should be removed and cleaned about twice a year for optimum function and a long serv- Lift out the turbulators from the convection part. -
Page 21: Cover Plate
Remove the soot door. ■ Insert the cover plate over the hole as illustrated. ■ Reinstall the soot door to prevent soot exiting when sweeping. ■ Do not forget to remove the cover plate when sweeping is complete. ■ VEDEX 3300... - Page 22 VEDEX 3300...
- Page 24 NIBE CZ, V Zavetri 1478/6, CZ-170 00 Prague 7 Tel: +420 266 791 796 Fax: +420 266 791 796 E-mail: centrala@nibe-cz.com www.nibe-cz.com NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 Celle Tel: 05141/7546-0 Fax: 05141/7546-99 E-mail: info@nibe.de www.nibe.de Vølund Varmeteknik, Filial af NIBE AB, Brogårdsvej 7, 6920 Videbæk Tel: 97 17 20 33 Fax: 97 17 29 33 E-mail: info@volundvt.dk www.volundvt.dk...
