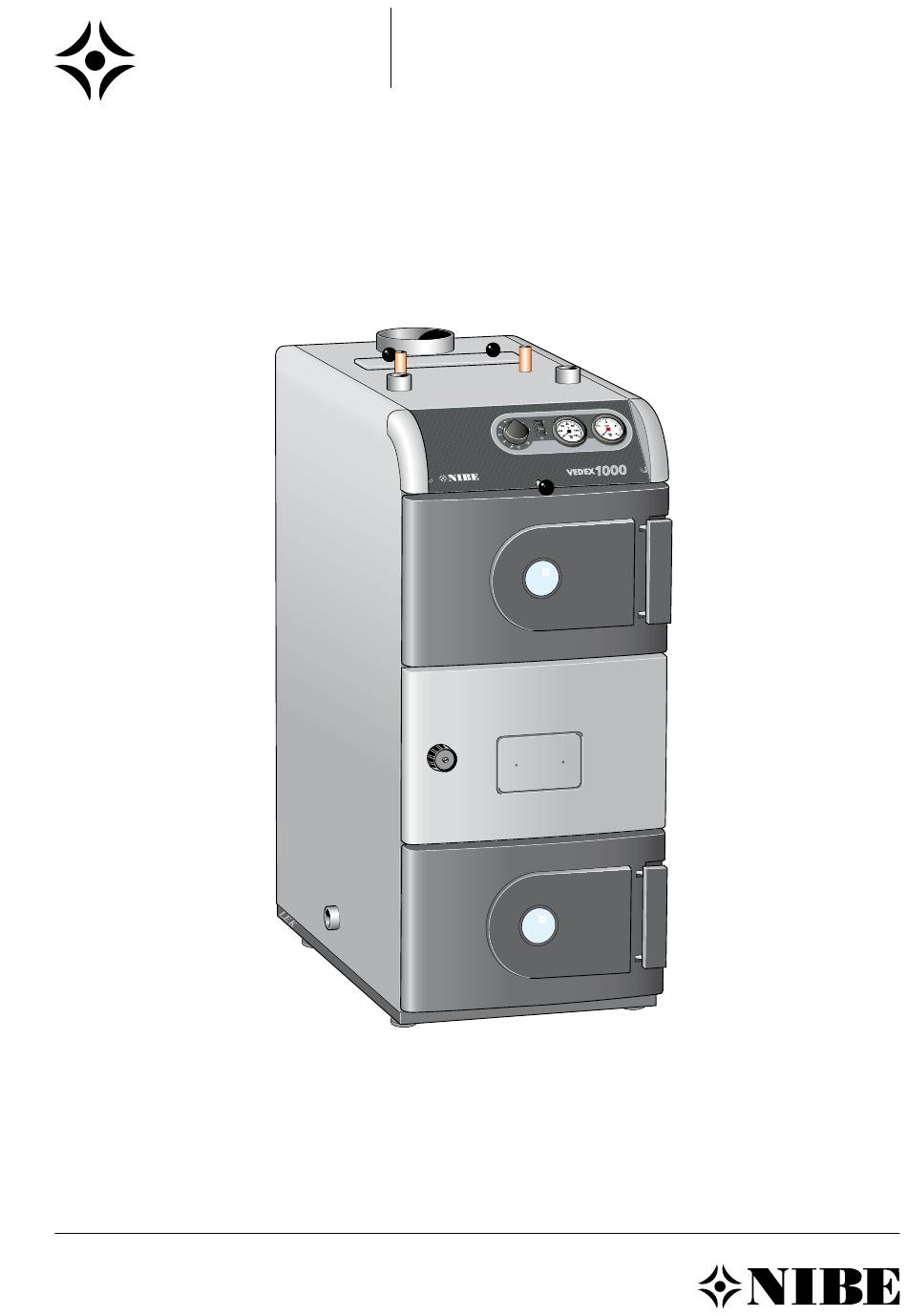

- Page 1 MOS GB 0733-1 INSTALLATION AND MAINTENANCE INSTRUCTIONS VEDEX 1000 VEDEX 1000 M10527...
-
Page 3: Table Of Contents
General information for the installer Boiler room ______________________________________ 9 Draught regulator _________________________________ 9 Installing ceramic grates ____________________________ 9 Chimney _________________________________________ 9 Assembly _______________________________________ 10 Turbulators _____________________________________ 10 Pipe installation Connection ______________________________________ 11 Filling __________________________________________ 11 Draining ________________________________________ 11 Cooling coil _____________________________________ 11 VEDEX 1000... -
Page 4: For Home Owners
For Home Owners General In order to get the ultimate benefit from your VEDEX 1000 wood-fired boiler, you should read through this Installation and Maintenance Instruction. VEDEX 1000 is intended for connection to home heating systems or similar. VEDEX 1000 is a quality product offering a long service-life and safe operation. -
Page 5: System Diagram
18 kW. SV2 Mixer valve SÄV Safety valve Area of use Temperature sensor VEDEX 1000 is intended for heating houses and other VVB Hot water heater smaller buildings. Heating Hot water heating Hot water is taken from the top of the boiler and routed to the accumulator tanks. -
Page 6: Front Panel
For a closed system, the operating pressure varies during operation depending on the installation’s varying tempera- ture. Direct damper (5) Controlling smoulder combustion. Pressed in position causes over combustion (start position). Pulled out position causes smoulder combustion (normal operating position). VEDEX 1000... -
Page 7: Wood Firing
Flue gas thermometer (accessory) should be installed in the flue pipe. The turbulators should not be installed during the first few lightings. This is to increase the flue gas temperature and produce a better chimney draught until the boiler is lit and going. VEDEX 1000... -
Page 8: Charge And Circulation Pump
350°C. To achieve a good start with a good bed of embers, the boiler temperature should increase approximately 20 °C from the start temperature. VEDEX 1000 Samma bild med färre pos. nummer... -
Page 9: Rules Of Thumb" When Lighting Wood
Do not throw the wood in (this can damage the ce- Also see ”For the chimney sweep”, under ”Sweeping” . ramics). Note! Ash can still contain glowing embers after a long time. Therefore, always use a non- inflammable container when emptying ash and soot. VEDEX 1000... -
Page 10: Causes And Corrective Actions
Mixer valve set too low (if applicable). ■ Closed or throttled shut-off valves for the water heater. ■ If the cause of the operating disturbance cannot be localised and remedied by means of the above, an installation engineer should be called. VEDEX 1000... -
Page 11: For The Installer
General information for the installer General information for the installer Boiler room Chimney VEDEX 1000 has a vertical flue pipe connection with an The boiler room must be built in accordance with applica- external diameter of 133 mm. ble building regulations. -
Page 12: Assembly
For the Installer General information for the installer Assembly VEDEX 1000 has inlets for primary and secondary air on the front of the boiler. Therefore, always leave a space of at least a metre from combustible material. In unfavour- able cases “puffs” from combustion can discharge sparks. -
Page 13: Pipe Installation
T-pipe on the return to the boiler. The drain valve is sup- plied. Cooling coil VEDEX 1000 is equipped with a cooling coil (22) for con- nection to a temperature limiting valve. Refer to the manu- facturer’s instructions when installing. -
Page 14: Docking
Docking Docking General Component key Shutoff valve When docking the accumulator tank to VEDEX 1000 it can AVT Drain valve be useful to use one of the material kits available on the Check valve market for accumulator docking. CP1 Charge pump... -
Page 15: Electrical Installation
Note! Electrical installation and service must be carried out under the supervision of a quali- fied electrician. Electrical installation and wiring must be carried out in accordance with the stipula- tions in force. Electrical circuit diagram VEDEX 1000... -
Page 16: Technical Specifications
95 Vertical flue pipe (accessory) 33 Front panel 96 Flue pipe connection Ø 133 ext 40 Boiler temperature gauge 97 Door handle 42 Boiler pressure gauge 100 Secondary air intake 45 Switch, charge pump 61 Damper 103 Serial number 64 Sight glass VEDEX 1000... -
Page 17: Main Dimensions
For the Installer Technical specifications Main dimensions R25 inv. Ø15 utv. R25 inv. R25 inv. R25 inv. Ø133 utv. VEDEX 1000... -
Page 18: Charger Pack
(95) instead of the supplied angled flue pipe. Damper suitable for angled flue pipe and vertical flue Contents of charger pack 2 (Part no. 089 873) pipe. Only for use with VEDEX 1000 Upper connector Ø int. 160 mm Ø ext. -
Page 19: Technical Specifications
Filler door height 250 mm Max. permitted total current for connected units 10 A Max. operating pressure/design pressure boiler 150/1.5 kPa/bar Wood length 0.4 m Draught requirement 20 Pa Max. pellet output 25 kW Part No. 089 836 VEDEX 1000... -
Page 20: For The Chimney Sweep
Pull out the flame trough. ■ ■ Empty the trough and clean the ash out. Take care to remove any burnt on ash remains in the trough. Clean the chamber. ■ Position the trough in place and close the door. ■ VEDEX 1000... - Page 21 VEDEX 1000...
- Page 22 VEDEX 1000...
