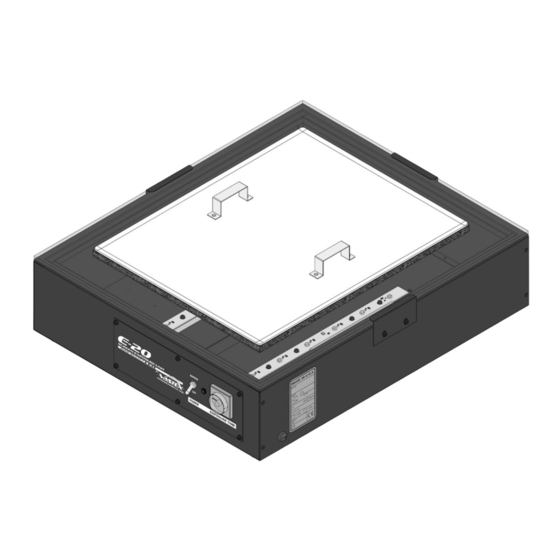

E20-2024 LED Exposing Unit
Contents
Introduction, Machine Specifications
Safety Information
Operating Instructions
Maintenance
Emulsion Tip
01-00-005/015 Warranty/Terms and Conditions
Electrical Drawing #:
Serial Number:
VTX
(Please log your machine's serial number and date of purchase for future reference.)
Assembly and Operation Instructions
Pg. #
2
3
4
5
6-7
8
Revision:
Date:
/
Vastex International, Inc.
7 Emery St
Bethlehem, Pa. 18015 USA
Phone# 610 625-2702 Fax# 610 625-2775
Web Site www.vastex.com
Authorized Representative in Europe:
Certification Experts BV
Nieuwstad 100 1381 CE Weesp,
The Netherlands
Tel : + 31 (0) 294 – 48 33 55
Fax : + 31 (0) 294 – 41 46 87
Vastex E-mail assistance
Purchasing & Product Info:
sales@vastex.com
Electrical Support:
stech@vastex.com
Tech Support, Mechanical Setup, and Operation:
techsupport@vastex.com
Screen Printing Issues & Support:
/
printech@vastex.com
Doc. # 01-04-044
Original Instructions
Advertisement
Table of Contents
Related Manuals for VASTEX E20-2024
Summary of Contents for VASTEX E20-2024
- Page 1 Doc. # 01-04-044 20____ Original Instructions Year of Manufacture: E20-2024 LED Exposing Unit Assembly and Operation Instructions Vastex International, Inc. Contents Pg. # 7 Emery St Bethlehem, Pa. 18015 USA Introduction, Machine Specifications Phone# 610 625-2702 Fax# 610 625-2775 Web Site www.vastex.com...
- Page 2 Machine Specifications & Part Numbers Note: For the E20-2024, glass sold separately, Vastex part number 04-08-092. It can also be purchased locally, ask for 1/4” x 21” x 25” clear float glass with polished edges, tempered is best but not required.
-
Page 3: General Information
Doc. # 01-04-044 Safety Intended Use: This equipment is intended for the purpose of exposing screens and films with UV light in conjunction with UV sensitive emulsions. Safety: The operator should read and understand this manual before operating this equipment. Store manual ... -
Page 4: Operation
Doc. # 01-04-044 Operation Overview: Your Exposing Unit is equipped with LED Lights, exposure timer, and a switch for main power and exposure cycle start. Run Light Time adjustment dial Control Panel Time indicator Timers are factory set to a 0-5 minute scale for RANGE SELECT exposure. -
Page 5: Maintenance
Doc. # 01-04-044 Maintenance Wear gloves when handling the Do Not allow objects to glass. Glass is tempered and contact the LED light lens. although strong, can shatter if the edges are subjected to an impact. Glass Removal / Installation There are three glass retainers. - Page 6 example would be that pure coat the squeegee side once over the Emulsion information photopolymer emulsions are available entire screen. Coat again the squeegee for the screen printer in very high solids content with low side on only two thirds of the screen, viscosity.
- Page 7 (emulsion up) on a hard flat surface. pressure stroke with a soft squeegee. (Fig. 7) (Fig. 9) The use of newsprint on your work surface will help with clean up. Fig. 4 Surface smoothness can affect your substrate to stencil gasket. The lower Rz numbers will be produced only by machine coating or film products.
- Page 8 The defective part or parts will be repaired or replaced at the discretion of Vastex International, Inc. If the equipment in question is less than one (1) year old, it will be shipped to the customer at no charge, with an RGA issued by Vastex for the defective part. The defective part must be shipped back to Vastex freight prepaid within 30 days or the account will be billed.
