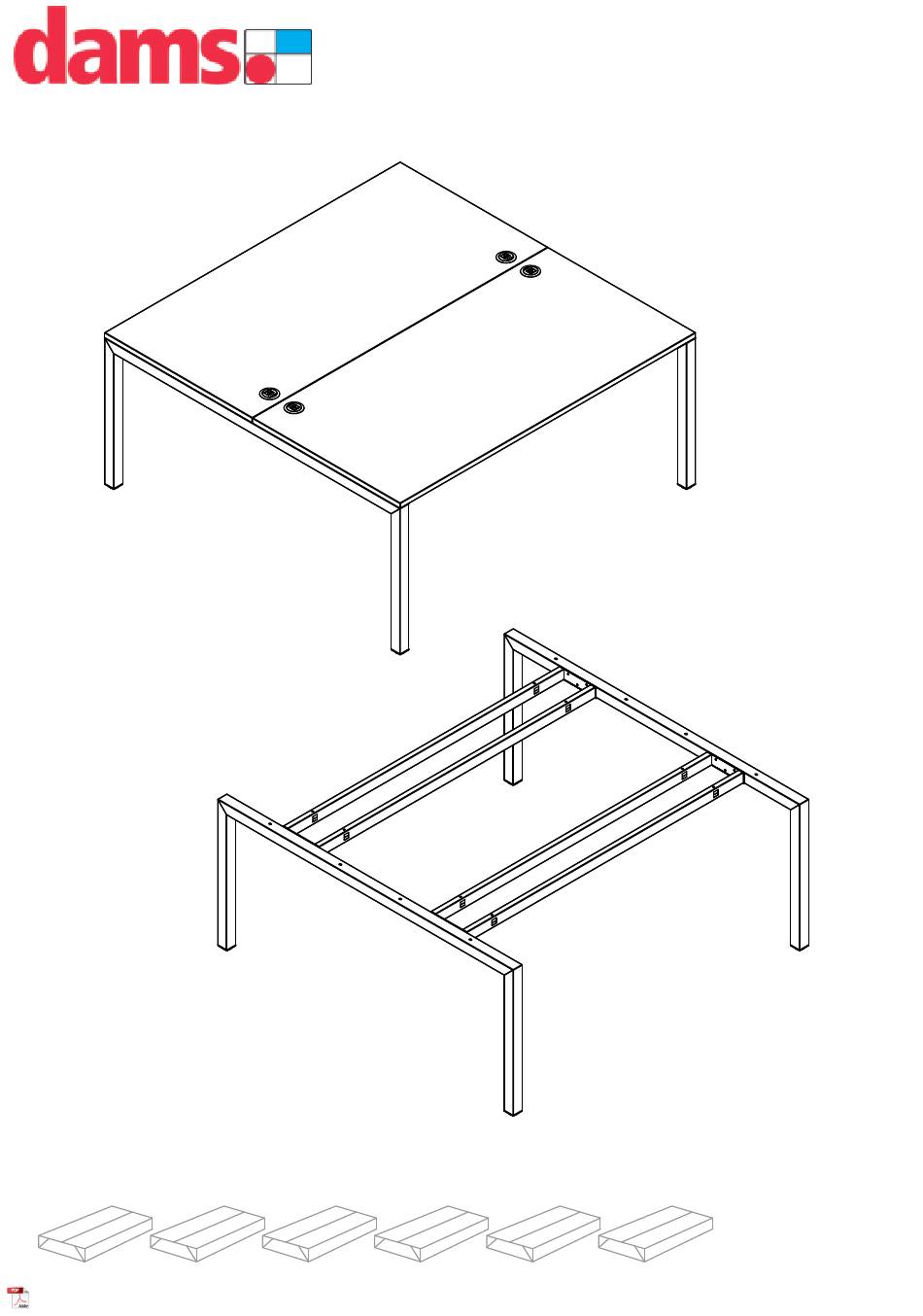

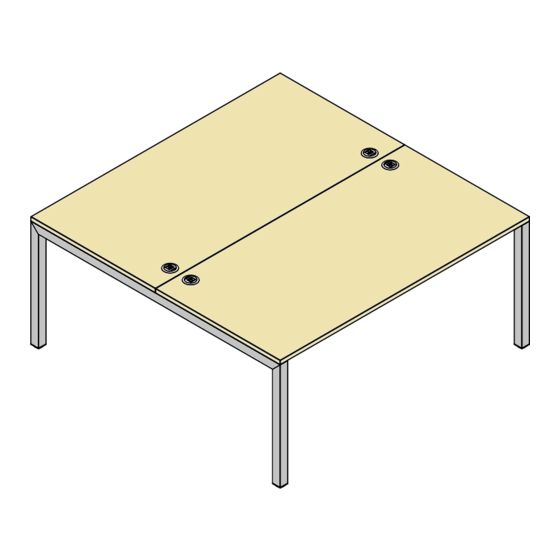

- Page 1 22.01.2017 COU1600OL Connex 1600mm Outer Leg Frame...
- Page 2 KEEP FITTINGS AWAY IF UNSURE CALL ALWAYS HANDLE DONT STRUGGLE TOOLS REQUIRED FROM CHILDREN FOR ASSISTANCE ITEMS WITH CARE 2 MAN LIFT FOR ASSEMBLY...
- Page 3 Please check that you have all the Components! 1600mm Outer Leg Frame Fixed Length Beam 1200 / 1400 / 1600mm Desk Top 1200 / 1400 / 1600mm Please check that you have all the Fittings! (Fittings supplied with leg frames) 1600mm Outer Leg Frame M6x60mm Connect Bolt M6 Nylon Insert...
- Page 4 Step 1 Attach the first beam to the end leg using the M6 bolts provided. Loosely thread the bolts into the face of the leg before threading the bolts to the underside of the leg. Once all bolts are threaded you can fully tighten them using the 4mm Allen Key.
- Page 5 If you are assembling this as part of a larger configuration please refer to the intermediate leg frame assembly instructions before proceeding with the next steps. Step 3 Attach the remaining outer leg frame using the same method as before. Attach the beams to the end leg using the M6 bolts provided.
- Page 6 If horizontal cable management is being added please refer to the drop down cable tray assembly instruction before proceeding with the next steps. This will make the installation process much easier then trying to install the cable trays once the desktops are attached. Step 4 Insert the nylon inserts into the pre drilled holes on the underside of the desktop.
- Page 7 Step 5 Position the first desktop on the frame aligning the nylon inserts with the slotted holes . Step 6 Attach the desktop using the 60mm connect bolts as shown. Loosely thread all the bolts to ensure that no bolts become cross threaded before fully tightening.
- Page 8 Step 7 Position the remaining desktop on the frame aligning the nylon inserts with the slotted holes . Step 8 Attach the desktop using the 60mm connect bolts as shown. Loosely thread all the bolts to ensure that no bolts become cross threaded before fully tightening.
