Estelle HE 3-4-5-6-7 ErP
ISTRUZIONI PER L'INSTALLAZIONE E LA MANUTENZIONE
Gentile Cliente,
metta in funzione la sua nuova caldaia entro 30gg dalla data di installazione da personale
professionalmente qualificato. Potrà così beneficiare sia della garanzia legale, sia della
garanzia convenzionale Sime che trova in questo manuale.
Fonderie SIME S.p.A
INSTRUCTIONS ORIGINALES-ORIGINALANLEITUNG-ORIGINALANWEISUNGEN-ORIGINALNA NAVODILA
ISTRUZIONI ORIGINALI-INSTRUCCIONES ORIGINALES-ΑΡΧΙΚΕΣ ΟΔΗΓΙΕΣ -ORIGINAL INSTRUCTIONS
FR
IT
NL
ES
DE
GR
ENG
SL
Cod. 6276059 - 03/2018
Advertisement
Table of Contents
Related Manuals for Sime Estelle HE 3 ErP
Summary of Contents for Sime Estelle HE 3 ErP
- Page 1 30gg dalla data di installazione da personale professionalmente qualificato. Potrà così beneficiare sia della garanzia legale, sia della garanzia convenzionale Sime che trova in questo manuale. Fonderie SIME S.p.A Cod. 6276059 - 03/2018 ISTRUZIONI ORIGINALI-INSTRUCCIONES ORIGINALES-ΑΡΧΙΚΕΣ...
-
Page 2: Table Of Contents
CONTENTS BOILER DESCRIPTION 1.1 INTRODUCTION ............................... 34 1.2 DIMENSIONAL DETAILS 1.3 TECHNICAL FEATURES ............................ 35 1.4 LOSS OF HEAD 1.5 FUNCTIONAL DIAGRAM ............................ 36 1.6 COMBUSTION CHAMBER 1.7 COMPATIBLE BURNERS 1.8 CONNECTION OF CONDENSATION WATER TRAP .................... 37 INSTALLATION 2.1 BOILER ROOM ................................. 38 2.2 BOILER ROOM DIMENSIONS 2.3 CONNECTING UP SYSTEM 2.4 CONNECTING UP FLUE 2.5 ELECTRICAL CONNECTION USE AND MAINTENANCE... -
Page 3: Boiler Description

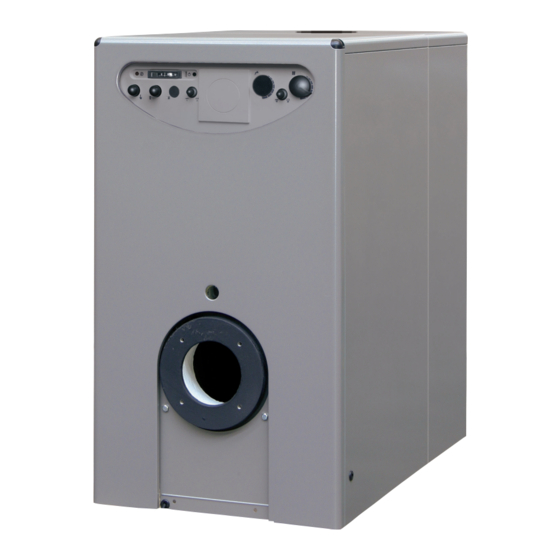

BOILER DESCRIPTION 1.1 INTRODUCTION iron boilers condensing they use light oil for economical performance. and have a perfectly balanced combus- The new ESTELLE HE ErP series of cast tion with a very high thermal efficiency 1.2 DI M EN S IO N AL DETAILS (fig. 1) Estelle HE 3 ErP 4 ErP 5 ErP 6 ErP 7 ErP Depth (mm) 795 895 995 1095 1195 330 330 325 325... -
Page 4: Technical Features
1.3 TECHNICAL FEATURES ESTELLE HE 3 ErP 4 ErP 5 ErP 6 ErP 7 ErP Output 80-60°C 25.5 33.0 40.0 48.0 59.7 50-30°C 26.7 35.5 42.2 50.5 62.8 Input 26.2 34.8 41.0 49.0 61.0 Seasonal energy efficiency class of the heating system Seasonal energy efficiency of the heating system 97.0 94.0 93.0 93.0 93.0 PIN number 1312CR193R 1312CR193R 1312CR193R 1312CR193R 1312CR193R Type B23P B23P... -
Page 5: Functional Diagram
Fig. 3 tested with. 1.7.1 Permanent feeding burners Model Code Nozzle Atomising Pump Class Adsorbed power Type ø angle pressure NOx consumption bar Estelle HE 3 ErP SIME MACK 3 8099000 DELAVAN 0,55 60°S 12,5 Estelle HE 4 ErP SIME MACK 4 8099010 DELAVAN 0,75 60°W 11,0 Estelle HE 5 ErP SIME MACK 5 8099030 DELAVAN 0,85 60°W 13,0... -
Page 6: Connection Of Condensation Water Trap
1.7.3 Burners assembly (fig. 3/a) The boiler door details is shown in figure 3/a for burner mounting. The burners must be regulated such that the CO value is that indicated in point 1.3, with a tolerance of ± 5%. 1.8 CONNECTION OF CONDENSATION WATER TRAP (fig. 4) The drip board and its water trap must be connected to a civil drain through a pipe (ø 25) with a slope of at least 5 mm per metre to ensure drainage of conden- sation water. The plastic pipes normally used for civil drains are the only type of pipe which is appropriate for conveying condensation Fig. 3/a to the building’s sewer pipes. -
Page 7: Installation
INSTALLATION ATTENTION: Before performing any work on the boiler, make sure that the same and its components have cooled in order to prevent the risk of burns due to high temperatures. 2.1 BOILER ROOM in the heating system in the following section of the flue must be fitted with cases: a static exhaust device that ensures The boiler room should feature all the constant and efficient extraction of characteristics required by standards – For extensive systems (with high con- products generated by combustion; governing liquid fuel heating systems. tents of water). - Page 8 NOTE: The brown (capped off) cable has to be exclusively used in case of permanent feeding burners (type B1). Line Neutral Main switch TS Safety stat TC Boiler stat SA Green voltage LED C.H. pump Direct Feeding Burner (not supplied) B1 Permanent Feeding Burner (optional) B2 Two stage permanent Feeding Burner (optional) TA Room stat OP Programmer’s clock (optional) NO T E: - When a room stat (TA) is to be fitted remove the link between terminal 4 and 5 on the connector plug. - To connect the programmer’s clock (OP), remove the link between terminals 5 and 8. Fig. 6...
-
Page 9: Use And Maintenance
USE AND MAINTENANCE WARNINGS – In case of failure or malfunction of the equipment, contact authorised technical staff. – For safety reasons, the User cannot access the internal parts of the appliance. All operations involving the removal of protections or otherwise the access to dan- gerous parts of the appliance must be performed by qualified personnel. – The appliance can be used by children under 8 years and by persons with redu- ced physical, sensory or mental capabilities, or lack of experience or knowledge, provided they are under supervision or after they have been given instructions concerning the safe handling of the appliance and the understanding of the dan- gers inherent to it. Never let children play with the appliance. Children without supervision must not carry out cleaning and maintenance meant to be carried out by the user. 3.1 COMMISSIONING THE BOILER 3.2.2 Safety stat (fig. 7) cover and press the button underneath. When commissioning the boiler always The manually reset safety stat (2) trips to If the problem occurs frequently, call an make sure that: switch-off the burners immediately when authorised technical assistance centre – the system has been filled with water the boiler temperature exceeds 100°C. for the necessary checks to be carried and adequately vented;... -
Page 10: Regular Cleaning
3.2.3 System filling ESTELLE HE RONDO' 3/4 OF 3-4 ErP Periodically check the pressure values ESTELLE 3/4 OF of the hydrometer mounted onto the system, when the system is cold, should range between 1 and 1.2 bar (98 and 117.6 kPa). If the pressure is less than 1 bar (98 kPa), reset the system. ESTELLE HE 3.2.4 Turnig OFF boiler (fig. 7) RONDO' 5/6 OF 5-6 ErP ESTELLE 5/6 OF To temporarily turn off the boiler turn off the electricity supply by pressing the main switch (1). The following operations must be carried out if the plant will not... -
Page 11: Power Cable
proceed as follows (fig. 10): position of the regulation stat. – remove the cover (12) fixed with pin – Make sure that the boiler is sufficiently clutches; powerful for the appliance. – remove the panel (8) which are fixed to the sides by pin clutches; Smell of unburnt products – remove the control panel (9) whose – Control the cleanness of the boiler sides are fixed by four self-tapping shell and the flue, the airtightness of screws;... - Page 13 Fonderie Sime S.p.A - Via Garbo, 27 - 37045 Legnago (Vr) Tel. +39 0442 631111 - Fax +39 0442 631292 - www.sime.it...
