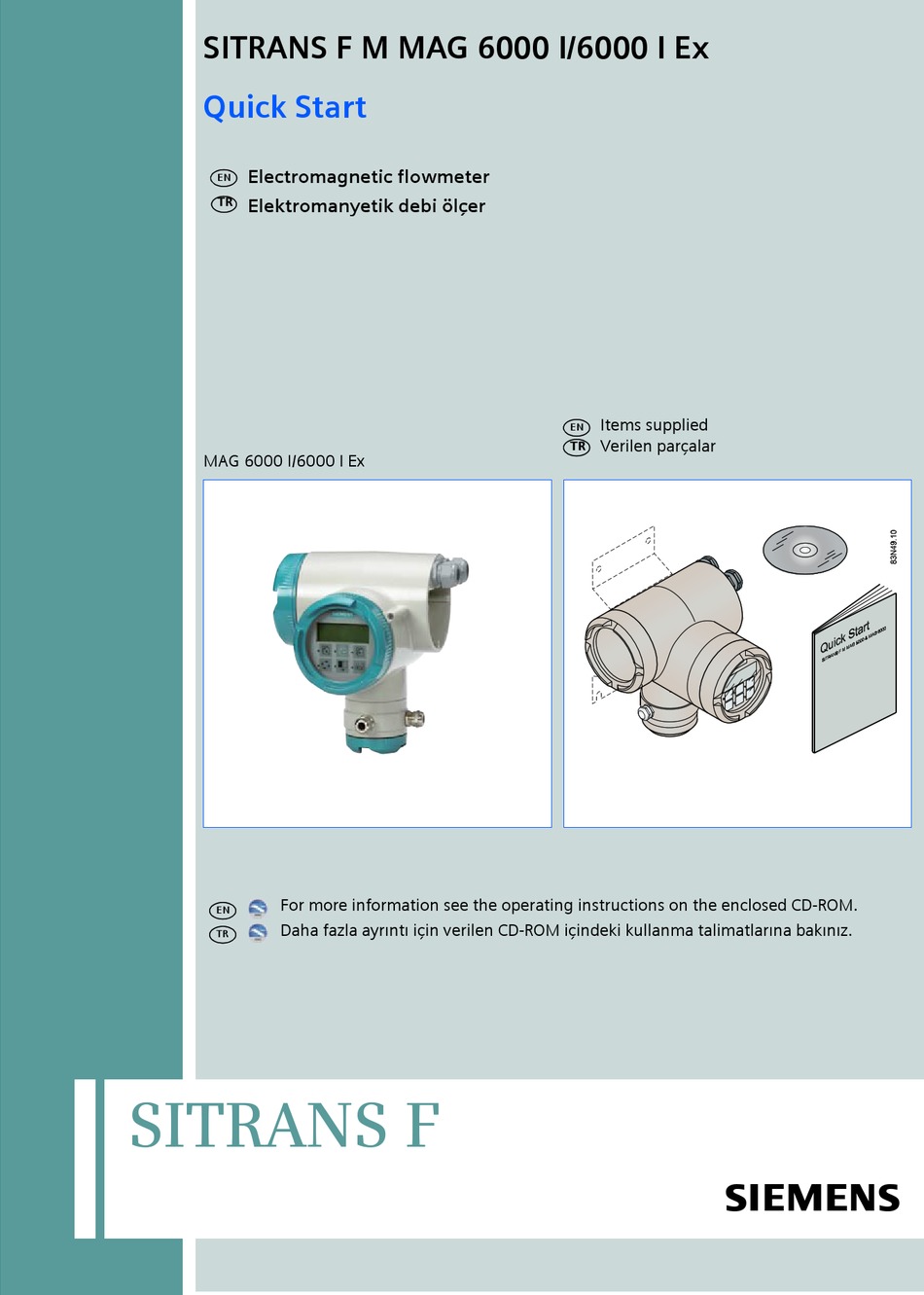

SITRANS F M MAG 6000 I/6000 I Ex Quick Start Electromagnetic flowmeter Elektromanyetik debi ölçer Items supplied Verilen parçalar MAG 6000 I/6000 I Ex For more information see the operating instructions on the enclosed CD-ROM. Daha fazla ayrıntı için verilen CD-ROM içindeki kullanma talimatlarına bakınız.
It contains detailed safety regulations, information and specifications which must be observed when installing. Changes can occur. Documentations and approvals can be found on the Internet at www.siemens.com/flowdocumentation. Caution! Correct, reliable operation of the product requires proper transport, storage, positioning and assembly as well as careful operation and maintenance.
Page 3
Transmitter data MAG 6000 I Ex MAG 6000 I Ex Aktarıcı verileri DN 2 - 2000 mm Certificate / Sertifika: Sira 05ATEX2072X, II 2(1)(2) G D Remote version / Uzak versiyon: Ex de [ia] ia IIC T6, Gb, Ex tD A21 IP67 T85°C Ta -25°C to +60°C...
Quick Start MAG 6000 I/6000 I Ex Compact installation Kompakt montaj For compact installation with MAG 6000 I/6000 I Ex, the transmitter has to be supported to avoid tension on sensor part! MAG 6000 I/6000 I Ex ile kompakt bir montaj için, algılayıcı kısmı üzerinde gerilimi önlemek amacıyla aktarıcı...
Quick Start MAG 6000 I/6000 I Ex Electrical connection Elektrik bağlantısı Power supply Besleme 1a Ex: 18 ... 30 V DC / Ex: 115 ... 230 V AC / Non-Ex:18 ... 90 V DC / Non-Ex 115 ... 230 V AC Current output Aktif çıkış...
Page 7
Potential Hazards! - Grounding! The mains protective earth wire must be connected to the PE terminal in accordance with the diagram (class 1 power supply). • If the earth wire is not connected, personnel can be exposed to 115V/230V.
Page 8
Quick Start MAG 6000 I/6000 I Ex Commissioning For detailed information about settings see the operating instructions on the enclosed CD-ROM. Order no.: A5E36021906...
