INSTALLATION, MAINTENANCE AND USE
INSTRUCTIONS FOR
(French version page 11)
DIMENSIONS:
(W) x
(D)
(890 mm)
(520 mm)

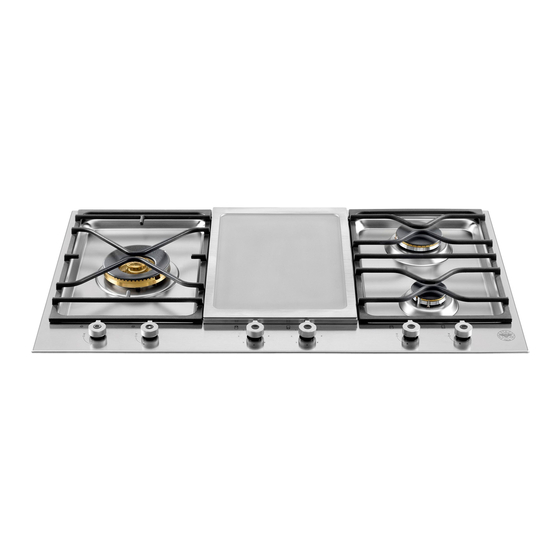

Model PM3630GX
Cod. 310683
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
OBSERVE ALL GOVERNING CODES AND ORDINANCES.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM3630GX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bertazzoni PM3630GX

  • Page 1 INSTALLATION, MAINTENANCE AND USE INSTRUCTIONS FOR (French version page 11) DIMENSIONS: (W) x (890 mm) (520 mm) Model PM3630GX Cod. 310683 IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR’S USE. READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. OBSERVE ALL GOVERNING CODES AND ORDINANCES.
  • Page 2 WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. Do not store or use gasoline or other flammable vapors and liquid in the vicinity of this or any other appliance.
  • Page 3: Table Of Contents

    INDEX: Installation Instructions……………………………………..……………………….. pag.3 Inserting the hotplate……………………………………………..………………….. pag.3 Requirements……………………………………..……………………………….….. pag.4 Attaching the hotplate……………………………………..…………………………. pag.4 Gas connection……………………………………..………………………………… pag.5 Electrical connection……………………………………..……………………….….. pag.5 Wiring diagrams……………………………………..…………………………….….. pag.5 Room ventilation…………………………………….………………………………… pag.5 Location and venting…………………………………….……………………………. pag.6 Replacement of nozzles……………………………………..……………………….. pag.6 Regulation of burners……………………………………………...…………………. pag.6 Descriptions…………………………………………………………………………… pag.6 User instructions……………………………………………..………………………..
  • Page 4: Requirements

    Requirements 1. Overhead clearances (Minimum values) The minimum overhead clearances shall be in accordance with the minimum values indicated in the table n.1 and are shown and in the fig. 1- 2 Range hoods and exhaust fans shall be installed in accordance with the manufacturer’s instructions. However, in no case shall the clearance between the top of the highest burner of the cooking appliance and the range hood be less than 650mm.
  • Page 5: Electrical Connection

    This appliance is not equipped with devices to remove the products of combustion. The appliance must therefore be connected following the norms for installation mentioned above. Special attention must be paid to the information below regarding aeration and ventilation of the premises. VENTILATION OF THE PREMISES To guarantee that the appliance works correctly it is necessary that the place where the appliance is installed is continuously ventilated.
  • Page 6: Regulation Of Burners

    To change the nozzles of the burners use the following procedure: Lift up the burners and unscrew the nozzles ( Fig. 9) using an adjustable spanner of 7 mm and change the nozzles with those designed for the new gas supply according to the information given in TABLE A shown below.
  • Page 7: User Instructions

    User instructions IMPORTANT SAFETY INSTRUCTIONS 1 - Proper Installation - Be sure your appliance is properly grounded and installed by a qualified technician. 2 - Never Use your Appliance for Warming or Heating the Room. 3 - Do Not Leave Children Alone - Children should not be left alone or unattended in an area where appliance is in use.
  • Page 8: Using Burners

    Do not store dangerous or flammable material in the cabinet areas above appliance; store them in a safe place in order to avoid potential hazards. For safe use of appliance, do not use it for space heating. Do not use aerosol sprays in the vicinity of this appliance while it is in operation For description of hotplates refer to installation instructions.
  • Page 9: Using The Electric Griddle

    appliance may require additional ventilation, for example by opening a window, or increasing the power of the mechanical exhaust fan/range hood, if installed. USING THE ELECTRIC GRIDDLE WARNING The griddle element is hot after use. Allow sufficient time for griddle components cool before cleaning. The electric griddle elements are rated 230 volts AC 2x400 watts.
  • Page 10: Cleaning The Appliance

    Cleaning the appliance: Never use abrasive cleaners Before cleaning the appliance it should be disconnected from the power supply. Cleaning the work surface: periodically clean the burner heads, the enamelled steel pan supports and the burner caps using warm water. Any spillage must always be removed as soon as possible using a rag.
  • Page 11: Instructions D'installation

    Cet appareil est marqué selon la directive européenne 2002/96/CE relative aux appareils électriques et électroniques usagés (waste electrical and electronic equipment - WEEE). La directive définit le cadre pour une reprise et une récupération des appareils usagés applicables dans les pays de la CE. INDEX: Instructions d’installation..…………………………………..………………………...
  • Page 12: Fixation De La Table De Cuisson

    Table n.1 Type A Type A Modèles de tables Modèles de tables de Type B Type B de cuisson cuisson Distances Min. pouches (mm) Distances Min. pouches (mm) B1 (*) B2 (*) B3 (*) B4 (*) (*) Notes: -B1 est la distance min. entre le bord frontal de l’appareil et le bord frontal de l’armoire. -B2 et B4 sont les distances minimum entre le bord latéral droit/gauche de l’appareil et le mur latéral (si présent).
  • Page 13: Branchement Du Gaz

    UBICACIÓN Y AIREACIÓN Los aparatos de cocción a gas tienen que evacuar siempre los productos de la combustión por medio de campanas conectadas con chimeneas, conductos de salida de humos o directamente con el exterior (véase la Fig. 4A). En caso de que no se pueda aplicar la campana, está permitido el empleo de un ventilador instalado en una ventana o que dé...
  • Page 14: Positionnement Et Dégazage

    TABLEAU N°2: Adaptation aux différents types de gaz. APPAREIL DE CATEGORIE : II2E+3+ Brûleur Type de Gaz Pression Diamètre Débit Nominal Débit Réduit Diamètre Buse by-pass 1/100mm mbar 1/100mm. kcal/h kcal/h Gaz de Ville G110 1,75 1505 0,44 31 reg Naturel G20 1,75 1505...
  • Page 15: Instructions Pour L'utilisateur

    Il est recommandé de remplacer les joints de la valve chaque fois que la valve est remplacée, assurant, de cette façon, l’étanchéité parfaite entre le corps et le train de gaz. ATTENTION: Débranchez l’alimentation avant l’entretien de l’unité. Pour le positionnement de la prise au mur pour le branchement de la bonde de mise à terre à trois pôles de l’appareil, voir les indications illustrées en Fig.
  • Page 16: Utilisation Des Brûleurs

    15. NE PAS CUISINER SUR UNE PLAQUE DE CUISSON CASSÉE – Si la plaque de cuisson se brise, des produits d’entretien et des salissures risquent de pénétrer à l’intérieur de la plaque de cuisson et de provoquer un choc électrique. Contacter immédiatement un technicien d’entretien agréé. 16.
  • Page 17: Utilisation Du Plaque Chauffante Electrique

    Tableau B Brûleur Diamètres recommandés pour les casseroles (mm) Moyen 140 – 260 Large 180 – 260 Dual (poêle chinoise) 220 – 260 Utilisation correcte des casseroles: - Essuyez le fond de la casserole avant de la positionner sur la plaque de cuisson. - Utilisez les pots avec un fond plat et épais, à...
  • Page 18: Nettoyage De L'appareil

    Pour traiter la plaque : 1. Nettoyer méticuleusement la plaque avec de l’eau chaude savonneuse pour ôter le revêtement de protection. 2. Rincer à l’eau et au vinaigre blanc (une tasse de vinaigre dans un quart d’eau). Bien sécher. 3. Verser 1 cuillère à café d’huile végétale au centre du plaque. Ne pas utiliser d’huile de maïs qui tend à devenir poisseuse.
  • Page 19: Figures

    Fig 1 Fig 2 Fig.3 Fig. 3A Fig. 3B...
  • Page 20 Fig.4 Fig.5A Fig.5B Fig.6 Fig.7 Fig.8 Fig.9 Fig.10 Fig.11...
  • Page 21 Fig.12 Fig.13 Fig.14 Fig.15 Fig.16 Fig.17 Fig.18...
  • Page 22 Fig.19...
