Electro Industries Mini-Boiler EMB-H-1 Installation & Operating Instructions Manual

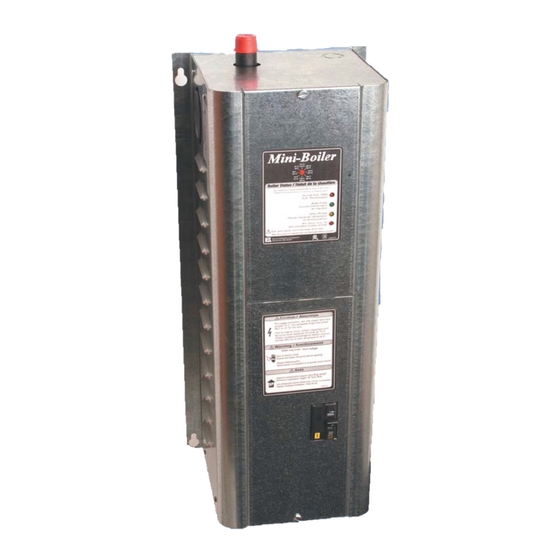

Mini-Boiler
Installation & Operating
EMB-H-1
EMB-H-2
EMB-H-4
EMB-H-5
EMB-H-7
EMB-H-9
Application – This Electro-Boiler is factory equipped with WarmFlo smart controller. WarmFlo
automatically regulates outlet water temperature based upon preset, front panel, temperature selection. This
model does not have an outdoor sensor and is not programmed for outlet temperature ramping (outdoor reset
concept). If your application is "outdoor reset", you should consider using model EB-MX series.
Primary application is any hydronic water heating system (high or low temperature systems) where reduced
flow or radiation can cause overheat conditions (example, zones). However, if it is a mixture of large and small
zones, the sudden capacity and flow changes may cause some internal timing/over temp conditions.
This series is equipped for load management interrupt and can apply to standard baseboard radiation, dual heat
combinations, under floor radiant, wood boiler supplement, etc.
Accessories – Attached BL001 lists various accessory or option items which are not part of basic Electro-Boiler.
Note: This product meets the requirements of the ASME Boiler and Pressure Vessel Code.
Conforms to: UL STD.UL834
Certified to: CSA STD.C22.2#165
DO NOT DESTROY THIS MANUAL. PLEASE READ CAREFULLY AND KEEP IN A SAFE
PLACE FOR FUTURE REFERENCE BY A SERVICE TECHNICIAN.
03/13/2019
Electric
HI TEMP MODEL
Instructions
120-volt, 1-stage
120-volt, 1-stage
120-volt, 2-stage
240/208-volt, 1-stage
240/208-volt, 2-stage
240/208-volt, 2-stage
– 1.1 kW
– 2.5 kW
– 5 kW
30A CB 4.5/3.5 kW
45A CB 7/5.3 kW
60A CB 9/7 kW
™
3,753 Btu/h
8,530 Btu/h
17,060 Btu/h
15,354/11,942 Btu/h
23,885/17,913 Btu/h
30,709/23,885 Btu/h
BI310
