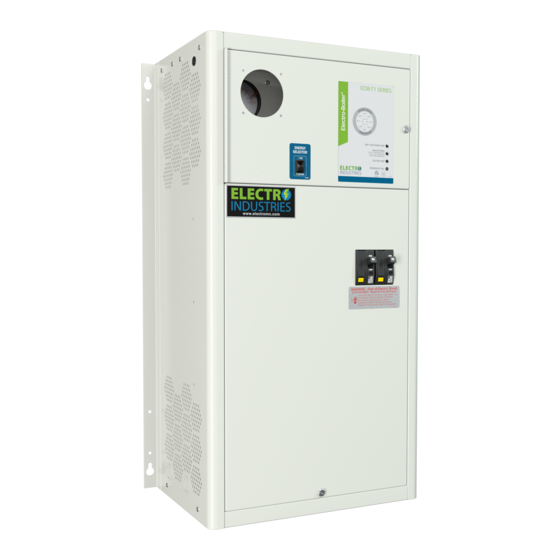

ELECTRO-BOILER
INSTALLATION & OPERATING INSTRUCTIONS
APPLICATION:
ACCESSORIES:
Note:
This product meets the requirements of the ASME Boiler and Pressure Vessel Code.
Conforms to: UL STD.UL834
Certified to: CSA STD.C22.2#165
DO NOT DESTROY THIS MANUAL. PLEASE READ CAREFULLY AND KEEP IN A SAFE
PLACE FOR FUTURE REFERENCE BY A SERVICE TECHNICIAN.
1/30/2025
Model: EDB-T1 Series
This Electro-Boiler is factory equipped with WarmFlo smart controller.
WarmFlo automatically regulates outlet water temperature based on a desired
output temperature set point.
Primary application is radiant floor heat, baseboard heat, staple up, fan coil and
other hydronic heat applications such as domestic hot water using an indirect heat
exchange water heater tank. This series can also be used in conjunction with a
gas boiler for dual fuel heating.
Note: If this installation does not include dual heat standby boiler, the front panel
switch must always be in the "normal" position.
Various accessory or option items which are not part of basic Electro-Boiler
available, contact factory.
®
®
are
BI103
Advertisement
Table of Contents
Related Manuals for Electro Industries ELECTRO-BOILER EDB-T1-18-240-3
Summary of Contents for Electro Industries ELECTRO-BOILER EDB-T1-18-240-3
- Page 1 ® ELECTRO-BOILER INSTALLATION & OPERATING INSTRUCTIONS Model: EDB-T1 Series APPLICATION: This Electro-Boiler is factory equipped with WarmFlo smart controller. WarmFlo automatically regulates outlet water temperature based on a desired output temperature set point. Primary application is radiant floor heat, baseboard heat, staple up, fan coil and other hydronic heat applications such as domestic hot water using an indirect heat exchange water heater tank.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Description Page Introduction System or Water Flow Specifications Multiple Zones & Radiant Temperatures Zone Controller Room Thermostat Placement Two-Temperature Operation or Feature Multiple Boilers Boiler Placement Installation Requirements Mechanical Installation Under-Floor Radiant Dual Heat Electrical Hookup Water Fill Procedure Controller Setup Staging/Modulating Jumper Operational Tips... -
Page 3: Introduction
INTRODUCTION With this WarmFlo configuration, the electric heating elements are automatically staged/modulated and controlled to establish a fixed outlet water temperature. This outlet temperature is sensed by the WarmFlo controller and is controlled to achieve and maintain the boiler’s set point temperature. Even though this WarmFlo configured unit adjusts outlet temperature independent of water flow and prevents high limiting even with marginal water flow, it is still very important that the hydronic system be correctly designed for the building, the total heat loss requirement, and proper hydronics design and... -
Page 4: System Or Water Flow
A better solution would be to use an Electro Industries zone control panel compatible with this series boiler Electro Industries’ Zone Controllers – the Electro Industries’ zone controller has many unique features that enhance the performance and operating efficiency of the EDB-T1 boiler. -
Page 5: Zone Controller
ZONE CONTROLLER features for use with EDB-T1 Boiler 1. Zone wiring and troubleshooting convenience – the addition of the zone board allows for easy terminal block and point to point wiring for each zone thermostat and each zone valve. Also there are LED’s associated with the thermostat action and the zone valve action. -
Page 6: Boiler Placement
What is Outdoor Reset? Outdoor reset is where the Electro Boiler DT (desired water temperature) shifts up and down based on the outdoor temperature. The water temperature coming out of the boiler will be higher when it’s cold outside and lower when it’s warmer outside. The idea is to have the boiler work with the building heat loss to maintain a more even BTU delivery to the space. -
Page 7: Installation Requirements
ETL/Intertek certification, and manufacturer product liability. Electro Industries cannot be held responsible for field modifications, incorrect installations, and conditions which may bypass or compromise the built-in safety features and controls. -
Page 8: Mechanical Installation
MECHANICAL INSTALLATION – UNDER-FLOOR RADIATION CAUTION Electro Industries requires the use of dielectric isolation between the boiler vessel supply and return piping when the boiler is plumbed using copper or any other dissimilar metal. Damage to the vessel caused by galvanic corrosion voids Electro Industries’ warranty. - Page 9 MECHANICAL INSTALLATION – DUAL HEAT CAUTION Electro Industries requires the use of dielectric isolation between the boiler vessel supply and return piping when the boiler is plumbed using copper or any other dissimilar metal. Damage to the vessel caused by galvanic corrosion voids Electro Industries’ warranty.
-
Page 10: Electrical Hookup
ELECTRICAL HOOKUP Reference drawing BH102 1. 480/240/208-Volt Heating Power – route and install the proper current carrying conductors from service panel fuse or circuit breaker. See Specification Table and/or product nameplate for ratings. These models contain built-in circuit breakers and meet the requirement for local disconnect for appliances greater than 10 kW. -
Page 11: Water Fill Procedure
7. If this is a dual heat application with standby boiler, the 2 brown wires connect to the standby boiler R and W or T and T. These 2 brown wires represent a contact closure to activate the standby boiler during load control or when the front panel switch is in the STANDBY position. -
Page 12: Controller Setup
CONTROLLER SETUP Front Dial Non-Outdoor Reset – simply set the knob to the desired outlet temperature on the front panel decal. This control strategy is accomplished via disconnecting the outdoor sensor and performing a power reset to the boiler (low voltage power cycle). Outdoor Reset –... -
Page 13: Staging/Modulating Jumper
Staging/Modulating Jumper The control board on the EDB-T1 boiler is a universal controller with the capability of interfacing with many different models of TS Electro-Boilers. If you are working with an EDB-T1 this should be set to MODULATE. Circulator pump mode – as factory set, the circulator pump is controlled directly from the W input terminal. -
Page 14: Warning - High Voltage
Manual Reset Hi-Limit At the top of the vessel there will be either two or three surface mount hi-limits preset at 205° F. There is no light indicator associated with these safety hi-limits. These 205° F safety limits break the L2 current carrying 240/208-volt wire going to the elements, use caution when troubleshooting or resetting. -
Page 15: Replacement Parts List
Replacement Parts WFSB Water sensor (ST), 5 ft. WFS25F Outdoor sensor (OT), 25 ft. EB5623 Control board UFUSE0443 2-amp, fast blow fuse 4038-75 75-amp triac SSR 5128C Heating relay 5535 Safety hi-limit, manual, 205° F 5512-190 First hi-limit, 190° F 5453 Relief valve, 30 PSIG 5456A... -
Page 16: Troubleshooting/Repair Helps
TROUBLESHOOTING/REPAIR HELPS 1. This WarmFlo controller contains several interference suppression components, but as an electronic control, unpredictable and unusual transients or interference may sometimes cause strange results. If the WarmFlo controller is acting strange, one immediate step would be power down reset. Simply turn off boiler power or breaker number 1, when the green LED goes out, count to 1Ø, and re- energize power supply. -
Page 17: Operational Information
OPERATIONAL INFORMATION In order for the installer to completely understand the EDB-T1 functions and operational sequence it is recommended to thoroughly read and understand the information below. This knowledge can help in determining settings that can be set according to the end customer’s needs. WarmFlo Analyzer (WF-ANZ*) or PC software (ET-SOFT-HTG) –... -
Page 18: Bx101
Tempereture Flow Rate Heat Load Pipe Size Power (kW) Delta (°F) (GPM) (BTU) 3/4" Copper 40,000 1" Copper 80,000 1-1/4" Copper 140,000 1-1/4" Steel 170,000 1-1/2" Copper 220,000 Electro Industries 1-1/2" Steel 250,000 BX101 Monticello, MN 55362 (763)295-4138 REV.A 08/16/24... - Page 21 DECAL + TITLEBLOCK...
-
Page 25: Xx017
Limited Product Warranty Effective November 1, 2009 Electro Industries warrants to the original owner, at the original installation site, for a period of two (2) years from date of original purchase, that the product and product parts manufactured by Electro... -
Page 26: Conditions And Limitations
Remedies under this warranty are limited to repairing or replacing alleged defective product or product parts. The decision whether to repair or, in the alternative, replace products or product parts shall be made by Electro Industries or its authorized representative.
