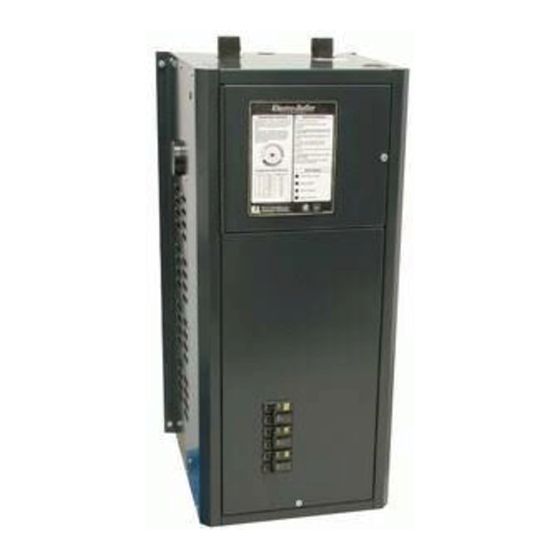

ELECTRO-BOILER
INSTALLATION & OPERATING INSTRUCTIONS
Model
APPLICATION:
ACCESSORIES:
Note:
This product meets the requirements of the ASME Boiler and Pressure
Vessel Code.
Drawings:
BX501
BX502
BX201
BH502
BS502
BL001
XX017
03/19/2009
TS Series
EB-WO-13
EB-WO-18
This Electro-Boiler is factory equipped with WarmFlo smart controller. WarmFlo
automatically regulates outlet water temperature based upon outside temperature and pre-
setup parameters (commonly called "outdoor reset").
Primary application is any hydronic water heating system where reduced flow or
radiation can cause overheat conditions (example, zones). However, if it is a mixture of
large and small zones, the sudden capacity and flow changes may cause some internal
timing/overtemp conditions. With the mixture of zones the zone controller ZTS-* option
is highly recommended (see page 2).
This series is equipped for load management interrupt and can apply to standard
baseboard radiation, dual heat combinations, under floor radiant, wood boiler
supplement, etc.
Note: If this installation does not include dual heat standby boiler, the front panel
switch must always be in the "normal" position.
Attached BL001 lists various accessory or option items which are not part of basic
Electro-Boiler. Also page 3 has additional information on slab stat. Page 2 gives
information on a zone control update which stages elements based upon zone capacity.
EB-WO-23
EB-WO-27
BI502
Advertisement
Table of Contents
Related Manuals for Electro Industries Electro-Boiler EB-WO-13
Summary of Contents for Electro Industries Electro-Boiler EB-WO-13
- Page 1 ELECTRO-BOILER TS Series INSTALLATION & OPERATING INSTRUCTIONS Model EB-WO-13 EB-WO-23 EB-WO-18 EB-WO-27 APPLICATION: This Electro-Boiler is factory equipped with WarmFlo smart controller. WarmFlo automatically regulates outlet water temperature based upon outside temperature and pre- setup parameters (commonly called “outdoor reset”).
-
Page 2: Table Of Contents
TABLE OF CONTENTS Description Page Introduction System or Water Flow Multiple Zones & Radiant Temperatures Zone Controller Room Thermostat Placement Multiple Boilers Two-Temperature Operation or Feature Boiler/Plumbing Kit Placement Installation Requirements Mechanical Installation Under-Floor Radiant Dual Heat Electrical Hookup Standby Boiler Remote Display Water Fill Procedure Controller Setup... -
Page 3: Introduction
22VAC or greater when the system is in the complete operational mode. True 3-phase, 208-volt, models are available in the WarmFlo series. Contact factory, models EB-WO-13-2 and EB-WO-27-2. In the case of under floor radiant heating, the basic components for the electric energy, heating system typically includes: 1. -
Page 4: System Or Water Flow
NOTE: Since this is an automatic temperature sensing system, both sensors and the complete control wiring are required before using or turning on this Electro-Boiler. TABLE 1 - ELECTRO-BOILER MODEL BTUH RATING EB-WO-13 46,000 13.5 KW EB-WO-18 61,400 18 KW... -
Page 5: Room Thermostat Placement
2. Prevents over control or false staging up and down when the temperature sensors are attempting to regulate – since Electro Industries’ zone controller also has staging “smarts”, the addition of the zone controller will provide smoother boiler temperature control. The zone board has a dial switch for each zone and the installer selects one of four zone capacity sizes. -
Page 6: Two-Temperature Operation Or Feature
CSA/us certification label, and manufacturer product liability. Electro Industries, Inc., cannot be held responsible for field modifications, incorrect installations, and conditions which may bypass or compromise the built-in safety features and controls. - Page 7 or backup gas/oil boiler, etc. Any instructions or comments made within this manual (or factory phone assistance) relating to the gas/oil furnace are provided as comments of assistance and “helps” only. CAUTION Hazards or unsafe practices could result in property damage, product damage, severe personal injury and/or death.
-
Page 8: Mechanical Installation
MECHANICAL INSTALLATION – UNDER-FLOOR RADIATION CAUTION Electro Industries Inc. requires the use of dielectric isolation between the boiler vessel supply and return piping when the boiler is plumbed using copper or any other dissimilar metal. Damage to the vessel caused by galvanic corrosion voids Electro Industries’ warranty. -
Page 9: Dual Heat
MECHANICAL INSTALLATION – DUAL HEAT CAUTION Electro Industries Inc. requires the use of dielectric isolation between the boiler vessel supply and return piping when the boiler is plumbed using copper or any other dissimilar metal. Damage to the vessel caused by galvanic corrosion voids Electro Industries’ warranty. -
Page 10: Electrical Hookup
ELECTRICAL HOOKUP Reference drawing BH502 1. 240 Volt Heating Power – route and install the proper current carrying conductors from service panel fuse or circuit breaker. See page 2 Specification Table and/or product nameplate for ratings. These models contain built-in circuit breakers and meet the requirement for local disconnect for appliances greater than 10 kW. -
Page 11: Standby Boiler
WARNING: The end switches from the zone valves must be an isolated contact with no voltage present on these wires or screw terminals. This is very important to make sure there isn’t any interference or feedback between the transformer operating the zone valve system and the transformer within this Electro-Boiler product. -
Page 12: Controller Setup
As it warms up outside the supply temperature is decreased downward from that point. In the case of Electro Industries’ WarmFlo, we begin at a minimum or comfort level supply temperature and ramp upward to the higher temperature as it gets colder outside. The boiler products simply use 0°... - Page 13 Circulator pump mode – as factory set, the circulator pump is controlled directly from the “W” input terminal. In this setup the circulator pump continues during load control interrupt (or optional remote standby switch). There is a provision within the controller board (inside) to allow the circulator pump to not operate during load control interrupt.
-
Page 14: Operational Tips
OPERATIONAL TIPS Normal/Standby Switch If this system does not have a standby operating (gas or oil) boiler, this switch must always be in the “normal” position. To activate standby boiler, simply position front panel switch to “standby”. Monitor Lights, Front Panel ... -
Page 15: Replacement Parts List
Replacement Parts @WFS3 Water sensor, 3 ft. @WFS255612 Outdoor sensor (OT) @EBSTU5623 Controller, temp. sensing UFUSE0440 2-amp fuse, fast blow (AGC2) 4038 Triac switch module 5127 Heating relay 5535 Safety hi-limit, manual, 205° 5537 First hi-limit, auto-reset, 180° 5453 Relief valve, 30 PSIG 5456A Gauge press/temp. -
Page 16: Warmflo Operational Information
7. Use general heating system logic information and basic understanding of the terminal block wiring functions measure various voltage points to determine proper operation. 8. Acquiring the PC software or Palm with serial port hookup cable is a positive tool for understanding and troubleshooting the WarmFlo controller. - Page 17 The time between stage turn on depends upon where the controller logic memory was after the last thermostat call or following a power up reset condition. The longest time between staging is from the power up condition because the logic does not have a history of previous thermostat calls. Once the history of several thermostat calls has been established within memory, it automatically returns to the last active stages, with an approximate 5 seconds between stage turn on.
-
Page 25: Slab Stat
OILER CCESSORIES OILER CCESSORIES ZONE CONTROLLER This will simplify your wiring and make zoning applications much easier. In addition, enhanced communicating features have the ability to stage the electric boiler based upon the connected zone capacity. Pumps, Actuators, Valves Standard Features EB-ZTA-1 - install within boiler cabinet •... -
Page 26: Circulating Pumps
Electro Industries’ boilers come standard equipped with outlet temperature/pressure gauge, pressure relief safety valve, and when applicable, the WarmFlo electronic control sensors. - Page 27 TWENTY YEAR (20) LIMITED WARRANTY ON SPIN FIN ELEMENTS Electro Industries, Inc. warrants that the spin fin elements of its products are free from defects in materials and workmanship through the twentieth year following date of installation. If any spin fin elements are found to have a manufacturing defect in materials or workmanship, Electro Industries will replace them.
- Page 28 ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED WITH RESPECT TO ALL PURCHASERS OR OWNERS. ELECTRO INDUSTRIES, INC. IS NOT BOUND BY PROMISES MADE BY OTHERS BEYOND THE TERMS OF THESE WARRANTIES. FAILURE TO RETURN THE WARRANTY CARD SHALL HAVE NO EFFECT ON THE DISCLAIMER OF THESE IMPLIED WARRANTIES.
