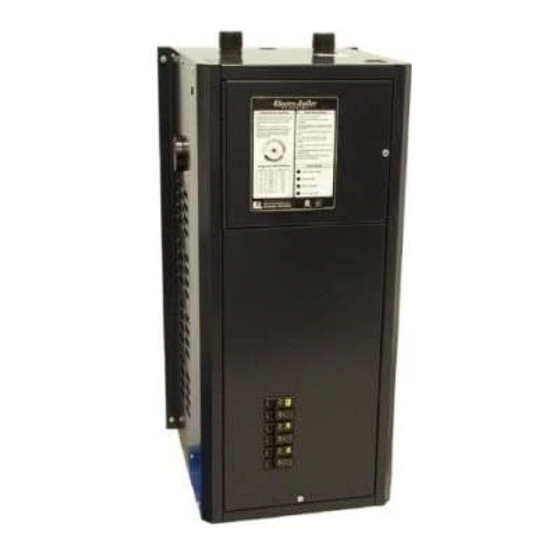

ELECTRO-BOILER
INSTALLATION & OPERATING INSTRUCTIONS
APPLICATION:
This Electro-Boiler series is factory equipped with outlet temperature sensing and
a smart controller which automatically stages the various elements to operate at
the field preset outlet temperature.
Primary application is any hydronic water heating system where reduced flow or
radiation can cause overheat conditions (example, zones). However, if it is a
mixture of large and small zones, the sudden capacity and flow changes may
cause some internal timing/overtemp conditions. With the mixture of zones the
zone controller ZTS-* option is highly recommended (see page 2).
This series is equipped for load management interrupt and can apply to standard
baseboard radiation, dual heat combinations, under floor radiant, wood boiler
supplement, etc.
ACCESSORIES:
Attached BL001 lists various accessory or option items which are not part of
basic Electro-Boiler. Also page 3 has additional information on slab stat. Page 2
gives information on a zone control update module which stages elements based
upon zone capacity.
Note:
This product meets the requirements of the ASME Boiler and Pressure
Vessel Code.
Drawings:
BX501
BX502
BH501
BS501
BL001
XX017
05/21/2009
TS Series
Model EB-S-13
EB-S-18
EB-S-23
EB-S-27
BI501
Advertisement
Table of Contents
Related Manuals for Electro Industries EB-S-13
Summary of Contents for Electro Industries EB-S-13
- Page 1 ELECTRO-BOILER TS Series INSTALLATION & OPERATING INSTRUCTIONS Model EB-S-13 EB-S-18 EB-S-23 EB-S-27 APPLICATION: This Electro-Boiler series is factory equipped with outlet temperature sensing and a smart controller which automatically stages the various elements to operate at the field preset outlet temperature.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Description Page Introduction System or Water Flow Multiple Zones & Radiant Temperatures Zone Controller Room Thermostat Placement Multiple Boilers Two-Temperature Operation or Feature Boiler/Plumbing Kit Placement Installation Requirements Mechanical Installation Under-Floor Radiant Dual Heat Electrical Hookup Water Fill Procedure Controller Setup Operational Tips Replacement Parts List... -
Page 3: Introduction
INTRODUCTION With this temperature sensing controller capability, the electric heating element stages are automatically turned on and off to establish a fixed outlet water temperature. This outlet temperature is sensed at the outlet pipe, the controller regulates four stages, and attempts to control the water temperature at a value determined by the setup arrangements. -
Page 4: System Or Water Flow
2. Prevents over control or false staging up and down when the temperature sensors are attempting to regulate – since Electro Industries’ zone controller also has staging “smarts”, the addition of the zone controller will provide smoother boiler temperature control. The zone board has a dial switch for each... -
Page 5: Room Thermostat Placement
PVC conduit. If the slab is already poured without conduit for slab stat, use electronic remote sensing thermostat such as Electro Industries’ ES-24-SRO or ES-24-C-RS. These devices only require a ¼” hole drilled in the floor at some convenient location (preferably off a center wall, not within 2 feet of outside wall). -
Page 6: Two-Temperature Operation Or Feature
CSA/us certification label, and manufacturer product liability. Electro Industries, Inc., cannot be held responsible for field modifications, incorrect installations, and conditions which may bypass or compromise the built-in safety features and controls. - Page 7 or backup gas/oil boiler, etc. Any instructions or comments made within this manual (or factory phone assistance) relating to the gas/oil furnace are provided as comments of assistance and “helps” only. CAUTION Hazards or unsafe practices could result in property damage, product damage, severe personal injury and/or death.
-
Page 8: Mechanical Installation
UNDER-FLOOR RADIATION CAUTION Electro Industries Inc. requires the use of dielectric isolation between the boiler vessel supply and return piping when the boiler is plumbed using copper or any other dissimilar metal. Damage to the vessel caused by galvanic corrosion voids Electro Industries’ warranty. -
Page 9: Dual Heat
– DUAL HEAT CAUTION Electro Industries Inc. requires the use of dielectric isolation between the boiler vessel supply and return piping when the boiler is plumbed using copper or any other dissimilar metal. Damage to the vessel caused by galvanic corrosion voids Electro Industries’ warranty. -
Page 10: Electrical Hookup
ELECTRICAL HOOKUP Reference drawing BH501 1. 240 Volt Heating Power – route and install the proper current carrying conductors from service panel fuse or circuit breaker. See page 2 Specification Table and/or product nameplate for ratings. These models contain built-in circuit breakers and meet the requirement for local disconnect for appliances greater than 10 kW. -
Page 11: Water Fill Procedure
7. If this is a dual heat application with standby boiler, optional kit EB-S-SB contains its own wiring instructions. 8. Remote Display – an optional remote display (4-wire stat cable) can be added, call factory for details. Also requires main board upgrade, @EBSTW5623. WATER ADDITIVES Unless the source water is unusually poor and/or rust elements, additives are not required. -
Page 12: Controller Setup
CONTROLLER SETUP Temperature set point – the front red “knob” allows for field or user setting of the outlet water temperature. The built-in sensor and controller will attempt to regulate the electric element stages around this set temperature. The smallest staging increment is 4.5 kW; therefore, there will some fluctuation around this set point. -
Page 13: Replacement Parts List
EL MODE, amber – when illuminated the system is in the electric mode. If it is not illuminated the utility load control receiver is in the interrupt or on-peak mode. If there is an optional or remote standby switch, the status of the standby switch is also monitored by this amber LED. ... -
Page 14: Troubleshooting/Repair Helps
TROUBLESHOOTING/REPAIR HELPS 1. This temp. sensing controller contains several interference suppression components, but as an electronic logic product, unpredictable and unusual transients or interference may sometimes cause strange results. If the temp. sensing controller is “acting strange”, one immediate step would be power down reset. -
Page 21: Slab Stat
OILER CCESSORIES OILER CCESSORIES ZONE CONTROLLER This will simplify your wiring and make zoning applications much easier. In addition, enhanced communicating features have the ability to stage the electric boiler based upon the connected zone capacity. Pumps, Actuators, Valves Standard Features EB-ZTA-1 - install within boiler cabinet •... -
Page 22: Bl001
Electro Industries’ boilers come standard equipped with outlet temperature/pressure gauge, pressure relief safety valve, and when applicable, the WarmFlo electronic control sensors. -
Page 23: Xx017
TWENTY YEAR (20) LIMITED WARRANTY ON SPIN FIN ELEMENTS Electro Industries, Inc. warrants that the spin fin elements of its products are free from defects in materials and workmanship through the twentieth year following date of installation. If any spin fin elements are found to have a manufacturing defect in materials or workmanship, Electro Industries will replace them. - Page 24 ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED WITH RESPECT TO ALL PURCHASERS OR OWNERS. ELECTRO INDUSTRIES, INC. IS NOT BOUND BY PROMISES MADE BY OTHERS BEYOND THE TERMS OF THESE WARRANTIES. FAILURE TO RETURN THE WARRANTY CARD SHALL HAVE NO EFFECT ON THE DISCLAIMER OF THESE IMPLIED WARRANTIES.
