TPM power
4 Type plate information – identification
The technical specifications can be found on your servo actuator's type plate according to the
following scheme.

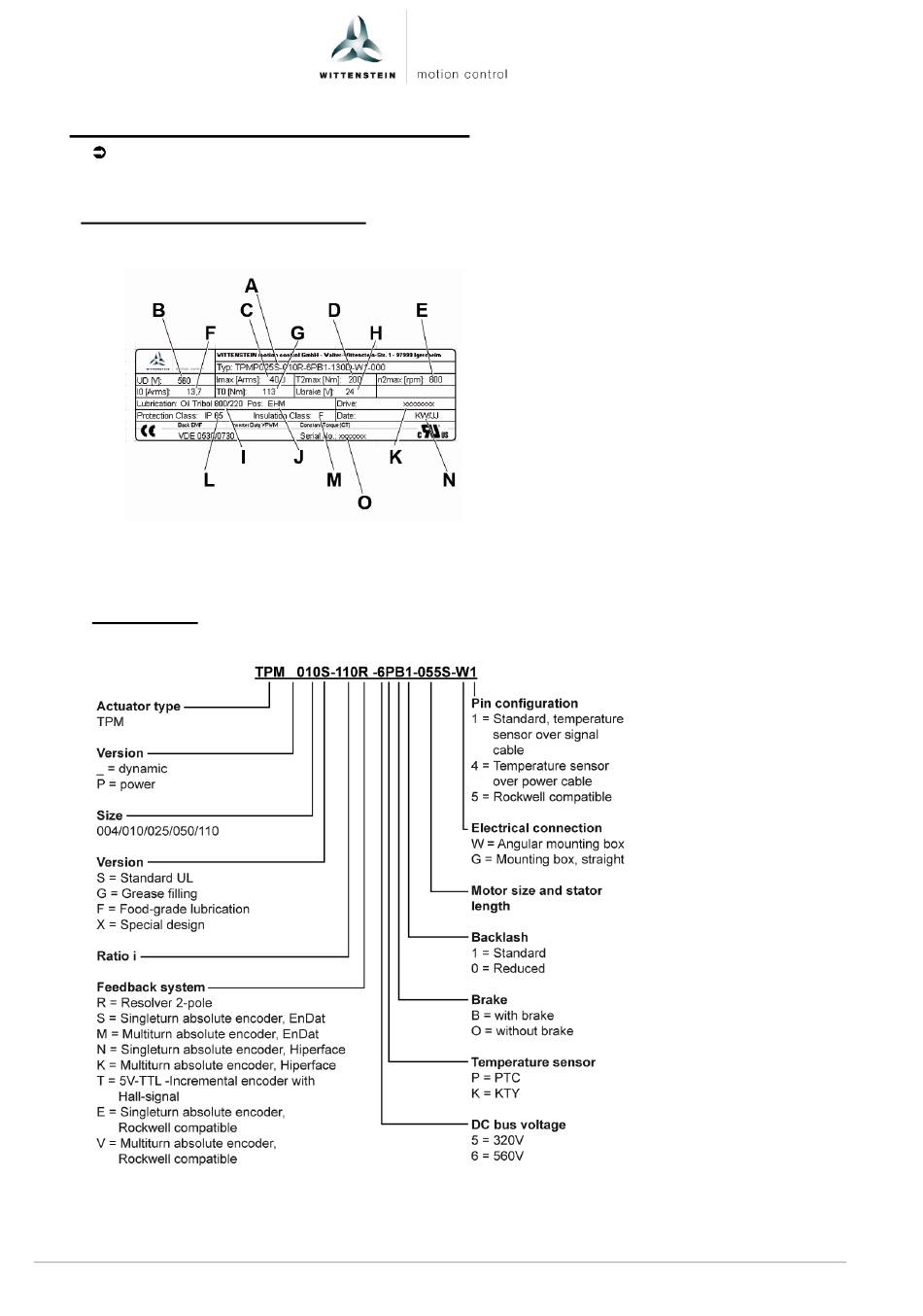

4.1 Identification plate, designation

The following specifications can be found on the identification plate:
Designation:
Seite en-6
Revision: 02
A Ordering code
B DC-Bus voltage
C Maximum current
D Maximum torque at gear output
E Maximum gear output speed
F Continuous stall current
G Continuous stall torque at gear output
H Brake voltage
I Lubricant
J Mounting position
K For use with drive
L Type of protection
M Insulation class
Bild 4.2
N Manufacturing date
O Serial number
4091-D021074
Quick Startup Guide
Release: 14.04.2010
