Quick Startup Guide

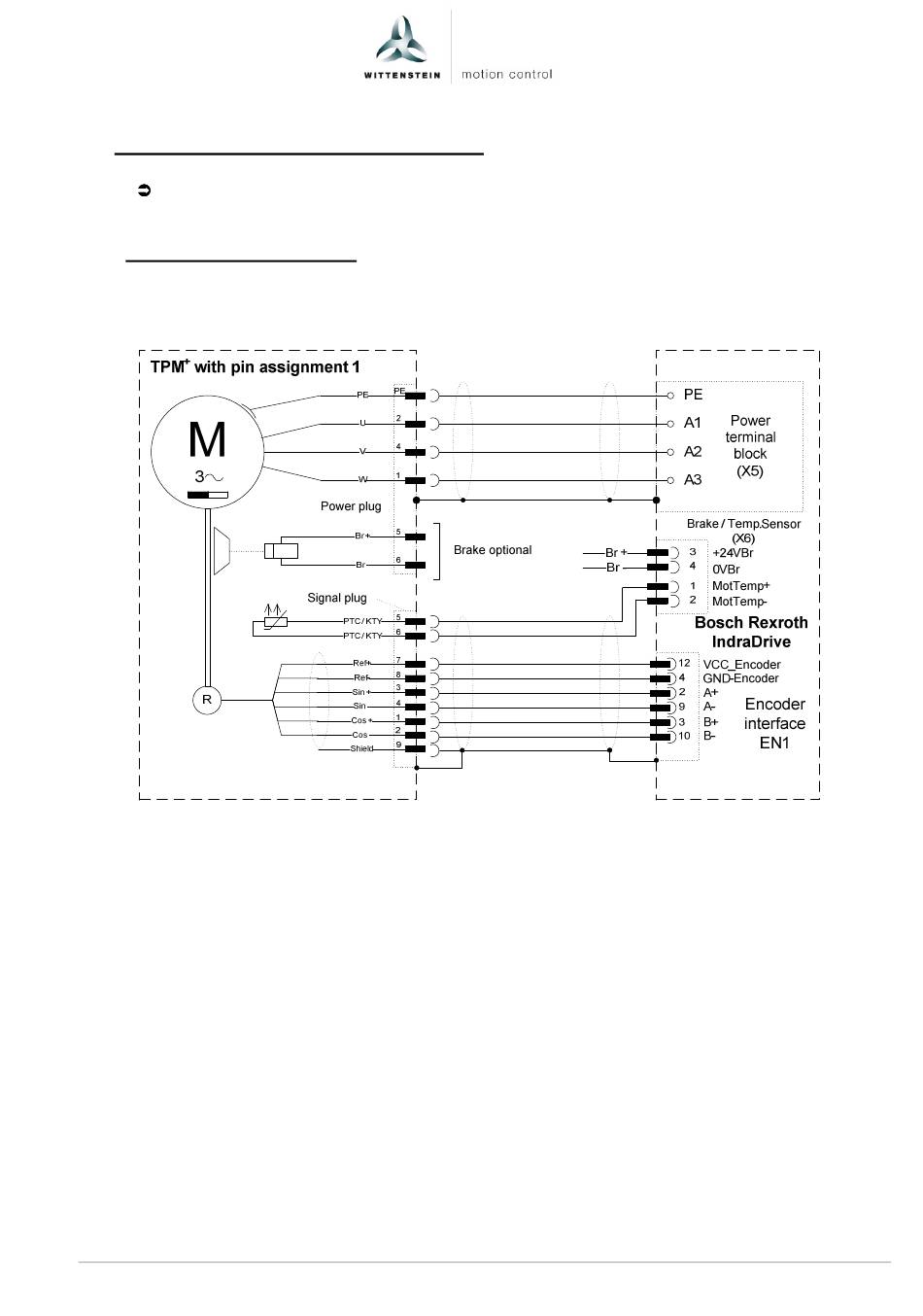

6 Connection schematic TPM

Detailed information on cable design and the type of shielding can be found in the
documentation from the servo drive manufacturer.
+
6.1 TPM
power with resolver
WITTENSTEIN motion control offers pre-manufactured and drag chain compatible cablesets for
this servo drive. Please take the required order informations from the TPM+ catalogue.
Seite en-13
Revision: 02
+

power

4091-D021074
+
TPM
power
Release: 14.04.2010
