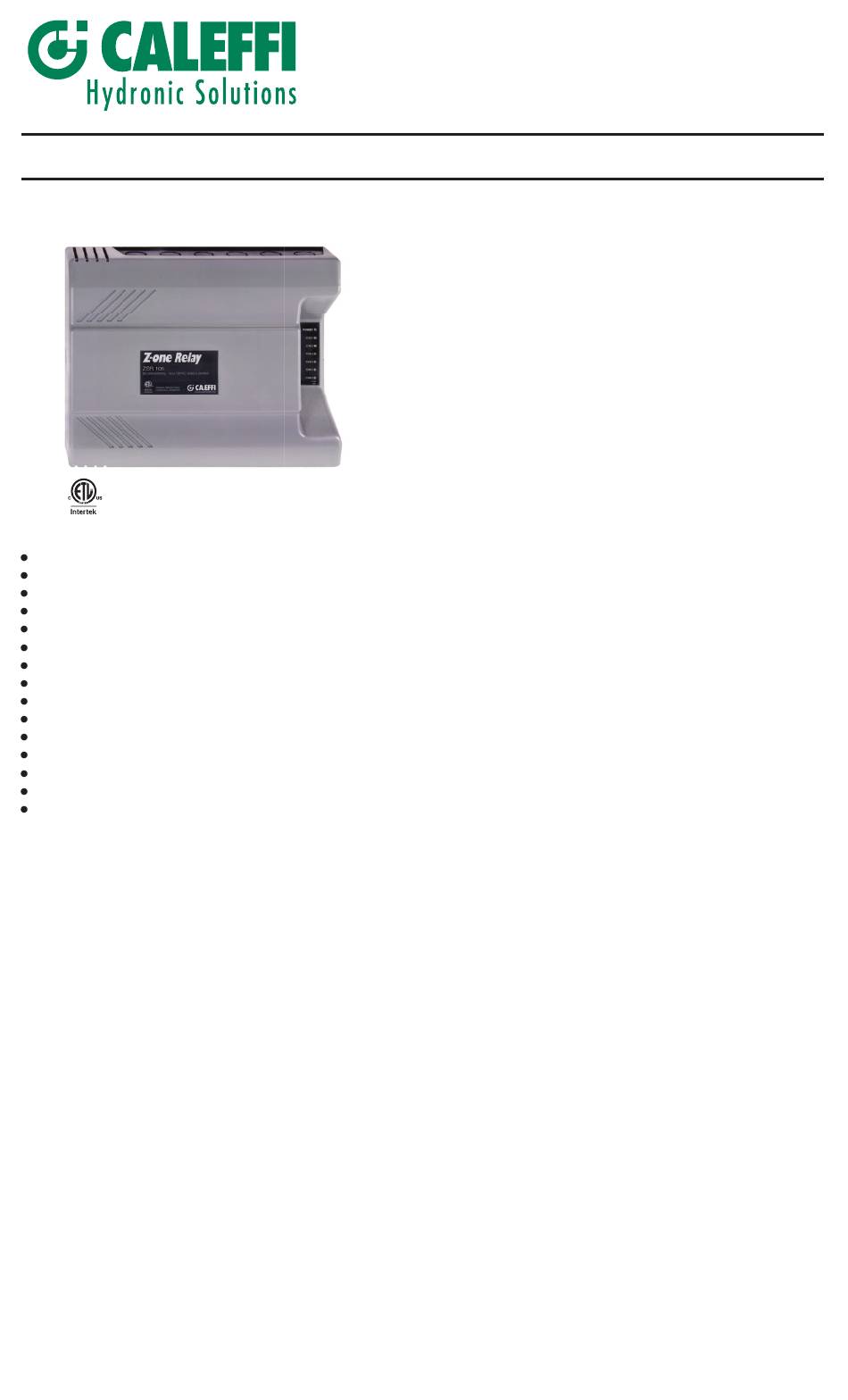

Z-one

Relay Multi-Zone Pump Control

™

Certified to CSA C22-2 No.24

Conforms to UL Standard 873

4009064

Compatible with low voltage 2, 3, or 4 wire thermostats

R, W, C and T T COM dual labeling at thermostat terminals

Z-oneLink™ unlimited zone expansion

120 VAC pump outputs

Remote Enable input 24 - 120 VAC

Selectable Priority with 1 hour time-out

Selectable Post Purge and Exercise

Dry contacts for ZONE 1 (DHW), capable of switching line voltage

High capacity transformer

Large terminal connections

Simpliﬁ ed wiring with extra ground terminals

Heavy duty sealed relays

All pumps fuse protected (with spare fuse)

Front LED Lights

100% Factory tested with 3 year warranty, ETL Approved

Product Range

Code ZSR103 Z-one™ Relay pump control.................................................................three zone

Code ZSR104 Z-one™ Relay pump control...................................................................four zone

Code ZSR106 Z-one™ Relay pump control.....................................................................six zone

Technical specifications

Materials

Housing plastic:

Front display lights:

Electrical knockouts:

Performance

Power supply:

Transformer voltage:

Maximum transformer load:

Electrical switch rating pump output:

Dry contact rating, Zone 1 ES, XX, AUX:

Replaceable fuses:

Working temperature range:

Maximum humidity:

Approvals:

Function

The ZSR series is a multi-zone pump and boiler

operating control for multiple zone hydronic heating or

cooling systems. The ZSR series interfaces with low

voltage thermostats, or any other low voltage controllers

having a switching action. The ZSR series controls up

to 3, 4, 5 or 6 heating circulator pumps (depending

on model selected), a primary pump and has LED

indicators to provide functional status and easy system

troubleshooting.

Conforms to UL873 / Certiﬁ ed to CSA C22 No 24, listed by ETL

www.caleffi.com

ZSR10X series

12 VA (ZSR103/4), 20 VA (ZSR106)

120 VAC, 5A each

120 VAC max, 2A each

Type 2AG, 5A slow blow

32°F (0°C)—115°F (45°C)

90% non-condensing

NA10334 G2.01

ABS

LED

(12) 1/2" size

120 VAC, 50/60 Hz

24 VAC

(20A max combined)
