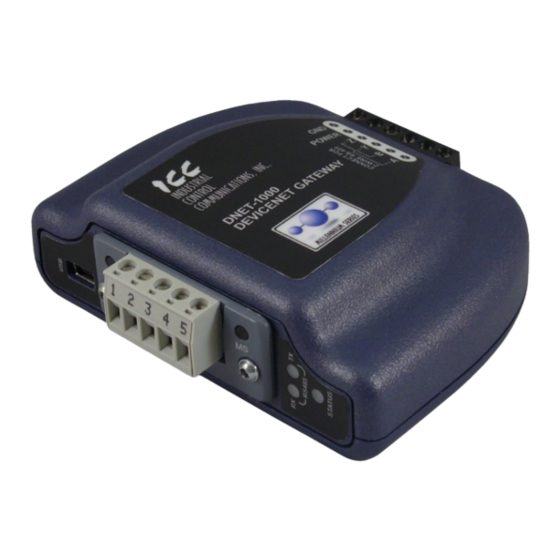

- Page 1 Instruction Manual INDUSTRIAL CONTROL COMMUNICATIONS, INC. DNET-1000 Multiprotocol DeviceNet / RS-485 Gateway January 1, 2016 ICC #10725 © 2016 Industrial Control Communications, Inc.
- Page 2 DNET-1000 User's Manual Part Number 10725 Printed in U.S.A. ©2016 Industrial Control Communications, Inc. All rights reserved OTICE SERS Industrial Control Communications, Inc. reserves the right to make changes and improvements to its products without providing notice. Industrial Control Communications, Inc. shall not be liable for technical or...
- Page 3 Usage Precautions Operating Environment • Please use the interface only when the ambient temperature of the environment into which the unit is installed is within the following specified temperature limits: -10 ∼ +60°C (+14 ∼ +140°F) Operation: -40 ∼ +85°C (-40 ∼ +185°F) Storage: •...
-
Page 4: Table Of Contents
LED Indicators ................20 Gateway Status ..................20 RS-485 Network Status ................ 20 DeviceNet LEDs ..................20 Configuration Concepts ............22 ICC Configuration Studio ..............22 General Object Editing Activities ............25 8.2.1 Device Settings ................26 8.2.2 USB Virtual COM Port Settings ............. 27 8.2.3... - Page 5 RS-485 Drivers ................38 10. DeviceNet Driver ................. 39 11. Troubleshooting ................. 40 12. Appendix A: Database Endianness .......... 42 12.1 Modbus - PROFIBUS Example ............. 44 12.2 Modbus - DeviceNet Example ............... 45 12.3 BACnet - DeviceNet Example ............... 46 12.4 BACnet - Modbus Analog Element Example.........
-
Page 6: Introduction
Note that different gateway firmware versions may provide varying levels of support for the various protocols. For optimal performance, always ensure that you are using the latest version of the ICC Configuration Studio and included firmware. This manual will primarily be concerned with the gateway’s hardware specifications, installation, wiring, configuration and operational characteristics. -
Page 7: Features
The gateway can be connected to a PC via a USB mini type-B cable. This simultaneously supplies power while providing the ability to configure the gateway, monitor data, and update firmware on the device using the ICC Configuration Studio. Refer to section 8.1 for more information. - Page 8 PLC-Style Database Manipulation Operations A variety of database logic operations are included which provide PLC-style manipulation of database values. Categories such as logical, arithmetic and filtering operations allow for autonomous control over value modification and data movement within the database. High-level signal conditioning is also realizable via the construction of compound formulas derived from the elemental building block operations provided.
-
Page 9: Gateway Concepts
3. Gateway Concepts The DNET-1000 is a member of the Millennium Series communication gateways. Members of this family are designed to provide a uniform interface, configuration and application experience. This commonality reduces the user’s learning curve, reducing commissioning time while simplifying support. All Millennium Series gateways are configured using the ICC Configuration Studio. - Page 10 The Millennium Series gateways also provide a powerful data-monitoring feature that allows the user to view and edit the database in real time, as well as view the status of service objects via the ICC Configuration Studio’s Database panel when connected via USB to a PC.
-
Page 11: Precautions And Specifications
4. Precautions and Specifications Rotating shafts and electrical equipment can be hazardous. Installation, operation, and maintenance of the gateway shall be performed by Qualified Personnel only. Qualified Personnel shall be: • Familiar with the construction and function of the gateway, the equipment being driven, and the hazards involved. -
Page 12: Maintenance Precautions
4.2 Maintenance Precautions • Do Not attempt to disassemble, modify, or repair the gateway. Contact your ICC sales representative for repair or service information. • If the gateway should emit smoke or an unusual odor or sound, turn the power off immediately. -
Page 13: Storage
4.6 Warranty This gateway is covered under warranty by ICC, Inc. for a period of 12 months from the date of installation, but not to exceed 18 months from the date of shipment from the factory. For further warranty or service information, please contact Industrial Control Communications, Inc. -
Page 14: Gateway Overview
5. Gateway Overview DeviceNet network status LED USB connector DeviceNet network terminal block DeviceNet module status LED RS-485 TX and RX LEDs Gateway status LED Gateway Overview (Front) Power terminals RS-485 terminals Chassis GND Gateway Overview (Back) -
Page 15: Power Supply Electrical Interface
Voltage rating ......7 - 24VDC Minimum Current rating ..150mA (@24VDC) • ICC offers an optional 120VAC/12VDC power supply (ICC part number 10755) that can be used to power the gateway from a standard wall outlet. • The power supply must be connected to the gateway’s terminal block at terminals TB:5 (POWER) and TB:6 (GND) as highlighted in Figure 1. - Page 16 Figure 2: RS-485 Interface Circuitry Schematic Figure 3 highlights the terminals on the gateway’s terminal block that are specific to RS-485 connections. Figure 3: Terminal Block RS-485 Connections...
-
Page 17: Installation
6. Installation The gateway’s installation procedure will vary slightly depending on the mounting method used. Before mounting the gateway, install the 4 black rubber feet (Figure 4) onto the bottom of the enclosure. Figure 4: Rubber Feet 6.1 Mounting the Gateway The gateway may be mounted on a panel, a wall or a DIN rail. -
Page 18: Din Rail Mounting
6.1.2 DIN Rail Mounting The DIN rail adapter (Figure 6) can clip onto 35mm and G-type rails. To mount the gateway to a DIN rail, clip the DIN rail adapter onto the DIN rail and mount the gateway on the screws (the screws should already be seated into the adapter at the proper height). -
Page 19: Wiring Connections
6.2 Wiring Connections Note that in order to power the unit, a power supply must also be installed. Refer to section 5.1 for more information. Mount the unit via the desired method (refer to section 6.1). Connect the various networks to their respective plugs/terminal blocks. Refer to Table 1 for the DeviceNet network terminal block pin assignments. - Page 20 The gateway is provided with a “chassis GND” terminal adjacent to the RS-485 terminal block. The “chassis GND” terminal is internally connected through a parallel R-C to the shield connection on the DeviceNet connector (as detailed in the DeviceNet specification). For optimal EMI performance, it is recommended to connect this chassis GND terminal to an appropriate protective ground.
-
Page 21: Led Indicators
7. LED Indicators The gateway contains several different LED indicators, each of which conveys important information about the status of the unit and connected networks. These LEDs and their functions are summarized here. 7.1 Gateway Status The gateway has one dichromatic LED to indicate the status of the device. On startup, the LED blinks a startup sequence: Green, Red, Green, Red. - Page 22 Table 2: DeviceNet Network Status LED LED State Indication Not online / No power On-line, one or more Green connections are established On-line, no connections Flashing Green established Critical link failure / Duplicate node address One or more connections Flashing Red timed-out Alternating Red/Green Self-test...
-
Page 23: Configuration Concepts
PC. The gateway is configured by the ICC Configuration Studio PC application, and this section will provide only a brief introduction to the configuration concepts. For more detailed information on how to install and use the Configuration Studio, refer to the separately-available training resources. - Page 24 Uploading a Device’s Configuration into a Project The current configuration of an online device can be uploaded into the Project panel by selecting a device under the Online Devices list heading and then: • Right-clicking on it and choosing Upload Configuration from the context-sensitive menu.
- Page 25 Downloading a Configuration to a Device To download a configuration to an online device, first select the device under the Device Configurations heading in the Project panel, and then navigate to Device…Download Configuration to Device. If the studio is currently online with only one compatible device, then the configuration will be downloaded to the online device.
-
Page 26: General Object Editing Activities
8.2 General Object Editing Activities The following editing activities apply for all types of configuration objects and project elements. Adding an Object To add an object, click on an item (protocol driver or Node, for example) in the Project panel. Any available objects for that item will be listed in the Available Objects panel (the panel title depends on the currently-selected item). -
Page 27: Device Settings
Copying and Pasting an Object To copy an object, first click on an item in the Project panel. An object can then be copied by: • Right-clicking on it and choosing Copy from the context-sensitive menu. • Pressing the <CTRL+C> keys on the keyboard. •... -
Page 28: Usb Virtual Com Port Settings
a project or an automation system to be clearly identifiable with their location or functional purpose. Database Endianness Selection Select the desired endianness for how data will be stored in the device’s internal database for multi-byte data types. For more information on database endianness, refer to Appendix A: Database Endianness. -
Page 29: Usb Serial Capture Window
Buffer Overflow". Additionally, the sniffer is able to detect receive errors on the serial port such as parity, overrun, and framing errors. If a receive error occurs on one or more characters of a packet, the sniffer will output the characters “ERR: Receive Error”. Note that because the serial sniffer mode captures packets at the protocol driver level, a protocol must be configured on the selected serial port to provide data to the USB virtual COM port. - Page 30 Clearing the Capture Log All captured data may be cleared at any time while connected to a device or after disconnecting from a device. This will also reset the connection time duration and all counters. To reset all captured data, perform one of the following actions: •...
-
Page 31: Batch Update Mode
Hit the <CTRL+SHIFT+S> keys on the keyboard. 8.2.4 Batch Update Mode The ICC Configuration Studio supports a batch update mode for quickly updating firmware, and optionally, the configuration on all discovered devices without user interaction. While in batch update mode, the studio will automatically go online with a device, update the firmware, update the configuration if a matching configuration is found in the project, and then go offline with the device. -
Page 32: Internal Logic Settings
At the end of the log, the studio records statistics for the batch update session. The statistics include the following information: Devices Discovered The total number of devices discovered while in batch update mode. Successful The total number of devices that were updated successfully. Failed The total number of devices that the studio failed to update. - Page 33 8.3.1.2 Timeout Time The timeout time is the maximum number of milliseconds for a break in network communications before a timeout will be triggered. This timeout setting is configured at the protocol level as part of a driver’s configuration, and used by the protocol drivers themselves to determine abnormal loss-of-communications conditions.
-
Page 34: Database Logic
8.3.2 Database Logic 8.3.2.1 Overview A variety of database logic operations are included which provide PLC-style manipulation of database values. Categories such as logical, arithmetic and filtering operations allow for autonomous control over value modification and data movement within the database. High-level signal conditioning is also realizable via the construction of compound formulas derived from the elemental building block operations provided. - Page 35 • The Indirect Copy operation outputs the value at the database location specified by the input source to the database location specified by the output destination. This operation can be used to access different database locations dynamically. It could also be used to create reusable database logic subroutines by selecting a different input and output location for the subroutine during each execution cycle.
- Page 36 • The Cosine operation calculates the expression cos(Input 1), where Input1 is in radians. • The Tangent operation calculates the expression tan(Input 1), where Input1 is in radians. • The Arc Sine operation calculates the expression sin (Input 1), where the output is in radians.
-
Page 37: Service Objects And Diagnostics Objects
database operation can be used for this purpose, such a scenario may most typically use the output of a “compare” operation in order to control whether or not other operations should execute (e.g. execute a certain operation only when some process variable is greater than a certain value, etc.) Allowing the conditional execution of database logic operations to be based on data values obtained via communications or as a result of other database logic operations enables the construction of flexible, hierarchical and dynamic data evaluation and... - Page 38 Master/client drivers commonly also provide the ability to debug configured service objects while the driver is running by way of optional diagnostics objects. Where supported, diagnostics objects can be added to each service object, and a database address can be designated at which to store the status information. The diagnostics object is a 16-byte structure containing elements such as a transmission counter, receive counter, receive error counter, current status, and the last error of the defined service object.
-
Page 39: Rs-485 Drivers
9. RS-485 Drivers The gateway supports a variety of serial drivers on its RS-485 port. For a list of supported protocols, refer to the Millennium Series Supported Drivers List. For detailed information on each protocol, refer to the specific protocol’s driver manual. -
Page 40: Devicenet Driver
10. DeviceNet Driver For detailed information on the DeviceNet protocol driver, refer to the separate DeviceNet protocol driver manual. -
Page 41: Troubleshooting
11. Troubleshooting Although by no means exhaustive, the following table provides possible causes behind some of the most common errors experienced when using the gateway. Problem Symptom Solution • Confirm that power is connected to the correct inputs on the RS- 485 terminal block. - Page 42 Any other number of flashes generated error the LED flashes indicates an internal device error. indicates an error Record the blink sequence and code contact ICC for further assistance. • Unplug and reconnect the USB The USB cable is cable. plugged into both the •...
-
Page 43: Appendix A: Database Endianness
12. Appendix A: Database Endianness A key feature of the Millennium Series gateways is the ability to change the byte order storage scheme for data in the database between big endian and little endian. The database endianness is the convention used to store multi-byte data to or retrieve multi-byte data from the database. - Page 44 Similarly, data is retrieved from the database starting at the low address. The endianness decides whether the first byte is interpreted as the least-significant byte or the most-significant byte of the multi-byte number. Here are some examples that demonstrate this. Figure 12 shows how the hex value 0x12345678 is retrieved from the database using a big endian byte order.
-
Page 45: Modbus - Profibus Example
simply stored into the database in the order they were received. Gateway endianness selection therefore has no effect on data storage or retrieval with a “bag of bytes” protocol driver. The other method is that used by networks that exchange data by means of an “object value”... -
Page 46: Modbus - Devicenet Example
In contrast, Figure 15 shows the effects of configuring the database for little- endian byte order. Holding registers 1 and 2 again have values of 0x1234 and 0x5678, respectively. However, when the PROFIBUS device receiving the input data from the gateway interprets these values, the resulting pairs of 2-byte values become 0x3412 and 0x7856, thus receiving incorrect values for holding registers 1 and 2. -
Page 47: Bacnet - Devicenet Example
For this reason it is important to configure gateways that use a bag-of-bytes style network, such as the DNET-1000, to use the same endianness as defined for that network. Figure 17: Modbus - DeviceNet Big Endian 12.3 BACnet - DeviceNet Example... - Page 48 reads analog value 0 from the BACnet network, stores the data into the database, and sends the input data onto the DeviceNet network. Figure 18 demonstrates the data flow from the BACnet network to the DeviceNet network through a gateway configured to use a little endian database. Because the DeviceNet specification defines multi-byte values within the byte array to be interpreted as little endian, it is recommended that the database be configured for little-endian byte order when using DeviceNet.
-
Page 49: Bacnet - Modbus Analog Element Example
Figure 19: BACnet - DeviceNet Big Endian 12.4 BACnet - Modbus Analog Element Example This example exhibits two networks that both use an object value scheme to exchange data. In this scenario, the database endianness is irrelevant if the data types are the same for both networks. -
Page 50: Bacnet - Modbus Binary Element Example
Figure 21: BACnet - Modbus (Analog Objects & Registers) Little Endian 12.5 BACnet - Modbus Binary Element Example This example also contains two networks that both employ an object value method for exchanging data, but unlike the previous example, the database endianness does affect the end-to-end alignment of the data. - Page 51 Figure 22: BACnet - Modbus (Binary Objects & Discretes) Little Endian However, when the database is configured for a big-endian byte order, binary values 1…8 correspond to coils 9…16, binary values 9…16 correspond to coils 1…8, and so on. This can be seen in Figure 23. Since the most significant bytes of the Modbus registers that the coils map to are now mapped to lower addresses, the alignment between the two networks’...
-
Page 52: Appendix B: Diagnostics Objects
13. Appendix B: Diagnostics Objects This section details the information that is enabled by adding a diagnostics object to a service object. Figure 24 diagrams the structure of this status information. Because this 16-byte structure resides in the database at a user-designated location, it can be accessed from any supported network or protocol in order to continuously determine the health and performance of the corresponding service object. - Page 53 Table 4: Status / Error Codes Status / Error Description Code (Hex) 0x00 No Error 0xF0 Invalid Data Address 0xF1 Data Error 0xF2 Write To Read-Only 0xF3 Read From Write-Only 0xF4 Target Busy 0xF5 Target Error 0xF6 Cannot Execute 0xF7 Mode Error 0xF8 Other Error...
-
Page 54: Appendix C: Bacnet Pics
V5.100 BACnet Protocol Revision: Product Description: The DNET-1000 is a DeviceNet to RS-485 multiprotocol gateway. This product supports native BACnet, connecting directly to the MS/TP LAN using baud rates of 9600, 19200, 38400, 57600, 76800, and 115200. The device can be configured as a BACnet Client or as a BACnet Server. - Page 55 Standard Object Types Supported: See “Object Types/Property Support Table” for object details. Data Link Layer Options: BACnet IP, (Annex J) BACnet IP, (Annex J), Foreign Device ISO 8802-3, Ethernet (Clause 7) ANSI/ATA 878.1, 2.5 Mb. ARCNET (Clause 8) ANSI/ATA 878.1, RS-485 ARCNET (Clause 8), baud rate(s) ______ MS/TP master (Clause 9), baud rate(s): 9600, 19200, 38400, 57600, 76800, 115200 MS/TP slave (Clause 9), baud rate(s): ______...
- Page 56 If this product is a communication gateway, describe the types of non-BACnet equipment/networks(s) that the gateway supports: Refer to protocol-specific manuals for other supported protocols.
- Page 57 Object Types/Property Support Table The following table summarizes the Object Types/Properties supported. Object Type Property AV MSI MSO MSV Object Identifier Object Name Object Type System Status Vendor Name Vendor Identifier Model Name Firmware Revision App Software Revision Protocol Version Protocol Revision Services Supported Object Types Supported...
- Page 58 INDUSTRIAL CONTROL COMMUNICATIONS, INC. 1600 Aspen Commons, Suite 210 Middleton, WI USA 53562-4720 Tel: [608] 831-1255 Fax: [608] 831-2045 http://www.iccdesigns.com Printed in U.S.A...
