ICC ETH-1000 Quick Start Manual

Chillgard lc for bacnet ms/tp
Hide thumbs Also See for ETH-1000:

Advertisement

Quick Links

Download this manual See also: Instruction Manual, Instruction and Installation Manual
ICC
INDUSTRIAL CONTROL COMMUNICATIONS, INC.
ETH-1000 Chillgard LC Quick Start Guide for BACnet
This document provides a brief overview of the connections and settings that must be used to connect a
preconfigured ETH-1000 gateway to a MSA Chillgard LC Refrigerant Monitor. This document also contains the
BACnet object mapping for the application and some troubleshooting tips. For more information, please refer to
the ETH-1000 User's Manual available at http://www.iccdesigns.com/products/millennium/eth-1000.html.
Wiring
Power Supply Wiring
A 7 – 24V DC power supply must be connected to the gateway's terminal block at terminals TB:5 (POWER) and
TB:6 (GND) as highlighted in Figure 2.
Page 1 of 10
MS/TP

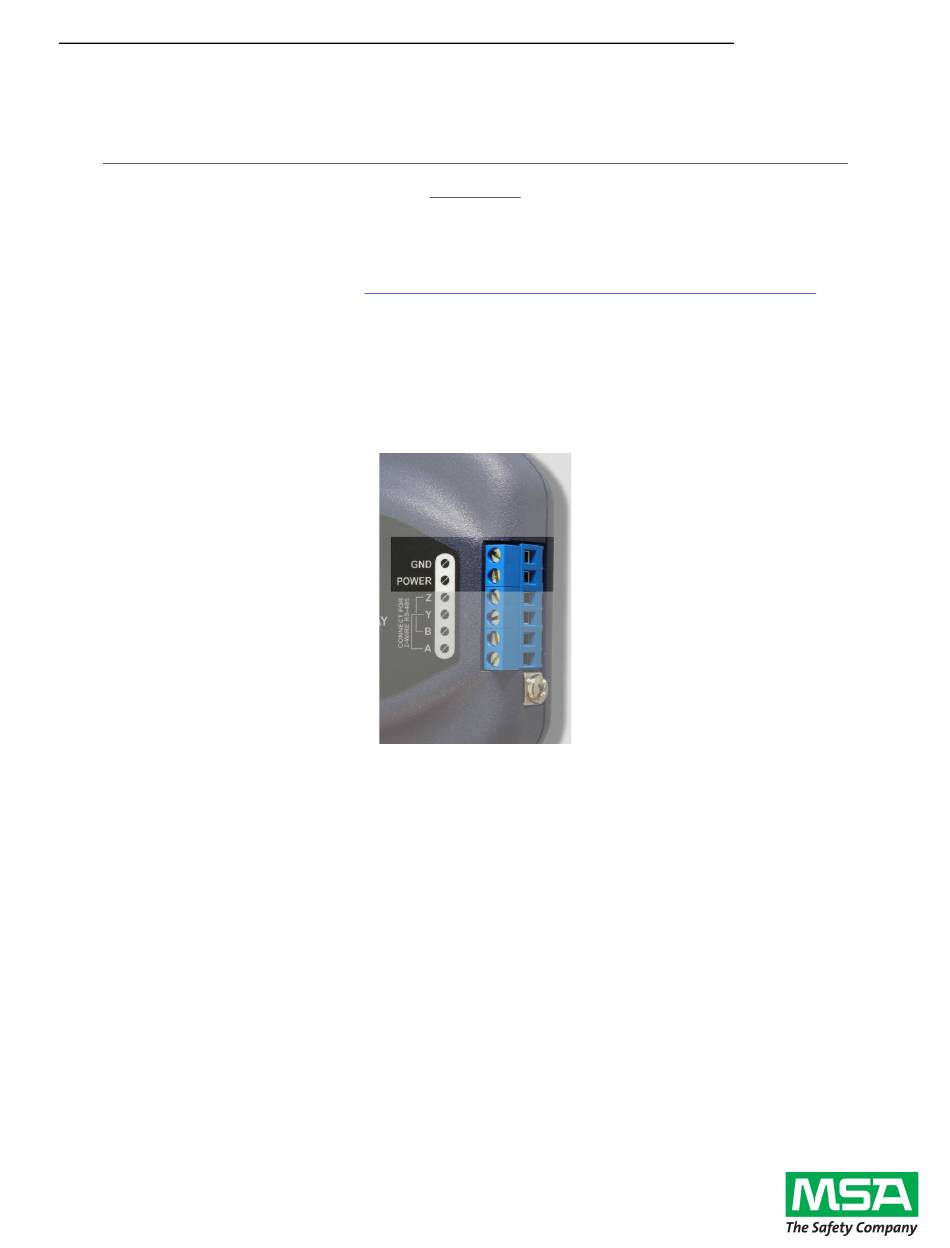

Figure 1: Terminal Block Power Supply Connections
0720-160-MC
05.23.2014
1600 Aspen Commons, Suite 210
Middleton, WI, USA
53562
Tel:
(608) 831-1255
Fax: (608) 831-2045
Email: sales@iccdesigns.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ETH-1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICC ETH-1000

Summary of Contents for ICC ETH-1000

  • Page 1 This document provides a brief overview of the connections and settings that must be used to connect a preconfigured ETH-1000 gateway to a MSA Chillgard LC Refrigerant Monitor. This document also contains the BACnet object mapping for the application and some troubleshooting tips. For more information, please refer to the ETH-1000 User’s Manual available at http://www.iccdesigns.com/products/millennium/eth-1000.html.
  • Page 2 1600 Aspen Commons, Suite 210 Middleton, WI, USA 53562 Tel: (608) 831-1255 Fax: (608) 831-2045 INDUSTRIAL CONTROL COMMUNICATIONS, INC. Email: sales@iccdesigns.com Wiring the Gateway to the Chillgard LC Connect the “RS-485 To Sensor Module” terminals −, +, and G on the Chillgard LC to the gateway’s terminal block at terminals TB:2 (B), TB:1 (A), and TB:6 (GND) as shown in Figure 2.

  • Page 3: Ethernet Network Settings

    The network settings may need to be modified to be compatible with your network. These settings can be modified in the ICC Configuration Studio by selecting “Ethernet” in the Project Pane and changing the settings in the Settings Pane as shown in Figure 3.
  • Page 4 (608) 831-1255 Fax: (608) 831-2045 INDUSTRIAL CONTROL COMMUNICATIONS, INC. Email: sales@iccdesigns.com Figure 5: BACnet Device Settings Table 1: Default BACnet Settings Setting Default Value UDP Port 47808 (0xBAC0) Device Name ETH-1000 Device Instance 2420 Page 4 of 10 05.23.2014 0720-160-MC...

  • Page 5: Bacnet Object Mapping

    (608) 831-1255 Fax: (608) 831-2045 INDUSTRIAL CONTROL COMMUNICATIONS, INC. Email: sales@iccdesigns.com BACnet Object Mapping Table 2 provides a listing of the BACnet objects supported by the configuration preloaded on the ETH-1000 gateway. Table 2: BACnet Object Mapping Units Instance ID...
  • Page 6 1600 Aspen Commons, Suite 210 Middleton, WI, USA 53562 Tel: (608) 831-1255 Fax: (608) 831-2045 INDUSTRIAL CONTROL COMMUNICATIONS, INC. Email: sales@iccdesigns.com Units Instance ID Object Name Description Multiplier Definition Of Encoded Data Caution Setpoint for Sensor AI14 S2 Caution Level PPM (96) 1.000000 30 to 980 Warning Setpoint for Sensor...
  • Page 7 1600 Aspen Commons, Suite 210 Middleton, WI, USA 53562 Tel: (608) 831-1255 Fax: (608) 831-2045 INDUSTRIAL CONTROL COMMUNICATIONS, INC. Email: sales@iccdesigns.com Units Instance ID Object Name Description Multiplier Definition Of Encoded Data Warning Setpoint for Sensor AI35 S4 Warning Level PPM (96) 1.000000 40 to 990 AI36...
  • Page 8 1600 Aspen Commons, Suite 210 Middleton, WI, USA 53562 Tel: (608) 831-1255 Fax: (608) 831-2045 INDUSTRIAL CONTROL COMMUNICATIONS, INC. Email: sales@iccdesigns.com Units Instance ID Object Name Description Multiplier Definition Of Encoded Data Gas Concentration for AI52 S6 Concentration PPM (96) 1.000000 -20 to 1050 Sensor 6 0 - None...
  • Page 9 1600 Aspen Commons, Suite 210 Middleton, WI, USA 53562 Tel: (608) 831-1255 Fax: (608) 831-2045 INDUSTRIAL CONTROL COMMUNICATIONS, INC. Email: sales@iccdesigns.com Units Instance ID Object Name Description Multiplier Definition Of Encoded Data 0 - None No Units Bit 0 – Caution AI73 S8 Alarm State Alarm State for Sensor 8...

  • Page 10: Troubleshooting

    RS-485 port is configured for Modbus Sniffer. 5. Chillgard LC Data Confirmation a. View the gateway’s internal database via the Database pane in ICC Configuration Studio and select the 16-bit Unsigned data type from the dropdown. There should be some highlighted cells which do not show a value of 0.
