Technical Procedure

Required Tools:

•
#2 Phillips Screwdriver
•
9/16" Socket
•
10mm Deep Socket

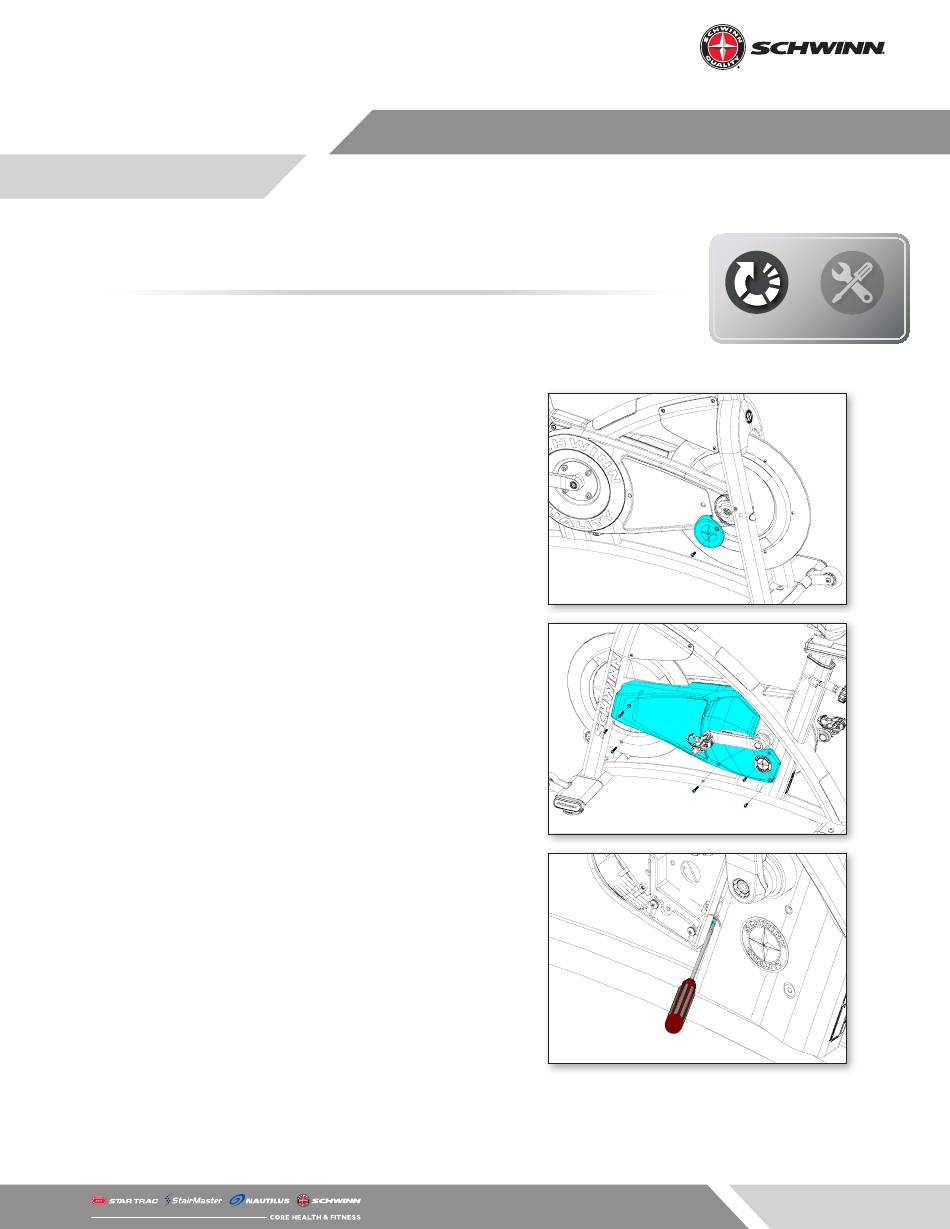

1.
Use a #2 phillips screwdriver to remove the screw securing
the right side flywheel cap to the bike, then remove the
cap.
2.
Use a #2 phillips screwdriver to remove the screws securing
the left generator cover to the bike
3.
With the left generator cover removed, use a screwdriver to
remove the screw hidden by the generator board, angled
as shown.

Generator Belt Replacement

Applies to: AC Power (9-7300)
Links
Latest Rev.
Service Manual
Page 1
637-8642 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9-7300 and is the answer not in the manual?

Questions and answers

Related Manuals for Schwinn 9-7300

Summary of Contents for Schwinn 9-7300

  • Page 1 Technical Procedure Generator Belt Replacement Applies to: AC Power (9-7300) Links Required Tools: Latest Rev. Service Manual • #2 Phillips Screwdriver • 9/16” Socket • 10mm Deep Socket Use a #2 phillips screwdriver to remove the screw securing the right side flywheel cap to the bike, then remove the cap.
  • Page 2 Technical Procedure Use a #2 phillips screwdriver to remove the screws securing the outer chain guard to the bike Remove the outer chain guard. TECH TIP: Slowly rotate the user right side crank arm toward the rear of the bike to help with removal of the outer chain guard.
  • Page 3 Technical Procedure Remove the tension bolt covers from the front of the bike Using a 10mm deep socket, remove the left and right-side tension screws from the front forks of the bike. TECH TIP: If an accessory (such as the Body Bar Holster) is lim- iting access to the tensioning nuts, use a 6mm allen key with a 10mm deep socket on the end of it to work within the clearance available.
  • Page 4 Technical Procedure Loop the free end of the belt/band over the generator pulley. TECH TIP: If the generator band slips off of the flywheel pulley, remove the finger guards with a #2 phillips screwdriver - it makes placing the belt/band into the pulley groove much easier.
