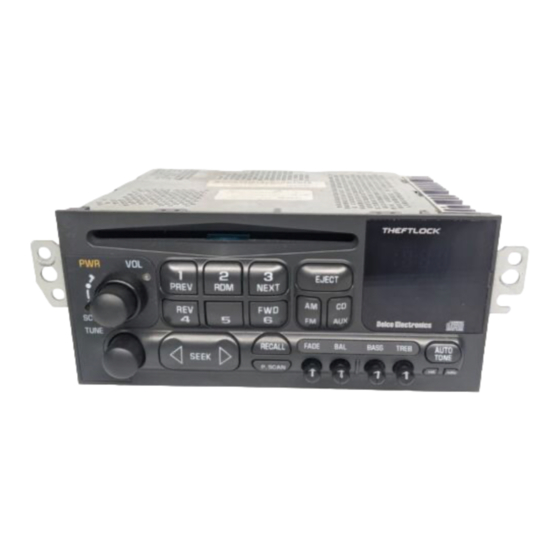

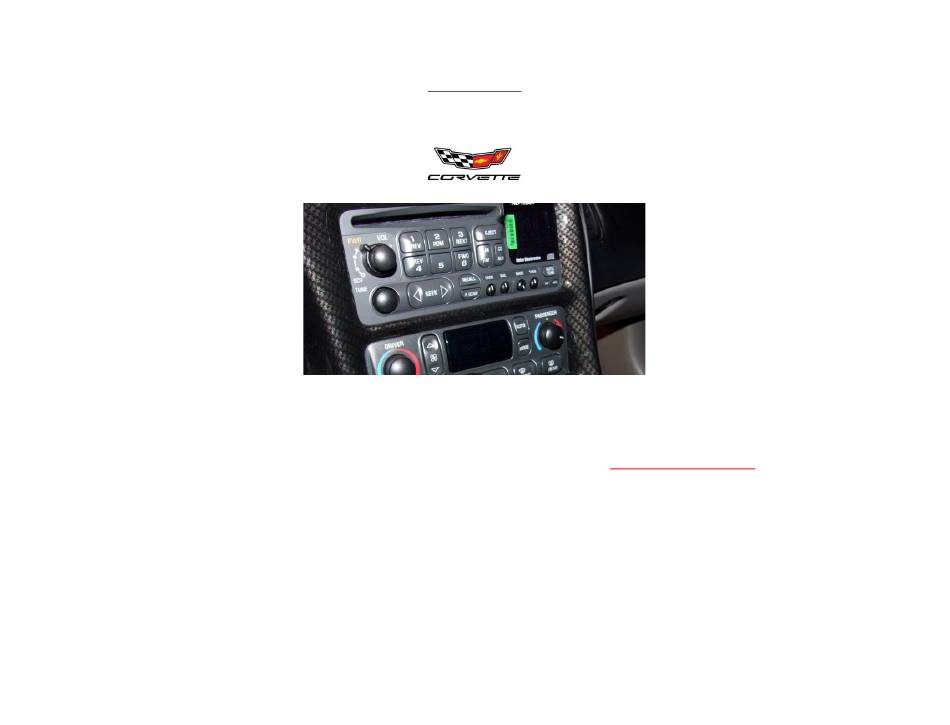

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 Newest version (11/19/20) C5-HF QUICK START BLUETOOTH INSTALLATION GUIDE FOR SELECT 1997-04 CORVETTE WITHOUT 12-DISC CHANGER Created Februa 19, 2013 Revised July 2, 2021...
- Page 2 PRODUCT SAFETY & DISCLAIMER READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING, FAILURE TO DO SO MAY CAUSE PERSONAL INJURY OR DAMAGE TO PRODUCT AND/OR PROPERTY • This installation guide is provided as a GENERAL installation guide, some vehicles vary and may require additional steps. We do not accept responsibility for third party labor charges or modifications.
- Page 3 Fig. 3 Fig. 6 push button/Microphone 7. Consider install location for push button/microphone. Push button must be within reach and facing driver for voice commands and phone dialog (cable is 6ft. long). We recommend completing the rest of the install prior to securing push button/mic to dashboard. When ready to install simply remove tape backing and secure to surface Fig.
- Page 4 8. Connect or Tap installation harness red wire (See Fig. 2) to ACC (Accessory) power supply in vehicle. We suggest one of the following options: - In 1997-03, locate yellow wire on 3-pin plug under passenger toe board near BCM (may be covered with black duct tape). Yellow wire is accessory supply.
- Page 5 2. Insert the 3ft. USB cable male terminal (See Fig. 11) through the ¾” hole created in step 1 and plug into USB port on Module (See Fig. 11) Fig. 13 Flush mount USB Terminal Fig. 11 Flush mount 3 ft. USB cable Fig.
- Page 6 2. Insert USB male terminal through hole in bracket (See Fig. 16) and Bluetooth Pairing and Connection connect to USB port on Module (See Fig. 4) This process is required the first time you use the C5-HF. After initial pairing, the C5-HF automatically reconnects with paired phone upon entering vehicle.
- Page 7 Bluetooth Operation Feature comparison: Bluetooth profiles; namely Hands-free calling (See Table 1) and music streaming (A2DP). Music streaming kits (See Table2) Press “AUX” button on radio to enter Bluetooth Mode. Table 1 2. Use radio volume knob to set playback level Modules A2DIY-C5CD C5CD-HF A2DIY-C5...
- Page 8 In order to pair phone make sure no other phones are connected. Once Bluetooth is turned off, the module will be ready for pairing. © 1995-Jul-21 Discount Car Stereo, Inc. All rights reserved. Information in this document is 10. Will I be able to connect flash drive etc. to the USB port? subject to change without notice.
