Courtesy of: DiscountCarStereo.com
Serving the internet community since 1995

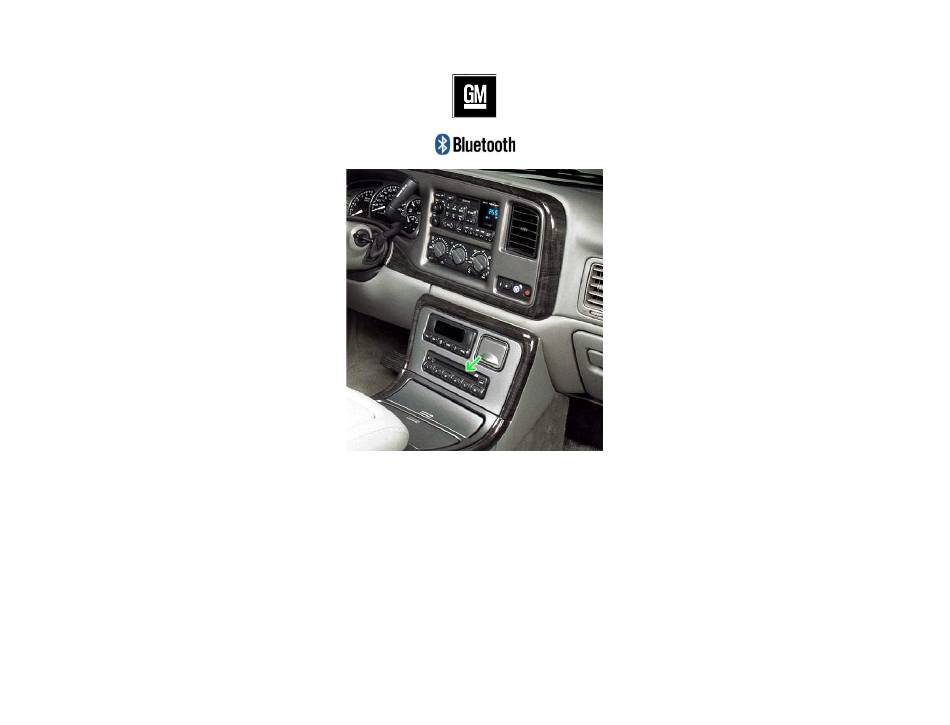

A2D-GM1
BLUETOOTH MUSIC STREAMING INSTALLATION GUIDE FOR GM
WITH SEPARATE /SLAVE UNIT
Created October 10, 2015
Revised August 17, 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A2D-GM1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Discount Car Stereo A2D-GM1

Summary of Contents for Discount Car Stereo A2D-GM1

  • Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2D-GM1 BLUETOOTH MUSIC STREAMING INSTALLATION GUIDE FOR GM WITH SEPARATE /SLAVE UNIT Created October 10, 2015 Revised August 17, 2021...
  • Page 2 CD, or CD changer. If this describes your Disconnect factory 9-pin plug from radio connector (See Fig. 2) vehicle, then the A2D-GM1 is for you! In the past, adding any type of adapter to Note: Connect module harness to 9-pin port on radio (See Fig. 2), these vehicles required disconnecting the separate unit, but thanks to the A2D- not the 9-pin port on slave unit.
  • Page 3 2. Connect factory 9-pin plug (removed in step 1) to installation harness Notes: 9-pin connector (white) (See Fig. 3) 1. Not applicable to GM 32-pin radios. See our A2D-GM2 if vehicle has separate unit (usually CD changer) Do not connect module directly to separate/slave unit, otherwise Bluetooth playback is impaired.
  • Page 4 Use wireless remote to perform the following functions on any iOS7.0 and higher or Android 4.4 and higher. Remote Control: The wireless remote is optional and not required for the A2D-GM1 to work, however instead of fumbling Smartphone etc., simply press remote control buttons while also keeping your eyes on the road.
  • Page 5 Theftlock radio (See Fig. 5) and some also requires a slave unit (See Fig. 6). player has a “Cassette” 3. Launch audio device streaming application. Feature AUX-GM1 PXDXGM1 A2D-GM1 BLU-GM1 4. Set audio device volume to 80%-- adjust as needed based on playback Retains separate unit* ✓ ✓...
  • Page 6 Will the A2D-GM1 work? YES, and both slave units remain connected and functional. 7. If in the future I decide to remove the A2D-GM1, will I have trouble with car wiring? the A2D-GM1 plug-n-play does not interfere with factory wiring integrity.
