Discount Car Stereo BLU-C5 Nstallation Instructions

Music streaming module for seelect 1997-04 corvette
Hide thumbs Also See for BLU-C5:
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
Courtesy of: DiscountCarStereo.com
Serving the internet community since 1995

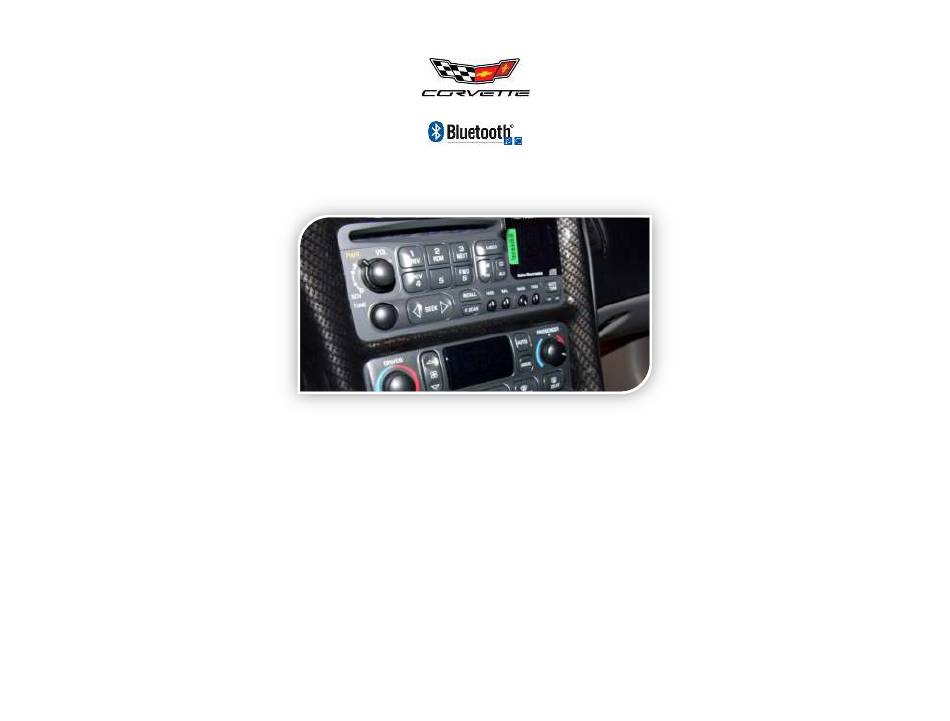

BLU-C5
(v 4.6.20)
MUSIC STREAMING MODULE INSTALLATION INSTRUCTIONS FOR SEELECT 1997-04 CORVETTE
Created January 16, 2013
Revised July 30, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLU-C5 and is the answer not in the manual?

Questions and answers

Related Manuals for Discount Car Stereo BLU-C5

Summary of Contents for Discount Car Stereo BLU-C5

  • Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 BLU-C5 (v 4.6.20) MUSIC STREAMING MODULE INSTALLATION INSTRUCTIONS FOR SEELECT 1997-04 CORVETTE Created January 16, 2013 Revised July 30, 2020...
  • Page 2 2. Connect factory 20-pin plug (from step 1), to matting connector (white) on installation harness (See Fig. 2). The BLU-C5 module, adds music streaming capabilities to all C5 with original Theftlock radios (Bose or non-Bose). User decide if to install module behind the radio or (when available) to 10-pin plug in trunk/hatch.
  • Page 3 Revision (4.6.21) Alternate 12V Acc. supply: Applies to installations to radio with PXHGM4 or PXHGM4 + USB harnesses only. We recommend taping fuse #22 or #11 of interior fuse box What’s new: which is located under passenger toe board next to BMC (See Fig. 5). 1.
  • Page 4 Installation 2 (To 10-pin plug with PXHGM2 harness) With the PXHGM2 harness, module connects to factory 10-pin plug in trunk/hatch (See Fig. 6). 12-disc CD changer (if present) must be disconnected. To retain use of the changer, purchase our A2D-C5 instead.
  • Page 5 Alternate 12V Acc. supply: We recommend taping fuse #22 or #11 of interior fuse box located under passenger seat behind toe board (See Fig. 11). The add-a-fuse mini-tap circuit seen in Fig. 10 may be use for this purpose. Fig. 8 10-pin connector 3.
  • Page 6 Also, if smartphone volume is set too high, it may cause module to “clip” and streaming will become intermittent. To resolve, lower volume on audio device. (See FAQ # 14) The BLU-C5 with PXHGM2 installation will turn on/off with ignition key. Noteworthy : On Androids, it is possible to change paired device name (e.g.

  • Page 7: Optional Equipment

    Optional equipment: Operation: The following three options are not required for operation; however, these do enhance user experience. Use wireless remote to perform the following functions on any iOS7.0 and higher To add either to order, tick option on product page. or Android 4.4 and higher.
  • Page 8 USB charging kit Installing optional USB charging kit: (not for USB sticks/thumb drives) Optional USB “Fast charge” option for most energy hungry devices. Custom A. Flush to dash/panel requires drilling a ¾” hole in the dash install USB charging port in a convenient location and discover how this B.

  • Page 9: Bracket Mount

    Bracket Mount (No drilling) Locate a flat surface at location of choice within 3.2 ft. of radio to mount USB support bracket (See Fig. 18) Use tape backing or screws to secure bracket to surface Fig. 15 Fig. 18 Snap USB head (See Fig. 16) to hole in panel until flush with surface mounting bracket (See Fig.

  • Page 10: Test Operation

    5. If correct operation is confirmed go ahead and reinstall the Radio. Controls from radio buttons Table 2 (Music streaming only) Modules A2D-C5 BLU-C5 Retains changer playback • Requires working CD changer • Audio input jack (Aux in) USB charging port •*...

  • Page 11: Frequent Asked Questions

    Frequent asked questions 7. It is possible to install the BLU-C5 at radio instead of trunk/hatch? YES; select the PXHGM4 or PXHGM4 with USB installation harness from product page. Does the BLU-C5 require the 12-disc CD changer to work? 8. Why do I have to connect an accessory wire to fuse box. Is there not CD changer not required and if present will need to be disconnected.
  • Page 12 For additional questions, email support@discountcarstereo.com © 1995-Jul-20 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
