Discount Car Stereo BLU-C5 Installation Instructions Manual

Music streaming module for seelect 1997-04 corvette
Hide thumbs Also See for BLU-C5:
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
Courtesy of: DiscountCarStereo.com
Serving the internet community since 1995
BLU-C5
(v 4.6.20)
MUSIC STREAMING MODULE INSTALLATION INSTRUCTIONS FOR SEELECT 1997-04 CORVETTE
Created January 16, 2013
Revised April 23, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLU-C5 and is the answer not in the manual?

Questions and answers

Related Manuals for Discount Car Stereo BLU-C5

Summary of Contents for Discount Car Stereo BLU-C5

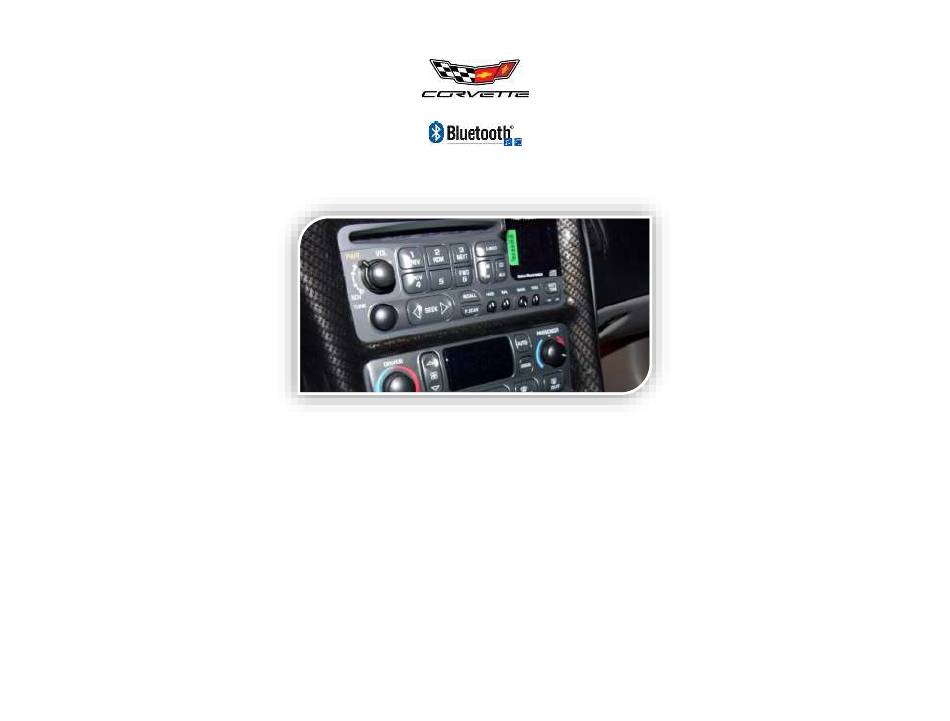

  • Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 BLU-C5 (v 4.6.20) MUSIC STREAMING MODULE INSTALLATION INSTRUCTIONS FOR SEELECT 1997-04 CORVETTE Created January 16, 2013 Revised April 23, 2020...
  • Page 2 2. Connect factory 20-pin plug removed from radio to matting connector on installation harness (See Fig. 2). The BLU-C5 module, adds music streaming capabilities to all C5 with original CD or Cassette radio (Bose o non-Bose). User elect to install module behind the radio or (if available) to 10-pin plug in trunk/hatch.
  • Page 3 Important wiring revision (4.6.20) update: Alternate 12V Acc. supply: Installing at the radio (with either the PXHGM4 or PXHGM4 + USB harness); We recommend taping fuse #22 or #11 of interior fuse box allows module to turn on/off with radio PWR button (instead of ignition switch) which is located under passenger toe board next to BMC (See Fig.
  • Page 4 Installation 2 (To 10-pin plug with PXHGM2 harness) Connects module at vehicles rear (trunk/hatch) and applies only if vehicle has a 10-pin plug (See Fig. 6) or with optional 12-disc CD changer. CD changer (if present) must be disconnected. To retain use of the changer, purchase our A2D-C5 instead.
  • Page 5 Alternate 12V Acc. supply: We recommend taping fuse #22 or #11 of interior fuse box located under passenger seat behind toe board (See Fig. 11). circuit seen in Fig. 10 may be use for this purpose. The add-a-fuse mini-tap Fig. 8 10-pin connector 3.
  • Page 6 If smartphone volume is set too high, it can result in “clipping” (module will un-pair and reconnect intermittently). To resolve, lower volume on audio device. (See FAQ # 14) The BLU-C5 with PXHGM2 installation will continue to turn on/off with ignition key.

  • Page 7: Optional Equipment

    Optional equipment: Operation: The following three options are not required for operation; however, these do enhance user experience. Use wireless remote to perform the following functions on any iOS7.0 and higher To add either to order, tick option on product page or click link or Android 4.4 and higher.
  • Page 8 USB charging kit Installing optional USB charging kit: (not for USB sticks/thumb drives) Optional USB kit provides up to 3 Amps of charging power -- which is more A. Flush to dash/panel requires drilling a ¾” hole in the dash than enough juice to charge most energy hungry devices.

  • Page 9: Bracket Mount

    Bracket Mount (No drilling) Locate a flat surface at location of choice within 3.2 ft. of radio to mount USB support bracket (See Fig. 18) Use tape backing or screws to secure bracket to surface Fig. 15 Fig. 18 Snap USB head (See Fig. 16) to hole in panel until flush with surface mounting bracket (See Fig.

  • Page 10: Test Operation

    Controls from radio buttons 5. If correct operation is confirmed go ahead and reinstall the Radio. Table 2 (Music streaming only) Modules A2D-C5 BLU-C5 Retains changer playback Requires working CD changer Audio input jack (Aux in) YES² USB charging port...

  • Page 11: Frequent Asked Questions

    2. It is possible to install the BLU-C5 at radio instead of trunk/hatch? with radio PWR button which means module will continue playing even after ignition has been turned off. Modules installed to 10-pin plug in trunk/hatch YES;...
  • Page 12 For additional questions, email support@discountcarstereo.com © 1995-Apr-20 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
