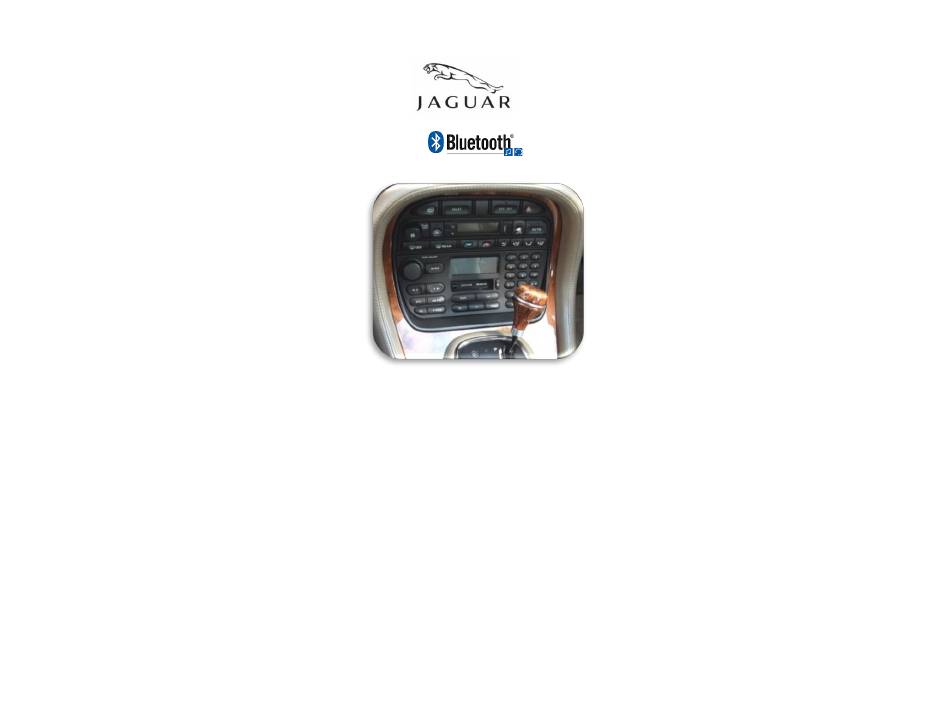

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 BT45-JAG QUICK START BLUETOOTH INSTALLATION GUIDE FOR SELECT JAGUAR XK AND XJ WITH CD CHANGER 1998-03 XJ (X308) and 1997*-06 XK (X100) Created December 21, 2015 Revised: June 17, 2021...
- Page 2 Safety comes first when you’re on the road, so having an intuitive and easy to Fig. 1 use Bluetooth kit is essential to reducing driver distraction. The BT45-JAG kit is compatible with virtually all Bluetooth phones, and sounds great whether you are Locate CD changer short (6 inch) pigtail cable (it’s the only cable on...
- Page 3 Once disconnected, cables should resemble Fig. 2. Female connector (right) – leads to cd changer, male plug (left) – leads to amplifier (premium audio system) or radio (standard audio system) Fig. 3b Return cables to holding tab Connect supplied 3.5mm audio cable (See Fig. 4) to audio adapter Fig.
- Page 4 Installing (routing) audio cable (X308) Use pry tool or similar to open gap between window pillar and rear deck as seen in Fig. 5. From trunk, fish audio cable jack (See Fig. 4) through and into vehicle cabin. (See Fig. 6) Fig.
-
Page 5: Microphone Installation
Module wiring diagram Microphone Installation: Note: If vehicle has factory mic in overhead console (See Fig. 12) you may use it instead of mic included with kit. To use factory mic, simply connect 3.5mm plug from installation (See Fig. 15) to module “MIC” input jack (See Fig. 11). Fig. - Page 6 Fig. 14 Fig. 18 Fig. 19 (10-pin Female plug) (18-pin Male connector) WARNING!! Prior to ordering, it is vital to check factory phone plug/connector in your vehicle. Here are some possibilities: 1998-03 XJ (X308) and 1997*-99 XK (X100) may have a 14-pin male connector (See Fig.
-
Page 7: Wireless Remote Control
Wireless Remote Control This is a one-time process that will not have to be repeated. After initial pairing, Twist remote control bottom cap to open the BT45-JAG will automatically reconnect with paired phone upon entering Remove battery’s protective clear film vehicle. -
Page 8: Remote Control Operation
Remote Control Operation Media Streaming Operation If 2 phones have been paired, music streaming is possible from either one: Set the radio to “CD/Bluetooth” mode Launch preferred music app Use wireless remote control to adjust volume, change tracks etc. To switch between phones, simply pause first phone and press play on second and vice versa Answering and ending calls. -
Page 9: Feature Comparison
Separate Microphone ✓ The BT45-JAG does not require radio removal. Requires CD Changer ✓ ✓ ✓ Which model/year Jaguars will the BT45-JAG work and where do I Voice Activation ✓ ✓ ✓ connect the AUX adapter? Requires factory phone Plug 1998-03 XJ (X308) (To CD changer plug in trunk/hatch) ✓... - Page 10 Email support@discountcarstereo.com © 1995-Jun-21 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
