Coyote Stainless Steel Gas Grill
For Liquid Propane and Natural Gas Models
Conforms to ANSI
STD Z21.58a-2008
Certificated to CSA
STD 1.6a-2008
4006980
IMPORTANT: Read the lighting instruction on Page 15 before first time use!
To installer or person assembling grill: Leave this manual with grill for future reference.
To consumer: Keep this manual for future reference.
COYOTE OUTDOOR LIVING, INC.
www.coyoteoutdoor.com
Use & Care Manual

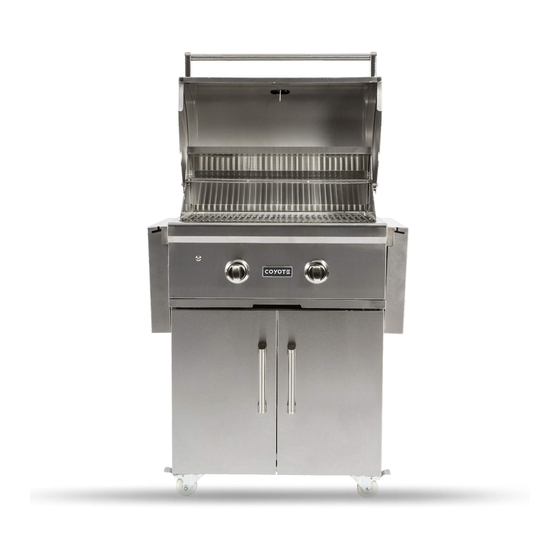

Coyote 2-Burner Grill
Built-in & Free-Standing Model
CCX2LP / CCX2NG
CCX2LP-FS / CCX2NG-FS
PUT SERIES NO. LABEL HERE
For Outdoor Use Only
Advertisement
Table of Contents
Related Manuals for Coyote CCX2LP
Summary of Contents for Coyote CCX2LP
- Page 1 Coyote Stainless Steel Gas Grill Use & Care Manual For Liquid Propane and Natural Gas Models Coyote 2-Burner Grill Built-in & Free-Standing Model CCX2LP / CCX2NG CCX2LP-FS / CCX2NG-FS Conforms to ANSI For Outdoor Use Only STD Z21.58a-2008 Certificated to CSA STD 1.6a-2008...
- Page 2 Welcome & Congratulations Congratulations on your purchase of a new grill! We are very proud of our product and we are completely committed to providing you with the best service possible. Your satisfaction is our #1 priority. Please read this manual carefully to understand all the instructions about how to install, operate and maintain for optimum performance and longevity.
-
Page 3: Table Of Contents
Table of Contents Safety Instructions…..... 2 WARNING • Locating the Grill ......4 Gas Requirements ......7 IF YOU SMELL GAS: Using Your Burners & Grilling..13 1. Shut off gas to the appliance. Lighting Your Grill……………...…16 2. Extinguish any open flame. Operation and Features………….18 3. -
Page 4: Safety Instructions
Safety Instructions WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment. General Safety Instructions For Household Outdoor Use Only – DO NOT use indoors or in any type of enclosed area such as a garage, shed or breezeway. - Page 5 17. Keep gas supply lines as short as possible. 18. Never move the grill when hot. 19. DO NOT use while under the influence of drugs or alcohol. 20. DO NOT store a spare gas cylinder under or near your grill. 21.
-
Page 6: Locating The Grill
Ventilation for a gas grill is absolutely mandatory to ensure that your grill performs as intended and • to ensure the safety of you and your family. The vents that are required to honor a Coyote warranty, not only ensure that any heat that is trapped inside your grill from environmental factors (such as wind) escape but they also allow any gas that has leaked from a tank or connection, to escape before a buildup of such gas can occur and possibly ignite. - Page 7 Nature and the effects she can have on your outdoor cooking equipment. Coyote Wind Guards: If you do run into a situation where you will have wind coming into the back of the unit, Coyote does sell "Wind Guards" that help keep your grilll from overheating due to no exhaust occuring out the back of the grill.
- Page 8 Cut out Dimensions Figure A Electrical Product Total BTU Model Cutout Dimensions Overall Dimensions Outlets Description Ratings Needed (110V) Height Width Depth Height Width Depth Canopy Lights CCX2 28" Grill 11" 25" 20.5" 22.5" 28" 23.75" 40,000 40,000 Qty 1 ** Each burner generates 20,000 BTU's.
-
Page 9: Gas Requirements
Gas Requirements NOTE: Always have a qualified service technician perform difficult conversions or modifications. WARNING: Never attach an unregulated gas line to the appliance. Connection to an unregulated gas line can cause excessive heat or fire. IMPORTANT: Before connecting grill to gas source, make sure BBQ Grill control knobs are in the “OFF”... - Page 10 The L.P. cylinder must have a shut-off valve (see picture) terminating in a Type 1 L.P. A Type 1 compatible cylinder with a Type 1 cylinder valve has a back-check valve which does not permit gas flow, until a positive seal has been obtained.
- Page 11 Pre-Operation Leak Testing DANGER 3. Do not insert any tool into the valve outlet or safety relief valve. You may damage the valve and cause a leak. Leaking propane may result in explosion, fire, severe personal injury, or death. 3. If a leak is detected at any time or you cannot stop a gas leak, immediately close pipeline valve and call LP gas supplier or you fire department! 3.
-
Page 12: Lp Tank Filling
LP grill from Coyote will meet your needs, regardless of the size. Any appliance can be installed if installed properly! That is the Coyote way! - Page 13 High Elevation Installation and Use Coyote Grills are designed to operate most efficiently at 0-2000 feet above sea level. From 2000-4000 feet above sea level you will not notice any substantial decrease in your heat, although more gas is combusting within the burners due to less oxygen.
- Page 14 Gas Conversions – Natural Gas and Propane Coyote grills are able to be converted but you must obtain the correct conversion kit and we always recommend that any gas appliance conversion should always be performed by a Licensed Plumber or a certified Installer.
-
Page 15: Using Your Burners & Grilling
Using Your Burners and Grilling Safely Your grill is designed to reach a temperature that you set by adjusting a valve that in turns adjusts the amount of gas that goes through each burner. This Valve is located behind your knob and is the key to your heat and fuel consumption. - Page 16 There are many reasons that can cause poor flames and heat but none are more serious than a • gas leak, so always pay attention for the odor of gas (NG or LP) but do not also forget to clean your burners! For Direct Cooking you simply cook your food over a direct flame that is hot and quick to cook but is also the quickest way to burn your food.
- Page 17 Instruction for Connecting the Transformer 1. CCX2LP/NG (Built-In) Transformer for Interior Lights Your transformer will connect on the left side of your grill (looking at it from the front) and operates the lights inside your grill. Follow the pictures and insert the white male plug into the white female socket, on the left side of your grill and then plug the 3-prong cord into a standard 110v outlet.
-
Page 18: Lighting Your Grill
HOW TO CHANGE THE LIGHT BULBS 1. Remove the screw holding the bulb lens and light assembly to the frame. 2. Pull out the entire light assembly from the frame. 3. Loosen the screws that are holding the wires in the light assembly. 4. -
Page 19: Lighting Instructions
5 minutes. 5. If at this point the grill will still not ignite, you can try the manual lighting process below with a long stem lighter and you can also contact Coyote Customer Service for further assistance to troubleshoot your grill. -
Page 20: Operation And Features
Operations and Features When you first ignite your grill burn the grill to get rid of any odors or debris that may be left over from manufacturing and transit. This is done by operating your grill at the “HIGH” setting with the hood closed for no more than 5 minutes. -
Page 21: Care & Maintenance
out. Use caution when opening the hood as sudden flare-ups may occur. To Minimize Flare-ups: Trim excess fat from meats prior to cooking. Cook meats with high fat contents (chicken or pork) on Low settings or indirectly. Ensure that your grill is on level ground and the grease is allowed to evacuate the grill through the drain hole. - Page 22 CCX2LP/NG (Built-In) Main Burners: 1. Remove your grill from the island once the gas line and transformer are disconnected. 2. At the back of the grill you will find two cotter pins holding the burner in place (1st picture shown below).
- Page 23 Stainless Steel Care and Maintenance It is a common misconception that stainless steel will maintain its original factory shine with little help from the consumer. Unfortunately, this is not true. Stainless steel will not stain, discolor, corrode or rust as fast as other types of steel, but it is not fully stain or weather proof. If it is not properly maintained, all grades of stainless steel can face surface discoloration, corrosion and eventually rust.
- Page 24 Ways to Avoid Rust on your Grill: 1) Always purchase a Coyote Grill cover for your unit. This will ensure that your cover is correct fit and breathable, while providing the protection needed to keep all other contaminants off of the surface.
- Page 25 MAINTENANCE GUIDELINES 1. Keep outdoor cooking gas appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids. 2. Do not obstruct the flow of combustion and ventilation air. 3. Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris. 4.
-
Page 26: Troubleshooting Your Grill
Troubleshooting Your Grill GENERAL TROUBLE SHOOTING You should inspect the burners at least once a year or immediately if any of the following conditions occur: • The smell of gas. • Flames appearing mostly yellow. (Some yellow at the tips is OK) •... - Page 27 have a 1/8” to ¼” gap between the electrode and contact point. • Check for a loose wire connection at the electrode box. • Check to see if debris is blocking the electrodes. • If the igniter is not working, can you light the grill with a lighter? Flare-ups •...
-
Page 28: Limited Warranty
Limited Warranty LIMITED WARRANTY Coyote Outdoor warrants to the original purchaser at the original site of delivery with proof of purchase of each Outdoor Gas grill/Side burner that when subject to normal residential use, it is free from defects in workmanship and materials for the periods specified below. This warranty excludes grills used in rental and commercial applications. - Page 29 does not cover scratches, dents, corrosion or discoloration caused by weather, heat, abrasive and chemical cleaners, pool or spa chemicals, and/or any tools used in the assembly or installation of this unit. This warranty does not cover paint loss, surface rust, corrosion or stainless steel discoloration which is considered normal wear and tear.
-
Page 30: Parts Listings
Parts List Coyote CCX2 Cart... - Page 31 Coyote CCX2 LP/NG...
- Page 32 CCX2 (LP & NG) Parts Listing Cart Grill Picture Part Picture Part Description Number Description Number Side Shelf Holder CCX20001 Hood Handle CCX20017 Top Rear Panel CCX20002 Lower Hood CCX20018 Side Plate CCX20003 Warming Rack CCX20019 Partition Panel CCX20004 Warming Rack Bracket CCX20020 Top Rail CCX20005...
