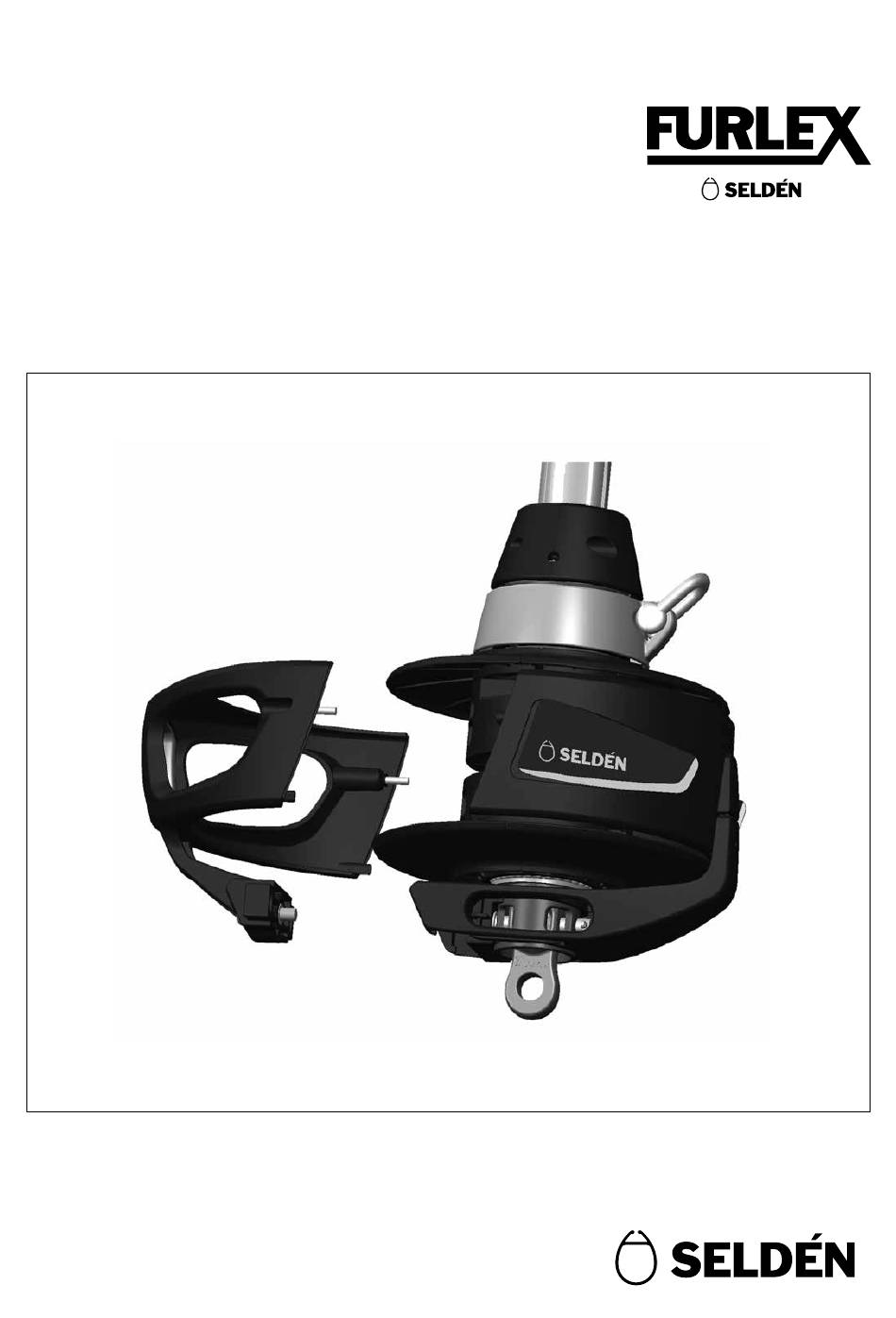

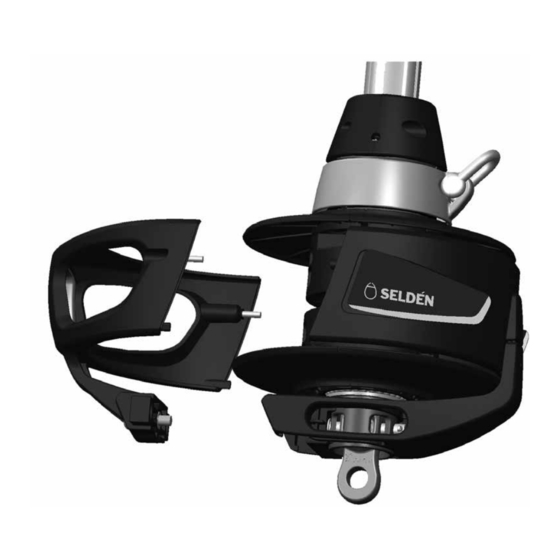

597-181-E
2016-03-03
404S
Manual and Spare parts list
Furlex
404S
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Furlex 404S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Selden Furlex 404S

Summary of Contents for Selden Furlex 404S

  • Page 1 597-181-E 2016-03-03 404S Manual and Spare parts list Furlex 404S...

  • Page 2: Table Of Contents

    Contents Page 1 Introduction 1.1. Key features 1.2. What’s included? 1.3. Main dimensions 1.4. Safety precautions 1.5. Sail information 2 Assembly preparations 2.1. Tools 2.2. Mast and deck attachment 2.3. Wire length calculation 2.4. Top extrusion length calculation 3 Assembly 3.1.

  • Page 3: Introduction

    1 Introduction Congratulations on the purchase of your new Furlex jib furling system. Furlex jib furlers have been engineered and manufactured by Seldén Mast since 1983. The system has been continuously developed over the years and we are now launching the fourth generation Furlex, the most sophisticated single line jib furling system so far. 1.1 Key features Maximized luff length The luff extrusion foil shape remains unchanged all the way down the furling unit.

  • Page 4: What's Included

    1.2 What’s included? Basic pack / Extended pack The Furlex system consists of a basic pack with drum unit, halyard swivel, sail feeder, bearing halves, top guard and furling rope. The Extended pack also includes halyard leads, stanchion blocks and pre-feeder pack - accessories that will make your system work even better on your boat.

  • Page 5: Safety Precautions

    1.4 Safety precautions The information in this manual must be followed carefully to avoid damage to the system and to aviod the risk of personal injury. The warranty is only valid if the system is assembled and operated according to this manual. Please read the entire manual before assembly! 15-20°...

  • Page 6: Sail Information

    1.5 Sail information Your sailmaker has all the necessary sailmaker information through the Seldén Sailmakers Guide. The Sailmakers Guide can be downloaded from www.seldenmast.com Note that if you want to use an existing sail, it will need some modifications:. • The luff length needs to be adjusted.

  • Page 7: Assembly Preparations

    Assembly preparations 2.1. Tools Before starting with the assembly, make sure you have the following tools available: • Socket screw driver • Hack saw • Torx bits • Measuring tape • Knife • Hammer • Pencil If Sta-lok is to be fitted you will also need: •...

  • Page 8: Wire Length Calculation

    2.3 Wire length calculation If a Sta-lok terminal (with or without rigging screw) is included, the wire is supplied over-length. The wire has a swaged eye terminal on one end while the other end is open (= without terminal). If your Furlex is supplied with a fixed-length forestay, with a swaged eye on one end and a swaged stud in the other end, skip this part and go directly to 2.4.

  • Page 9: Top Extrusion Length Calculation

    2.4 Top extrusions - length calculation The Furlex luff extrusion consists of a number of shorter pieces. Starting from the bottom there is a 1000 mm (39 3/8”) luff extrusion connected to the drum unit and extending up to the sail feeder. Then, from the sail feeder and up there are a number of full length luff extrusions (L=2400 mm) and finally there is a top extrusion that has to be cut to length to suite the actual forestay length.
  • Page 10 To find out the cutting length of the top extrusion (D) and the length of the top distance tube (E), start with the length of the forestay wire (WL) that was calculated in table 1. Then follow the steps in table 2 below. On fixed length forestays (incl. rod stays), verify WL by measuring the stay length from centre of eye to end of stud (wire) or end of rod head.

  • Page 11: Assembly 3.1. Luff Assembly

    Assembly At this point the top luff section and the top distance tube should be cut to length according to table 2. 3.1 Luff assembly Luff assembly should be carried out on a clean, flat surface. Make sure there is enough space for the entire forestay length to be stretched out.
  • Page 12 9. Repeat for the remaining 2400 mm luff extrusions. Use short joining sleeves only. (94 1/2”) 10. Fit the long joining sleeve onto the wire with two-hole end downwards. Then fit the 1000 mm (39 3/8”) luff extrusion with two-hole end downwards. Fit the long connecting plate to the 1000 mm (39 3/8”) extrusion and push the joining sleeve upwards to hold it in position.

  • Page 13: Fitting Sta-Lok Wire Terminal

    3.2 Fitting Sta-lok eye terminal Note! For systems with swaged stud terminal, skip this part and go directly to 3.3. Before cutting the wire, measure the wire from the centre of the hole in the top swaged eye terminal. Mark the measurement WL carefully on the wire using a marker pen.
  • Page 14 Space the outer strands of the wire evenly around the wedge and bring down the socket so that the strands are held in place. Hold an adjustable spanner between the 1000 mm (39 3/8”) extrusion and the socket. Tapping the core of the wire, locate it firmly in the socket. Check that the core of the wire protrudes approx.

  • Page 15: Fitting Eye Terminal To Swaged Stud

    3.3 Fitting eye terminal to swaged stud (Stud/Eye) 1. Remove the toggle from the eye fitting. Fig. 3.3.a 2. Screw the eye terminal part onto the stud terminal until the holes in stud and eye align. Fig. 3.3.b 3. Fit the spirol spring pin using a hammer to permanently lock the terminal. Fig.
  • Page 16 3.5 Drum unit assembly 1. Unscrew the two screws holding the adaptor halves together. Take care not to loose the screws. Fig. 3.5.a 2. Remove the clevis pin that goes through the tube shaft in the drum unit. Fig. 3.5.b 3.

  • Page 17: Drum Unit Assembly

    4. Turn the drum unit so that the small knob in the upper hub is oriented as shown in relation to the luff extrusion. The knob should be pointing in the same direction as the foil to fit correctly into the forward adaptor half.

  • Page 18: Installation

    4 Installation Installation of the Furlex system on the boat requires a minimum of two persons, however it is recommended to be at least three persons to do the job more easily. 4.1 Mast attachment The guiding principle for fitting the Furlex to the mast is that the forestay connection should allow sufficient articulation in all directions.

  • Page 19: Deck Attachment

    4.2 Deck attachment The lower end of the Furlex-system comes with a fork toggle as Fig. 4.2 standard. This can normally be attached directly to the boat’s forestay fitting at the stemhead. Check that the drum unit does not interfere with the pulpit, navigation lights or other deck fittings. If the boat is fitted with a bow anchor, it may be necessary to permanently raise the drum unit to give the crew sufficient space for anchor work.

  • Page 20: Installation On A Stepped Mast

    4.3 Installation on a stepped mast 1. Slacken the backstay as much as possible, but do not remove it. 2. Pull the mast forward using a genoa halyard or a spinnaker halyard. Secure the halyard to a strong deck fitting using a screw pin shackle or tie the halyard to a strong deck fitting. For safety reasons, do not use snap shackles.
  • Page 21 4.5.2 Fitting the furling line If the sail’s ultraviolet (UV) protection is fitted on the starboard side of the sail, the furling line should exit on the port side of the line drum. If the UV protection is fitted on the port side, the furling line should exit on the starboard side of the line drum.

  • Page 22: Adjusting The Forestay Length

    4.6 Adjusting the forestay length The Furlex system may be supplied with or without an integrated rigging screw. 4.6.1 Furlex with rigging screw With an integral rigging screw, the forestay length can be easily adjusted. Tensioning the forestay however, is done by tensioning the cap shrouds and/or the backstay, and not by tensioning the forestay rigging screw.

  • Page 23: Checklist

    4.6.2 Furlex without rigging screw On Furlex-systems without an integrated rigging screw, the forestay length can be increased by fitting extra toggles. These can be fitted at the upper or lower end of the forestay wire. To shorten the Furlex-system, the forestay wire and the luff extrusion must be cut. See chapter ”Dismantling”...

  • Page 24: Operation

    5 Operation Before hoisting the sail, make sure to tension backstay and/or runners so that the forestay is fully tensioned for hard, close-reach sailing. If the sail should be hoisted and firmly tensioned before the forestay is fully tensioned, excess strain is put on the halyard, the halyard swivel and the sail when the forestay is tensioned.

  • Page 25: Unfurling The Sail

    5.2 Unfurling the sail 1. Release the furling line and the windward genoa sheet. Allow these to run freely while the sail is being unfurled. 2. For a controlled unfurling manoeuvre, it is best to place a turn of the furling line around a winch or a half- turn around a cleat.

  • Page 26: Reefing

    5.4 Reefing Furlex is provided with a tack attachment which rotates in relation to the luff extrusion. When furling and simultaneously applying a limited countertension in the sheet, the luff extrusion makes approximately one revolution before the tack fitting starts rotating as well. The part of the sail with the biggest draft will in this way be flattened.

  • Page 27: Inspection

    6 Maintenance 6.1 Inspection To ensure that the system rotates easily and functions satisfactorily year after year, regular inspection and maintenance should be carried out once a year. Maintenance is simple, even with the Furlex rigged on the boat. Inspection points: •...

  • Page 28: Dismantling

    6.4 Dismantling Never take the halyard swivel or the drum unit apart as you will find it difficult to re-assemble them correctly. (The ball bearings are loose and difficult to refit!). Contact your Furlex dealer if service is required. 6.4.1 Sail feeder Fig.
  • Page 29 6.4.3 Brims Loosen the two screws and pull the brims off the drum unit. Fig. 6.4.3.a 6.4.4 Lower bearing unit 1. Unscrew the two screws holding the adaptor halves together. Take care not to loose the screws. 2. Remove the clevis pin that goes through the tube shaft in the drum unit. 3.
  • Page 30 6.4.5 Sta-lok terminal 1. To remove the Sta-lok eye, heat up the threads to release the locking adhesive. 2. Remove the terminal part (or rigging screw) from the socket. 3. Remove the former from the bottom of the terminal part. Fig.
  • Page 31 6.4.8 Halyard swivel The halyard swivel is removed from the system by sliding it downwards in conjunction with dismantling the sail feeder and removing the drum unit. Alternatively, the halyard swivel can be slid up after the top guard has been removed.

  • Page 32: Troubleshooting

    6.5 Troubleshooting Problem Probable cause Action 6.5.1 ”The sail will not unfurl or will only • The jib halyard is wrapped around the • Ease the halyard slightly and try to partly unfurl.” luff extrusion. reverse the system. • Another halyard is wrapped around the •...
  • Page 33 6.5.5 ”The sail is hard to hoist” • The luff tape is too thick. • Return the sail to the sailmaker and refer to the sailmaker information in this manual. • The sail is caught on something or is • Arrange the sail better on the foredeck. not sufficiently loose on the foredeck.

  • Page 35: Spares And Accessories

    6.6 Spares & Accessories Serie 404S Forestay wire size Description Dimension Ø12 mm Ø14 mm Adapter assembly incl. screws 549-404-01R 549-404-01R Top guard incl. screws 549-425-01R 549-425-01R Sail feeder incl. screws 549-423-01R 549-423-01R Lower bearing plug 549-438-01R 549-438-01R halves Drum unit incl.
  • Page 36 Serie 404S Forestay wire size Description Dimension Ø12 mm Ø14 mm Furlex grease ~100g 312-501 312-501 Furling line Ø12 L=40000 612-036-01 612-036-01 Stanchion block For Ø25/30 538-210-02R 538-210-02R Pre-feeder pack 505-538-01R 505-538-01R Locking adhesive 312-305 312-305 Soft shackle 8 (5 mm) 614-523R 614-523R Connecting plate kit...
  • Page 37 404S, Complete luff extrusion pack, wire Ø12-14 Including luff extrusions, joining sleeves, distance tubes and connecting plates for forestay lengths according to table. Description Dimension Art. No. Luff extrusion pack FL=15300 549-432-02 404S, Single luff extrusion pack, wire Ø12-14 Including 1 pcs luff extrusion, 1 pcs joining sleeve, 1 pcs distance tube and 1 pcs connecting plate Description Art.

  • Page 38: Toggles & Links

    6.7 Toggles & links Forestay Dimensions Toggle type Ø 12 Ø 14 Eye/fork toggle Article No. 174-134-01 174-135-01 Length (H) Ø Eye (D1) Ø Clevis pin (D2) Fork width (W2) Fork/Fork toggle Article No. 517-052-02 517-053-02 Length (H) Ø Clevis pin (D1) Fork width (W1) 20.5 20.5...

  • Page 39: Warranty Conditions

    7 Warranty Seldén Mast AB guarantees the Furlex-system for 2 years. The guarantee covers faults arising from defective design, materials or workmanship. The guarantee is only valid if the Furlex-system is assembled, operated and maintained in accordance with this manual and is not subjected to loads in excess of those indicated in the brochure and instructions. Complete shipment and warranty conditions are to be found on Seldéns website www.seldenmast.com.
  • Page 40 DINGHIESKEELBOATSYACHTS Seldén Mast AB, Sweden The Seldén Group is the world’s leading manu- Tel +46 (0)31 69 69 00 Fax +46 (0)31 29 71 37 facturer of mast and rigging systems in carbon and e-mail info@seldenmast.com aluminium for dinghies, keelboats and yachts. Seldén Mast Limited, UK Tel +44 (0) 1329 504000 Our well known brands are Seldén and Furlex.
