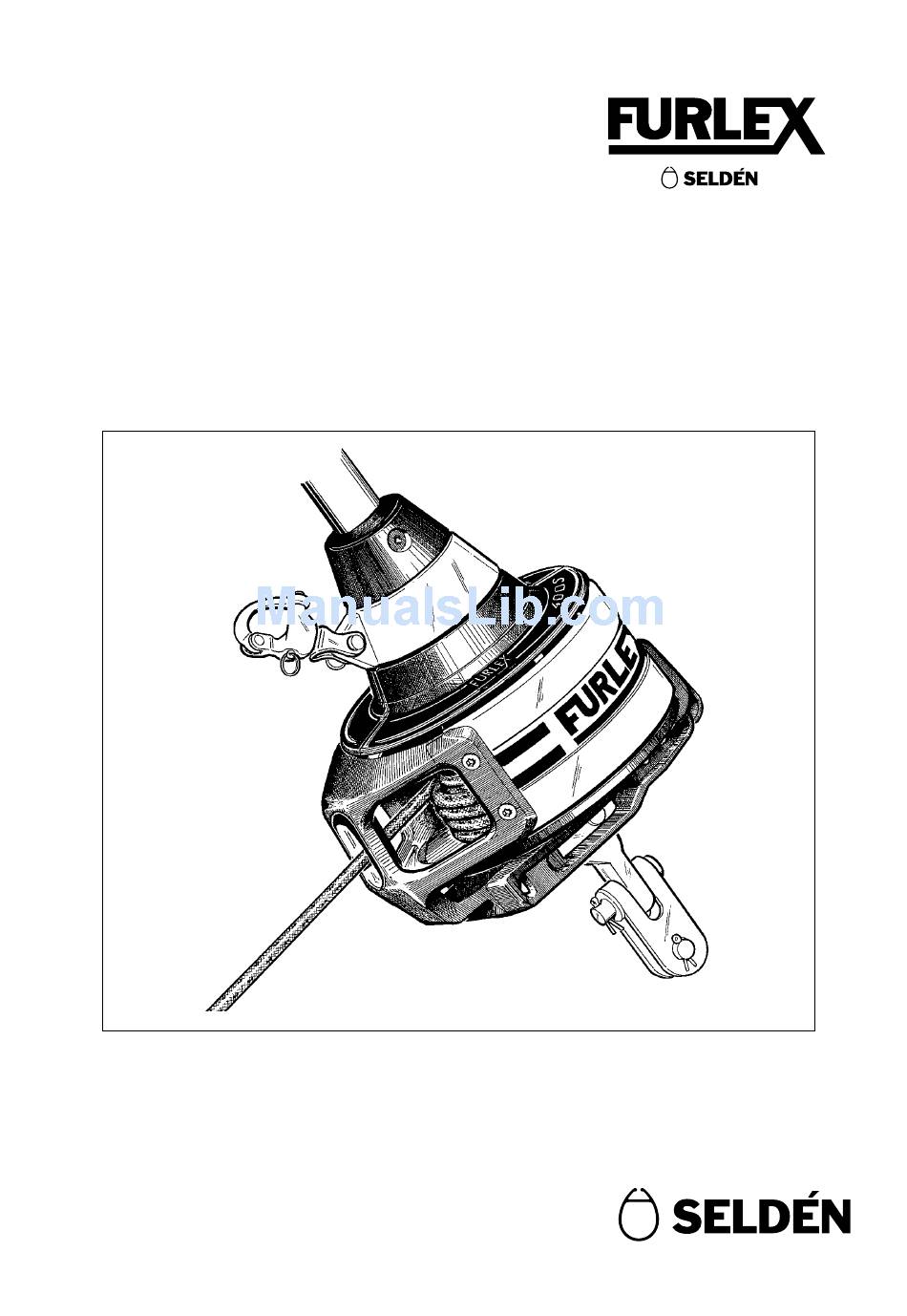

- Page 1 595-116-E 2010-03-08 400 S & 500 S Manual for assembly and operation Furlex 400 S & 500 S...
-
Page 2: Introduction
All safety-related information is indicated by the following symbol: The manual covers two different Furlex sizes, 400 S and 500 S. The Furlex 400 S is designed for use with a 12 or 14 mm forestay, while the 500 S system is designed for a 16 mm forestay and has a stronger luff extrusion and halyard swivel. -
Page 3: Table Of Contents
Fitting the line drum and line guide 15.2 Lubricating the halyard swivel 5 Halyard routing 15.3 Cleaning the Furlex 5.1.1 Halyard leads (only Furlex 400 S) 15.4 Storage 5.1.2 Halyard routing – Furlex 500 S 16 Rigging Halyard sheave box 16.1... -
Page 4: Product Information
The joining … sleeves of the Furlex 400 S are insulated internally to prevent wear and corrosion. The clearance between the forestay and the joining sleeve on the 500 S is sufficiently large to be able to omit the insulation. - Page 5 Forestay eye terminal Tack ring Top guard Adapter Halyard swivel Terminal part or Snap shackle/D-shackle rigging screw Luff extrusion Fork / fork toggle Distance tube Line drum half Joining sleeve Line guard housing Long joining sleeve Line guard Sail feeder Line guard bracket Sail feeder connector Line guide fitting...
-
Page 6: Assembly
ASSEMBLY 2 Checklist 2.1 Furlex box Forestay wire with top bearing Wire terminal or Furlex rigging screw. (Depends on which type ordered.) 400 S/Ø12 Rigging screw adapter Halyard swivel with head shackle Lower bearing assembly with tack shackle Two line drum halves Line guide fitting... - Page 7 Line guard housing Line guide locking block Furling line 400 S: 2 halyard leads 508-128 with insulator sheets incl. 6 screws Drill bit Ø 5,3 mm (7/32”) 500 S: Halyard leads are not included. A halyard sheave box must be used for this model. See Chap.
-
Page 8: Foil Pack
2.2 Foil pack One 1000 mm (39 3/8”) luff extrusion with long joining sleeve + bearing plug with bushes 400 S: One 1700 mm (67”) luff extrusion with distance tube. 500 S: One 2000 mm (78 3/4”) luff extrusion with distance tube. 400 S: 2400 mm (94 1/2”) luff extrusions with distance tube + joining sleeve (number dependent on length ordered.) -
Page 9: Assembly Preparations
3 Assembly preparations 3.1 Forestay attachment - guiding principle The guiding principle is that the forestay connections should allow sufficient articulation in all directions. In most cases a toggle should be fitted between the Furlex stay and the forestay attachments. 3.2 Mast attachment Some Seldén forestay attachment options are shown below, illustrating the rules and exceptions. -
Page 10: Dimensions Of Lower Bearing Assembly
3.3.1 Dimensions of lower bearing assembly (mm) 3.3.2 Dimensions of top eye terminal Fig. 3.3.a Fig. 3.3.b Furlex Serie Wire Dim. Ø 12 (15/32”) 20 (25/32”) 15 (19/32”) 400 S Ø 250 (9 7/8”) 220 (8 5/8”) 140 (5 1/2”) Ø... -
Page 11: Table Of Measurements For Toggles
3.3.3 Table of measurements for toggles (Toggles available from your Furlex dealer) Forestay Dimensions Toggle type Ø 12 Ø 14 Ø 16 Article no. 174-125-01 174-133-01 174-126-01 Eye / Fork-toggle Length (H) 95 (3 3/4”) 95 (3 3/4”) 120 (4 3/4”) Ø... -
Page 12: Assembly Below Deck
3.4 Assembly below deck The lower bearing assembly can be fitted below deck inside an anchor well. The advantage is that the sail’s luff length is maximized and the access around the forestay is improved. The disadvantage is a more complicated route for the furling line, increasing furling resistance. The diagrams below illustrate various methods of installation. -
Page 13: Calculating The Length Of The Forestay Wire
Furlex fitted above deck, but with the forestay fitting in the anchor well. Use a Furlex extension link (not 500 S). For a larger gap, (or for 500 S,) use a custom made stainless steel bar or rod stay. See specifications on page 11. Short wire pendants are not recommended as forestay forces may not be distributed evenly, and wire will not resist the Fig. -
Page 14: Calculating The Length Of The Luff Extrusion
3.6 Calculating the length of the luff extrusion 1. Insert the length of the new forestay wire (WL) as calculated in ”Table 1” into ”Table 2”, in the row marked WL. 2. Calculate the number of full length extrusions and the length of the top extrusion. Example Your 3.6.1... - Page 15 Fig.3.5.a...
-
Page 16: Assembly Of The Furlex-System
4 Assembly of the Furlex-system 4.1 Assembly of the luff section The assembly procedure for the 400 S luff section is described below. Assembly of the 500 S luff section differs from the 400 S in the following respects: The sail feeder of the 500 S is not a separate component, as shown in fig. 4.1.b, but is cut into the 1000 mm (39 3/8”) luff extrusion. - Page 17 Fig. 4.1.e Fit a joining sleeve into the next 2400 mm (94 1/2”) extrusion together with a connecting plate. Connect this to the lower extrusions. Using a spare joining sleeve, push in the distance tube from the top until the lower joining sleeve touches the distance tube below the join.
-
Page 18: Fitting The Wire Terminal (Or Rigging Screw)
4.2 Fitting the wire terminal (or rigging screw) Stretch the Furlex wire out by hand on a flat surface. Be careful when you open the wire coil as it may uncoil quickly. Note: Be careful when you open the wire coil! 2. - Page 19 Fig. 4.2.c Slide the wedge over the core (7 strands) of the wire . The core of the wire should protrude approx. 3 mm (1/8”) from the wedge. Remove the adhesive tape from the top eye terminal. Space the outer strands of the wire evenly around the wedge and bring down the socket so that the strands are held in place.
- Page 20 16. Check the length FL of the stay acc. ”Table 1” (3.5.1) & fig. 3.5.a. If the Furlex rigging screw is fitted, it should be 50% extended. (”Rigging screw adjustment”, see table 14.1.1). 18.1 Furlex rigging screw 400 S wire Ø 14 and 500 S wire Ø...
-
Page 21: Fitting The Line Drum And Line Guide
4.3 Fitting the line drum and line guide The line drum consists of two halves. These are easier to fit after the Furlex is fitted to the boat. Feed the furling line through the hole in the line guide fitting and then through the hole in one of Fig. - Page 22 Push the locking block in until it rests against the lower bearing assembly. Fasten the line Fig. 4.3.e guide fitting in the line guard and bring this up into the assembly position. Tighten the screws in the stainless steel housing. Fig.
-
Page 23: Halyard Routing
Fig. 5.b Fig. 5.a 5.1.1 Halyard leads (only Furlex 400 S) To avoid halyard wrap, 2 halyard leads are included in the Furlex kit. These are easy to fit and are suitable for all makes of mast. When sailing, movement occurs between the wire halyard and the halyard lead. -
Page 24: Halyard Sheave Box
5.2 Halyard sheave box A sheave box can also be fitted to the mast to meet the 5–10° requirement. The sheave box will not damage the halyard, nor is it worn by the wire. Installation is more complicated but the box will eliminate the need to replace the halyard leads in future as above. - Page 25 For the halyard routing to work properly, the halyard swivel must be in the correct position to achieve the required angle of 5–10°. If the sail does not have the required luff length, this needs to be adjusted. (See ”The Sail”, 7.1.) 0 - 5°...
-
Page 26: Furling Line Arrangement
6 Furling line arrangement 6.1 Functional description As the sail unfurls, the furling line is wound onto the line drum. It is centred on the line drum through the hole in the line guide fitting, which has a stainless steel bush to reduce friction and wear on the line. -
Page 27: Routing Of The Furling Line
6.3 Routing of the furling line The line should be led aft to the cockpit via the lead blocks included in the Furlex package. The lead blocks are mounted on stanchions and the pulpit. See fig. 6.4.a–6.4.f for how to fit the leadblock. The lead blocks are not suitable for mounting on angled stanchions or pulpits. -
Page 28: Fitting The Stanchion Blocks
6.4 400 S: Fitting the stanchion blocks The Furlex kit contains 6 fixed stanchion blocks for fitting on a Ø 25-mm (63/64”) stanchion. The fixed blocks can be fitted on a Ø 30 mm (1 3/16”) stanchions, but the standard screws must be replaced by M6-25 mm screws. -
Page 29: The Sail
7 The Sail 7.1 Adapting the sail to the Furlex-system To fit the Furlex-system , an existing sail may need a number of modifications. The maximum luff length is calculated as shown in Table 7.1.1 and fig. 7.1.b. FL -(F+E) (existing forestay length as per Table 3.5.1 –... -
Page 30: Table Of Sail Measurements
7.1.1 Table of sail measurements 400 S 500 S Furlex type Head deduction F 620 (24 7/16”) 620 (24 7/16”) Tack deduction E 535 (21”) 535 (21”) (Any additional toggle or link must be added to E) Cutback CB 95 (3 3/4”) 95 (3 3/4”) Ø... -
Page 31: Determining The Length Of The Pendant
Smaller foresails such a cruising (working) jib will have a higher clew, giving better visibility under the sail, easier passage over the guard rail and less exposure to waves breaking over the foredeck in heavy weather. This type of sail often requires less adjustment of the sheeting position when reefed (See Chapter 12, ”Reefing”). -
Page 32: Operating Manual
OPERATING MANUAL To derive the maximum benefit and enjoyment from your Furlex-system, we recommend that you study this operating manual carefully. All safety-related information is indicated by the following symbol. Furlex is specified and manufactured using Metric dimensions. To assist owners unfamiliar with this system, the approximate equivalent Imperial dimension are given in brackets. -
Page 33: Halyard Routing
10 Halyard Routing 10.1 Summary IMPORTANT POINTS! Routing the halyard is one of the most important aspects of system assembly for safe, trouble- … free sailing using the jib furling and reefing system. The angle between the halyard and the forestay must be 5–10°. See fig. 5.4.b. If the angle is less, …... -
Page 34: Halyard Sheave Box
10.2 Halyard sheave box A sheave box can also be fitted to the mast to meet the 5–10° requirement. The sheave box will not damage the halyard, nor is it worn by the wire. Installation is more complicated but the box will eliminate the need to replace the halyard leads in future as above. -
Page 35: Sailing With Furlex
11 Sailing with Furlex 11.1 To hoist the sail The forestay must be properly tensioned each time the sail is hoisted. You should therefore tension the backstay and any running backstays before hoisting the sail. After the sail i hoisted, the back stay or running back stay tension can be relaxed again as required. -
Page 36: Unfurling The Sail
8. Hoisting the sail in the correct groove through the sail feeder. If the furling line exits on the ”port side” of the line drum, the sail should be hoisted in the ”starboard groove”. If the line exits on the ”star board side”, use the ”port groove”. Hoisting the sail in the ”correct” groove reduces initial resistance when furling the sail, which then has less of a ”fold”... -
Page 37: Furling The Sail
11.3 Furling the sail 1. Release the windward sheet and ensure that it can run freely. 2. Furl the sail by pulling the furling line. Release the leeward sheet but keep a little tension on it, for example by placing a turn around a winch. It is important to furl the sail tightly and evenly, as a sail which is furled too loosely can blow out a little in strong winds. -
Page 38: Reefing
12 Reefing The size of the working sail area is infinitely variable with a jib furling and reefing system. Even if the sail is designed as a furling sail incorporating foam etc. and the Furlex-system is equipped with a ”free turn”... -
Page 39: Setting A Reefed Sail From The Furled Position
12.3 Setting a reefed sail from the furled position You will achieve the best sail shape by first unfurling the sail completely and then reefing down … to the appropriate size. Pull in the furling line and keep the sheet well tensioned. The sail will then form a tight roll and its shape will be improved. -
Page 40: Furlex For Racing
13 Furlex for racing Many racing yachtsmen have exploited the advantages of the jib furling and reefing system … with great success. The sail can be partly furled before the start, giving good visibility and easy manoeuvring of the boat. Just before starting, the sail is unfurled and the boat crosses the line under full sail. -
Page 41: Adjusting The Forestay Length
14 Adjusting the forestay length The Furlex 400 S and 500 S may be supplied with or without an integral rigging screw. 14.1 Furlex with rigging screw On a system with an integral rigging screw, the forestay length can be adjusted. This is the primary task of the rigging screw. -
Page 42: Rigging Screw Adjustment
7. Re-adjust so that the flat faces (fig. 14.1.c) of the wire terminal and rigging screw body are aligned. 8. 400 S - Ø 12: Fit the adapter over the rigging screw if used. See chapter 18.2, page 20. 9. -
Page 43: Maintenance Of The Furlex-System
15 Maintenance of the Furlex-system To ensure that the system rotates easily and functions satisfactorily year after year, regular maintenance should be carried out. This should be done once a year, or perhaps when the boat is unrigged at the end of each season. -
Page 44: Cleaning The Furlex
15.3 Cleaning the Furlex Wash and rinse the entire Furlex-system with fresh water and a mild detergent to remove dirt and salt crystals. Note! Some detergents contain substances which can cause aluminium to corrode, so it is important to rinse all detergent off thoroughly. When the parts have dried, the anodized surfaces of the luff extrusions can be treated with a silicon- free boat polish or wax. -
Page 45: Rigging
16 Rigging The Furlex-system is best transported and rigged together with the mast. 16.1 Fitting the Furlex on a stepped mast 1. Slacken the backstay as much as possible, but make sure that any rigging screw is not unscrewed so far that the threads are no longer visible ”on the inside”. 2. -
Page 46: Stepping The Mast With Furlex Fitted
16.2 Stepping the mast with Furlex fitted Fig. 16.2.a 1. Lay the mast with the front uppermost. 2. Connect the top end of the Furlex-system to the forestay attachment. 3. Lift the mast with the Furlex-system lying on the leading edge of the mast. 4. -
Page 47: Lineguide
Re-installing the sail feeder: Fig. 17.2.d Fig. 17.2.e Press on the sail feeder connector from the front of the luff extrusion. Clip the sail feeder into the Press the clips of the bottom part in so that these top edge. snap firmly into the sailfeeder connector’s seat. -
Page 48: Line Drum
17.4 Line drum 1. Dismantle the line drum halves individually by loosening the 2 screws. Fig. 17.4.a Reassembly see Chapter. 4.3.1–4.3.3. 17.5 Lower bearing assembly Tools: Allen keys spanners 10 mm (3/8”). Fig. 17.5.a 1 pair of long-nosed pliers 2 wrenches 1. -
Page 49: Wire Terminal
17.6 Wire terminal 1. Remove the terminal part (or rigging screw) from the socket. See fig. 17.5.b & fig. 4.2.a. 2. Remove the former from the bottom of the eye part. 3. Replace the terminal, then loosen it 2 turns. 4. -
Page 50: Trouble Shooting
4. Slide the wedge over the core of the wire again. 5. Hold the luff extrusion system firmly and pull the wire’s eye terminal. This will bring the forestay, support plug in the 1000 mm (39 3/8”) luff extrusion, joining sleeves and distance tubes out together, enabling the luff extrusions to be separated. - Page 51 Problem Probable cause Action • The furling line has become tangled • Unfurl the sail and take it down. on the drum. Rewind the furling line. Unfurl with slight drag on the furling line in future and avoid having too much line on the drum. • The line guide fitting chafes against • Loosen the fastening screw below the the drum. drum and adjust the fitting. • The halyard swivel is upside down.
-
Page 52: Checklist
19 Checklist Go through the checklist below and make sure that all the important instructions have been carried out. This will ensure that the Furlex-system functions safely and reliably under all conditions. 19.1 Points to check before sailing Chapter Check that the angle between the halyard and forestay is 5–10° when the sail is hoisted.
